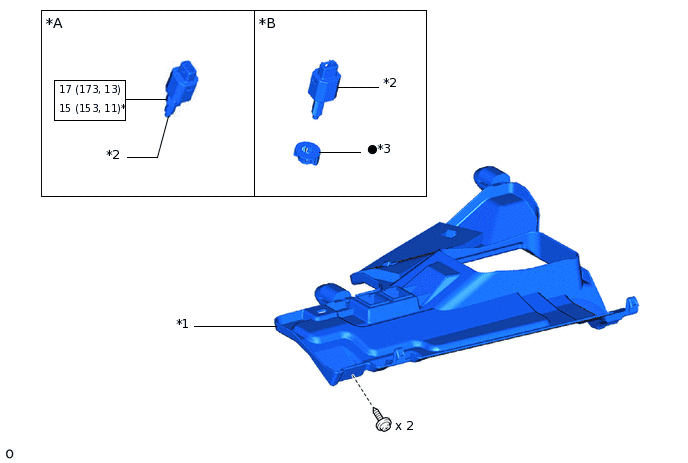

STOP LIGHT SWITCH COMPONENTS

*A	for LHD	*B	for RHD
*1	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	*2	STOP LIGHT SWITCH ASSEMBLY
*3	STOP LIGHT SWITCH MOUNTING ADJUSTER	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part
*	For use with union nut wrench	-	-

*A

for LHD

*B

for RHD

*1

NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

*2

STOP LIGHT SWITCH ASSEMBLY

*3

STOP LIGHT SWITCH MOUNTING ADJUSTER

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

*

For use with union nut wrench

-
