MAYDAY BATTERY REMOVAL

PROCEDURE

  1. REMOVE TELEMATICS TRANSCEIVER

    Click here

  2. REMOVE MOBILEPHONE BATTERY

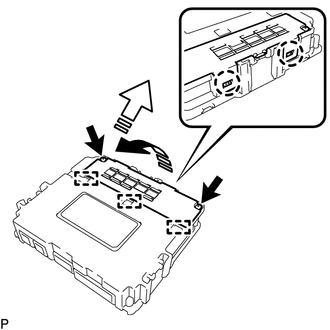

    1. E339902C01
      V113147

      Remove in this Direction (1)
      V113148

      Remove in this Direction (2)

      Remove the 2 screws.

      Tip:

      Remove the 2 screws together with the battery cover.

    2. Detach the 2 claws and 3 guides and remove the battery cover as shown in the illustration

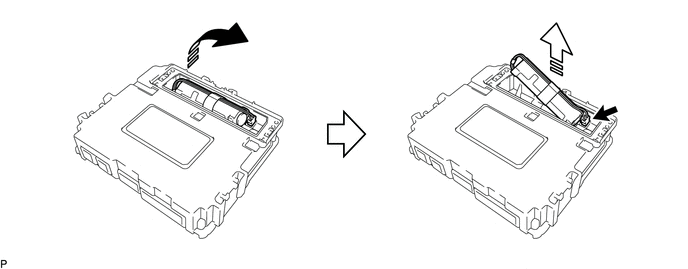

    3. Disconnect the connector and remove the mobilephone battery as shown in the illustration.

      E339904C01
      V113147

      Remove in this Direction (1)

      		 V113148

      Remove in this Direction (2)
