REAR SPOILER REMOVAL

PROCEDURE

  1. REMOVE BACK DOOR CENTER GARNISH

    Click here

  2. REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH (w/ Power Back Door)

    Click here

  3. REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH (w/ Power Back Door)

    Tip:

    Use the same procedure described for the LH side.

  4. REMOVE REAR SPOILER

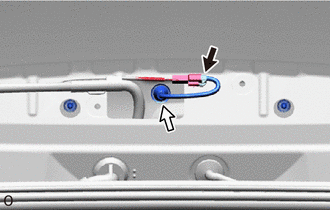

    1. B335686C01
      V100135

      Connector
      V100136

      Clamp

      Disconnect the connector and detach the clamp.

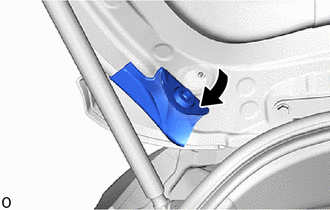

    2. B481174

      Fold back part of the back door glass channel LH as shown in the illustration.

      Note:

      It is not necessary to fully remove the back door channel LH. Partially remove it so that the rear spoiler can be removed in a later step.

      Tip:

      Use the same procedure for the other side.

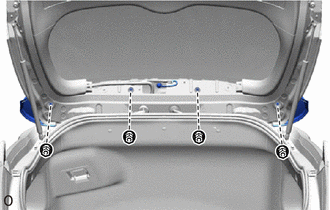

    3. B335683

      Remove the 4 nuts.

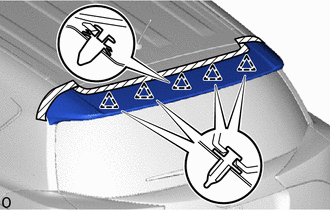

    4. B481175C01
      V100155

      Protective Tape

      Put protective tape around the rear spoiler.

    5. Detach the 5 clips and remove the rear spoiler.
