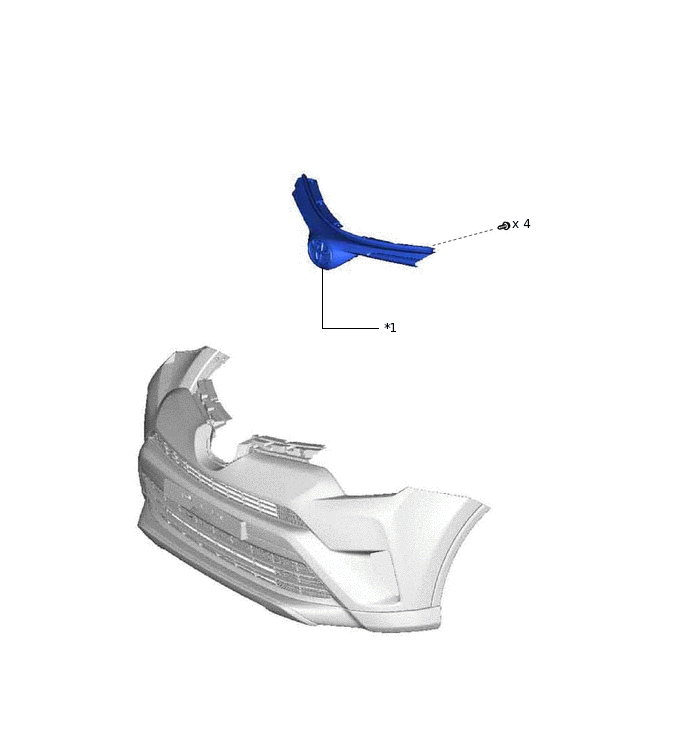

RADIATOR GRILLE COMPONENTS
ILLUSTRATION
*1 |
RADIATOR GRILLE SUB-ASSEMBLY |
- |
- |

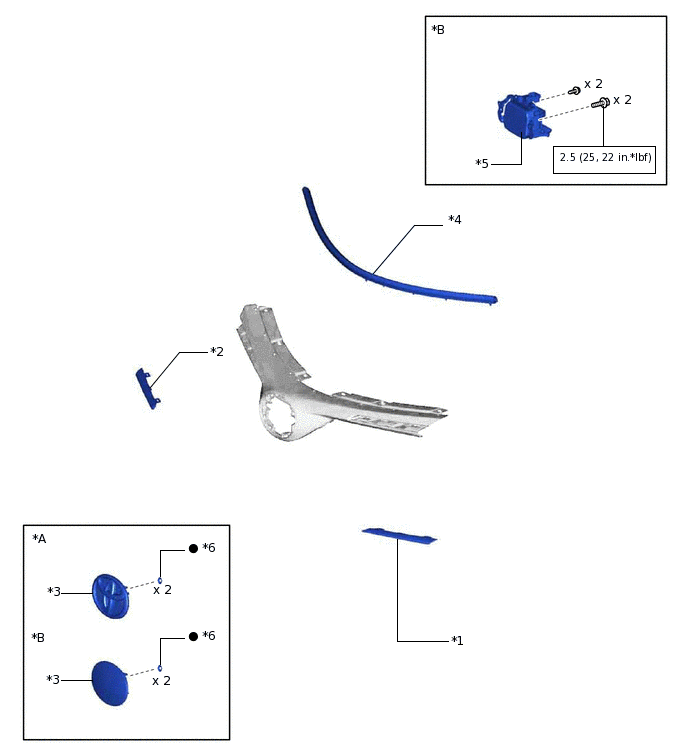

ILLUSTRATION
*A |
w/o Pre-crash Safety System |
*B |
w/ Pre-crash Safety System |
*1 |
CENTER RADIATOR GRILLE MOULDING LH |
*2 |
CENTER RADIATOR GRILLE MOULDING RH |
*3 |
FRONT BUMPER EMBLEM SUB-ASSEMBLY |
*4 |
HOOD TO FRONT END PANEL SEAL |
*5 |
MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
*6 |
SPRING NUT |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
