DIFFERENTIAL SYSTEM


  1. CONSTRUCTION


    1. Differential Pre-torque Mechanism


      1. A conical spring is provided between the side gear and the side gear washer in the differential. The load of the conical spring applies a friction force to the sliding area to improve the start off performance of the vehicle on slippery road surfaces.

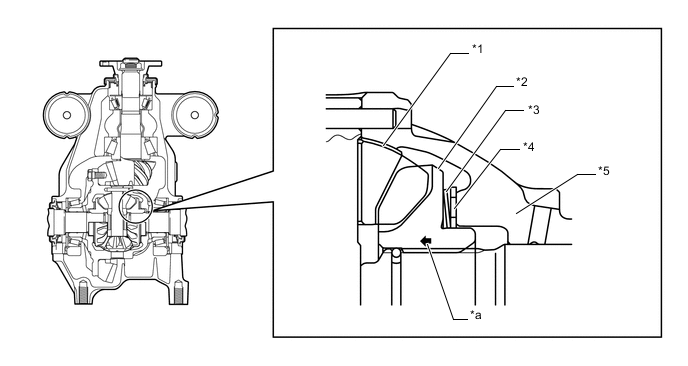

        A004GMXE03
        Text in Illustration
        *1 Pinion Gear Washer *2 Side Gear
        *3 Conical Spring *4 Side Gear Washer
        *5 Differential Case - -
        *a Conical Spring Force - -

    2. Differential Support


      1. Two mount points for the liquid-filled differential, at the front and one at the rear right, have been adopted to reduce vibration and noise.

        A004GWYE03
        Text in Illustration
        *a A - A Cross Section *b B - B Cross Section
        *c C - C Cross Section - -
        A004GY8 Liquid (Nonfreezing) A004GN9 Rubber
