AUDIO AND VISUAL SYSTEM(for Radio Receiver Type) Speaker Circuit

DTC Code DTC Name
Speaker Circuit

DESCRIPTION

The sound signals amplified by the radio receiver assembly are sent to the speakers from the radio receiver assembly via the speaker circuit.

If there is a short in a speaker circuit, the radio receiver assembly detects it and stops output to the speakers.

Thus sound cannot be heard from the speakers even if there is no malfunction in the radio receiver assembly or speakers.

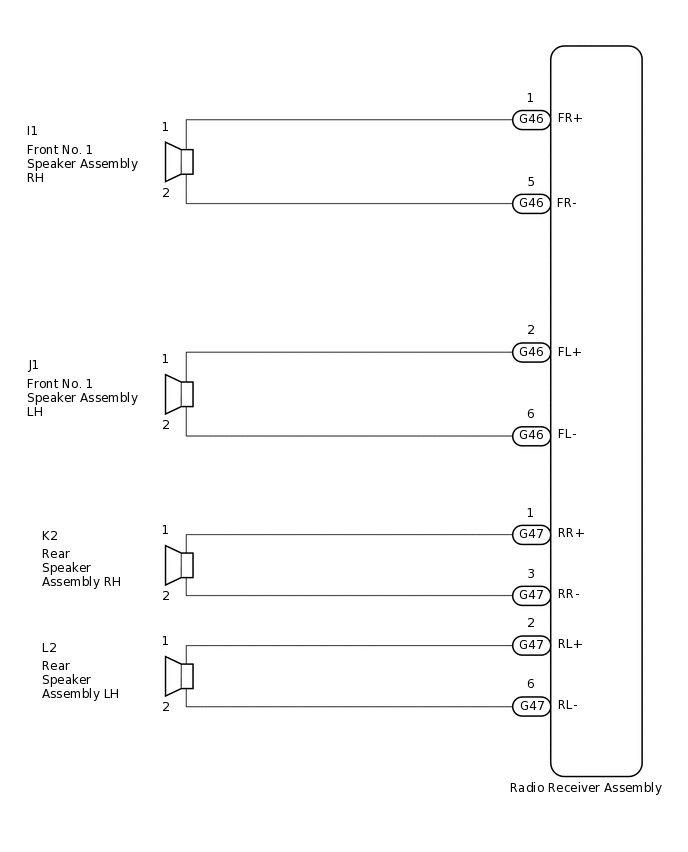

WIRING DIAGRAM

E342338E01

PROCEDURE

  1. CHECK HARNESS AND CONNECTOR (SPEAKER CIRCUIT)

    • *1: for RH Side

    • *2: for LH Side

    1. Disconnect the G46 and G47 radio receiver assembly connectors.

    2. Disconnect the I1*1 and/or J1*2 front No. 1 speaker assembly connector.

    3. Disconnect the K2*1 and/or L2*2 rear speaker assembly connector.

    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      G46-1 (FR+) - I1-1*1

      Always

      Below 1 Ω

      G46-5 (FR-) - I1-2*1

      Always

      Below 1 Ω

      G46-2 (FL+) - J1-1*2

      Always

      Below 1 Ω

      G46-6 (FL-) - J1-2*2

      Always

      Below 1 Ω

      G47-1 (RR+) - K2-1*1

      Always

      Below 1 Ω

      G47-3 (RR-) - K2-2*1

      Always

      Below 1 Ω

      G47-2 (RL+) - L2-1*2

      Always

      Below 1 Ω

      G47-6 (RL-) - L2-2*2

      Always

      Below 1 Ω

      G46-1 (FR+) - Body ground*1

      Always

      10 kΩ or higher

      G46-5 (FR-) - Body ground*1

      Always

      10 kΩ or higher

      G46-2 (FL+) - Body ground*2

      Always

      10 kΩ or higher

      G46-6 (FL-) - Body ground*2

      Always

      10 kΩ or higher

      G47-1 (RR+) - Body ground*1

      Always

      10 kΩ or higher

      G47-3 (RR-) - Body ground*1

      Always

      10 kΩ or higher

      G47-2 (RL+) - Body ground*2

      Always

      10 kΩ or higher

      G47-6 (RL-) - Body ground*2

      Always

      10 kΩ or higher

    Result

    Proceed to

    OK

    NG
    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  2. INSPECT FRONT NO. 1 SPEAKER ASSEMBLY

    • *1: for RH Side

    • *2: for LH Side

    1. Disconnect the I1*1 and/or J1*2 front No. 1 speaker assembly connector.

    2. Inspect the front No. 1 speaker assembly.

      Click here

    Result

    Proceed to

    OK

    NG
    NG

    REPLACE FRONT NO. 1 SPEAKER ASSEMBLY

    Click here

    OK

  3. INSPECT REAR SPEAKER ASSEMBLY

    • *1: for RH Side

    • *2: for LH Side

    1. Disconnect the K2*1 and/or L2*2 rear speaker assembly connector.

    2. Inspect the rear speaker assembly.

      Click here

    Result

    Proceed to

    OK

    NG
    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

    Click here

    NG

    REPLACE REAR SPEAKER ASSEMBLY

    Click here
