OUTER REAR VIEW MIRROR COMPONENTS

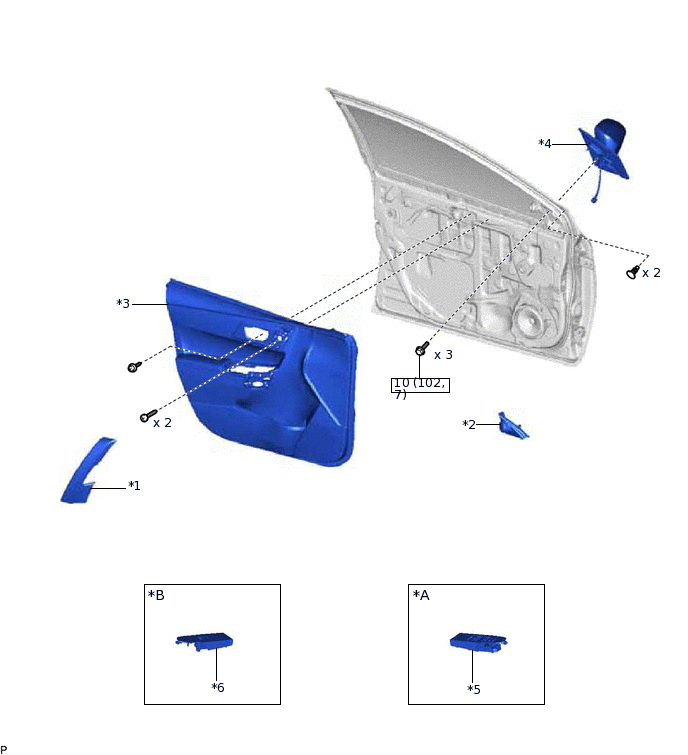

ILLUSTRATION

B330977C01

*A

for Driver Side

*B

for Front Passenger Side

*1

DOOR ASSIST GRIP ASSEMBLY

*2

FRONT DOOR LOWER FRAME BRACKET GARNISH

*3

FRONT DOOR TRIM BOARD SUB-ASSEMBLY

*4

OUTER REAR VIEW MIRROR ASSEMBLY WITH COVER

*5

POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

*6

POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

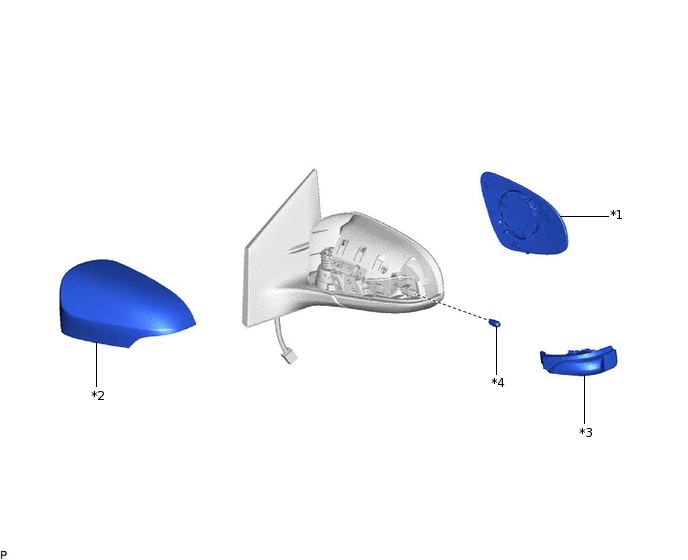

ILLUSTRATION

B330978C01

*1

OUTER MIRROR

*2

OUTER MIRROR COVER

*3

SIDE TURN SIGNAL LIGHT ASSEMBLY

*4

SIDE TURN SIGNAL LIGHT BULB
