SFI SYSTEM

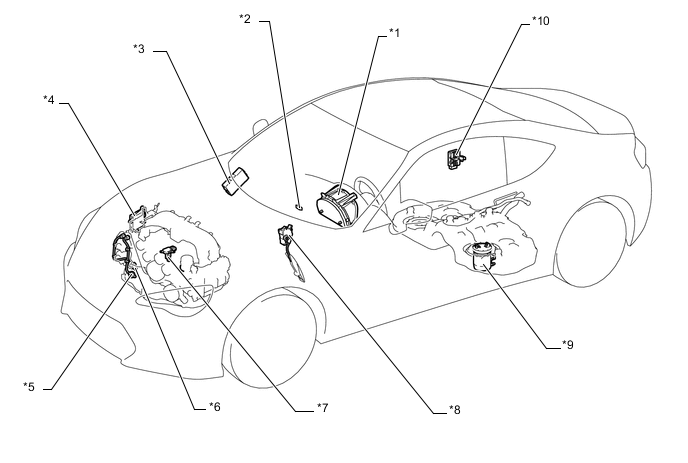

| *1 | Combination Meter Assembly | *2 | DLC3 |
| *3 | ECM | *4 | Injector Driver (EDU) |
| *5 | Wide Range Air Fuel Ratio Sensor | *6 | Oxygen Sensor |
| *7 | Intake Mass Air Flow Meter Sub-assembly | *8 | Accelerator Pedal Sensor Assembly |
| *9 | Fuel Suction Tube with Pump and Gage Assembly | *10 | Fuel Pump Control ECU Assembly |

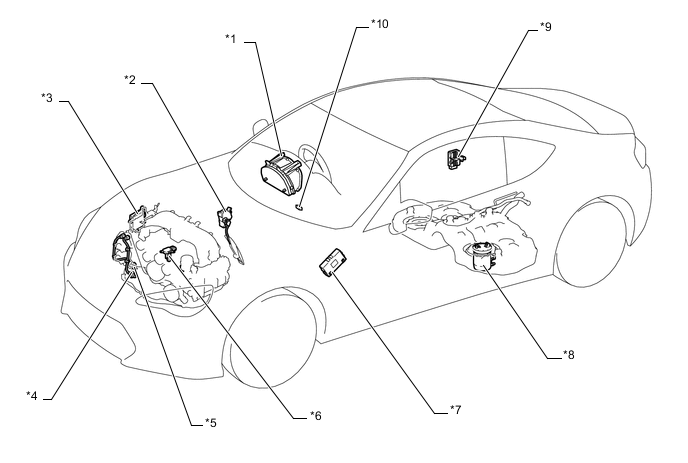

| *1 | Combination Meter Assembly | *2 | Accelerator Pedal Sensor Assembly |
| *3 | Injector Driver (EDU) | *4 | Wide Range Air Fuel Ratio Sensor |
| *5 | Oxygen Sensor | *6 | Intake Mass Air Flow Meter Sub-assembly |
| *7 | ECM | *8 | Fuel Suction Tube with Pump and Gage Assembly |
| *9 | Fuel Pump Control ECU Assembly | *10 | DLC3 |

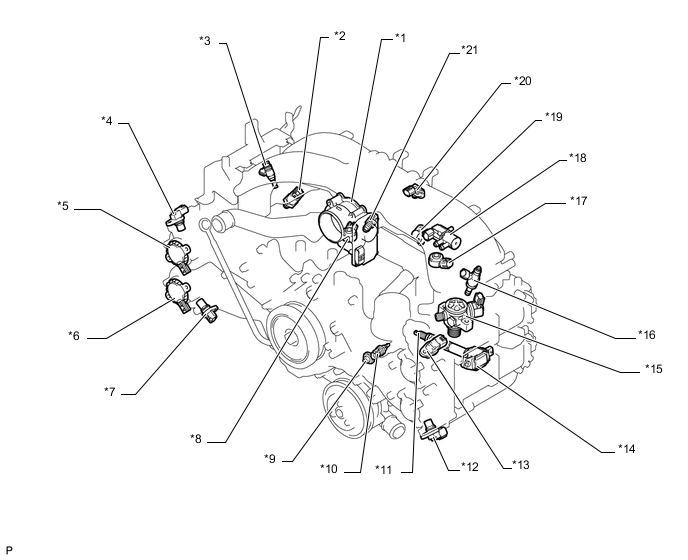

| *1 | Throttle Body with Motor Assembly - Throttle Position Sensor - Throttle Control Motor |
*2 | Fuel Pressure Sensor (for High Pressure) |
| *3 | Fuel Injector Assembly (for Port Injection) | *4 | Camshaft Position Sensor (RH, Intake) |
| *5 | Cam Timing Oil Control Valve Assembly (Intake) | *6 | Cam Timing Oil Control Valve Assembly (Exhaust) |
| *7 | Camshaft Position Sensor (RH, Exhaust) | *8 | Knock Control Sensor (RH) |
| *9 | Engine Oil Pressure Switch Assembly | *10 | Oil Temperature Sensor |
| *11 | Spark Plug | *12 | Camshaft Position Sensor (LH, Exhaust) |
| *13 | Camshaft Position Sensor (LH, Intake) | *14 | Ignition Coil Assembly |
| *15 | Fuel Pump Assembly (for High Pressure) | *16 | Fuel Injector Assembly (for Direct Injection) |
| *17 | Knock Control Sensor (LH) | *18 | Vacuum Switching Valve Assembly |
| *19 | Crank Position Sensor | *20 | Air Pressure Sensor Assembly |
| *21 | E.F.I. Engine Coolant Temperature Sensor | - | - |
