SPIRAL CABLE(for Dual Type) REMOVAL

PROCEDURE

  1. PLACE FRONT WHEELS FACING STRAIGHT AHEAD

  2. REMOVE DECK BOARD ASSEMBLY

    Click here

  3. REMOVE BATTERY SERVICE COVER

    Click here

  4. PRECAUTION

    Note:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery negative (-) terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery negative (-) terminal notice before proceeding with work.

    Click hereClick hereClick hereClick here

  5. DISCONNECT CABLE FROM AUXILIARY BATTERY NEGATIVE TERMINAL

    CAUTION:

    Wait at least 90 seconds after disconnecting the cable from the auxiliary battery negative (-) terminal to disable the SRS system.

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  6. REMOVE STEERING WHEEL ASSEMBLY

    Click here

  7. REMOVE STEERING COLUMN COVER

    Click here

  8. REMOVE SPIRAL CABLE SUB-ASSEMBLY

    Note:

    • Do not replace the spiral cable with the battery connected and the power switch on (IG).

    • Do not rotate the spiral cable with the battery connected and the power switch on (IG).

    • Ensure that the steering wheel is installed and aligned straight when inspecting the steering sensor.

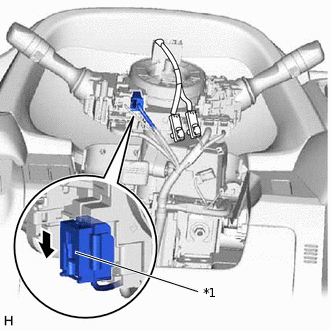

    1. B341165C02

      *1

      Slider

      Slide the slider to release the lock, and then disconnect the yellow airbag connector from the spiral cable sub-assembly.

      Note:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.

    2. Disconnect the connector from the spiral cable sub-assembly.

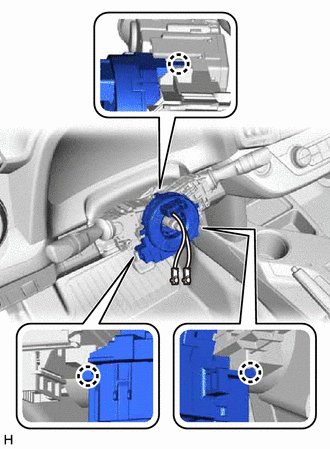

    3. B341169

      Detach the 3 claws to remove the spiral cable sub-assembly.
