COOLING SYSTEM


  1. OUTLINE


    1. The cooling system is a pressurized, forced-circulation type. The radiator reserve tank assembly is not pressurized.

    2. A bottom bypass format with a thermostat with a bypass valve positioned on the engine water pump assembly has been adopted.

    3. Cylinder head sub-assembly cooling has been improved, and the cylinder block's water temperature has been stabilized, by optimizing flow distribution with isolated cooling circuits for the cylinder block and cylinder head sub-assembly.

    4. The out end of the heater hose has had an air release valve installed to reduce the air reservoir.

    5. Automatic transmission vehicles are outfitted with transmission oil cooler assembly to raise the warm-up speed of the automatic transmission fluid, reduce automatic transmission friction, and improve fuel efficiency at low power unit temperatures.

    6. Toyota Genuine 50/50 Pre-mixed Super Long Life Coolant BLUE is used.

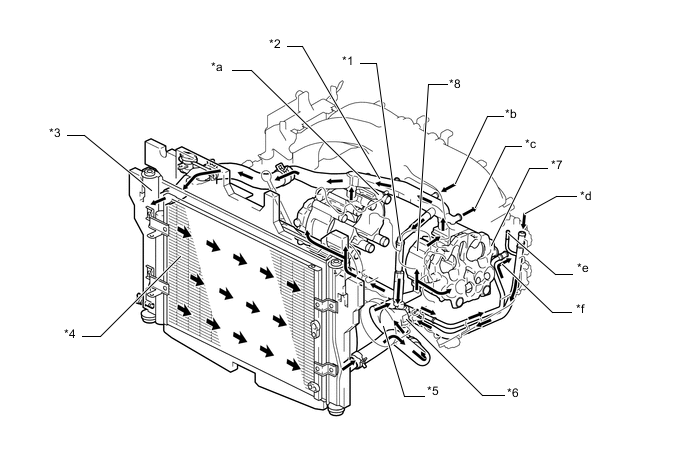

      A004GL7E04
      Text in Illustration
      *1 Bottom Bypass Line *2 Water Inlet Pipe
      *3 Radiator Assembly *4 Cooler Condenser Assembly
      *5 Engine Water Pump Assembly *6 Thermostat
      *7 Cylinder Head Sub-assembly *8 Cylinder Block Sub-assembly
      *a to Throttle Body with Motor Assembly *b from Transmission Oil Cooler Assembly
      *c to Heater Radiator Unit Sub-assembly *d from Heater Radiator Unit Sub-assembly
      *e from Throttle Body with Motor Assembly *f to Transmission Oil Cooler Assembly

  2. SPECIFICATION


    1. Engine Coolant


      1. Toyota Genuine 50/50 Pre-mixed Super Long Life Coolant BLUE is used. The maintenance intervals are as shown in the table below:

        Engine Coolant Type Toyota Genuine Super Long Life Coolant (SLLC) or similar high quality ethylene glycol based non-silicate, non-amine, non-nitrite and non-borate coolant with long-life hybrid organic acid technology (coolant with long-life hybrid organic acid technology is a combination of low phosphates and organic acids). Do not use plain water alone.
        Maintenance Intervals First Time 137500 miles (220000 km) or 11 years
        Subsequent Every 75000 miles (120000 km) or 6 years
        Color Blue

        Tech Tips

        SLLC is pre-mixed (50% coolant and 50% deionized water). Therefore, no dilution is needed when SLLC in the vehicle is added or replaced.

    2. Thermostat

      Thermostat Opening Temperature 86°C to 90°C (187°F to 194°F)
