СИСТЕМА СМАЗКИ


  1. OUTLINE


    1. The lubrication circuit is fully pressurized and all oil passes through an oil cooler and an oil filter.

    2. A trochoid oil pump driven by a gear engaged with the crankshaft is used.

    3. A water-cooled type engine oil cooler assembly is enclosed in the cylinder block.

    4. Piston oil jets that lubricate and cool the piston are provided.

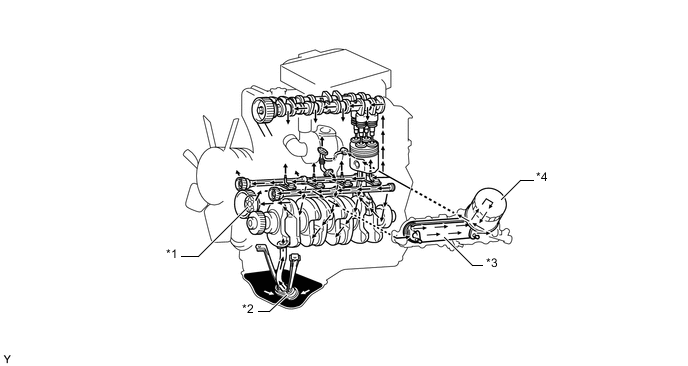

      B002NHFC01
      *1 Oil Pump *2 Oil Strainer
      *3 Oil Cooler Assembly *4 Oil Filter
