AIRBAG SYSTEM GENERAL


  1. OUTLINE


    1. The Supplemental Restraint System (SRS) driver and front passenger*1 airbags are used as supplements to the seat belts to help to reduce the shocks to the head and chest of the driver or front passenger*1 in the event of a frontal collision.

    2. The SRS front seat side airbag is used to help reduce the shocks to the heads and chests of the driver and front passenger in the event of a side collision.*2

    3. The SRS curtain shield airbag is used to help reduce the shocks to the heads and chests of the driver, front passenger, and outer rear passengers in the event of a side or rear side collision.*2


      • *1: Models with SRS front passenger airbag

      • *2: Models with SRS curtain shield airbag

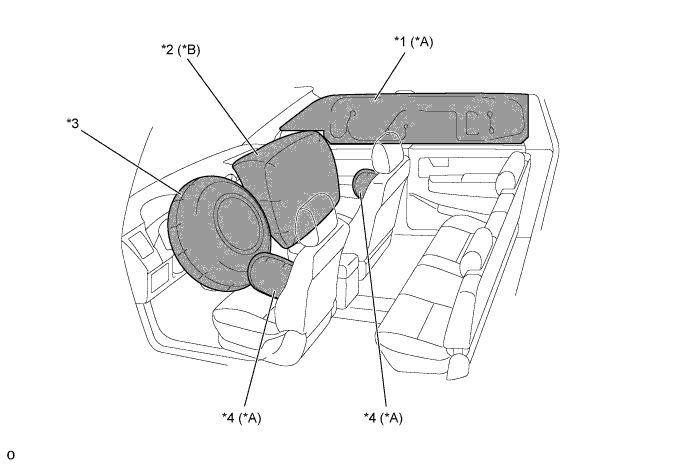

      A01EZRWE01
      Text in Illustration
      *A Models with SRS Curtain Shield Airbag *B Models with SRS Front Passenger Airbag
      *1 SRS Curtain Shield Airbag *2 SRS Front Passenger Airbag
      *3 SRS Driver Airbag *4 SRS Front Seat Side Airbag
