SFI SYSTEM(w/ Canister Pump Module), Diagnostic DTC:P1604

DTC Code DTC Name
P1604 Startability Malfunction

DESCRIPTION

If the engine does not start or it takes a long time for the engine to start, despite the ECM receiving the engine start request signal from the hybrid vehicle control ECU via CAN communication, this DTC will be stored.

Read freeze frame data using the GTS. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was moving or stationary, whether the engine was warmed up or not, whether the air fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

P1604

Startability Malfunction

Either of the following conditions is met (1 trip detection logic):

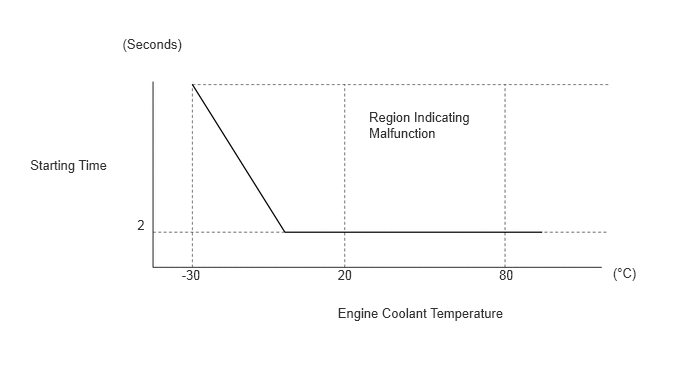

  • The engine speed is less than 500 rpm with the engine start signal on for a certain amount of time (refer to the illustration below)

  • After the engine starts (engine speed is 500 rpm or more), the engine speed drops to 200 rpm or less

-

Does not come on

DTC Stored

A220316E09

CAUTION / NOTICE / HINT

Tip:
  • In contrast to normal malfunction diagnosis for components, circuits and systems, DTC P1604 is used to determine the malfunctioning area from the problem symptoms and freeze frame data when the user mentions problems such as starting difficulty.

    As these DTCs can be stored as a result of certain user actions, even if these DTCs are output, if the customer makes no mention of problems, clear these DTCs without performing any troubleshooting and return the vehicle to the customer.

  • If any DTCs other than P1604 are output, troubleshoot those DTCs first.

  • Since DTC P1604 is different from other DTCs, the following procedure is shown as a reference.

  • Read freeze frame data using the GTS. Freeze frame data records engine conditions when a malfunction occurs. This information can be useful when troubleshooting.

  • When confirming the freeze frame data, be sure to check all 5 sets of freeze frame data.

    Click here

  • When confirming freeze frame data, if there are multiple items related to the cause of the malfunction, perform troubleshooting for all related items.

  • Try to start the vehicle under the conditions recorded in the freeze frame data which were present when the malfunction occurred. Confirm the data at this time and compare it with the freeze frame data.

  • If the malfunction does not reoccur, carefully check the vehicle conditions from when the malfunction occurred using freeze frame data.

  • When performing inspections, jiggle the relevant wire harnesses and connectors in an attempt to reproduce malfunctions that do not always occur.

PROCEDURE

  1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P1604)

    1. Connect the GTS to the DLC3.

    2. Turn the power switch on (IG).

    3. Turn the GTS on.

    4. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.

    5. Read the DTCs.

      Powertrain > Engine and ECT > Trouble Codes

      Result

      Result

      Proceed to

      DTC P1604 is output

      A

      DTC P1604 and other DTCs are output

      B

      Tip:

      If any DTCs other than P1604 are output, troubleshoot those DTCs first.

    B

    GO TO DTC CHART

    A
  2. CHECK FREEZE FRAME DATA

    1. Turn the GTS on.

    2. Check the following freeze frame data to see the state of the auxiliary battery when the freeze frame data was recorded.

      Table 1. Confirmation Item

      Battery Voltage

    3. Check the following freeze frame data to see if the engine was cranking when the freeze frame data was recorded.

      Table 2. Confirmation Item

      Engine Speed

      Engine Speed (Starter Off)

    4. Check the following freeze frame data to check temperature data recorded when the engine did not start normally.

      Table 3. Confirmation Item

      Coolant Temp

      Intake Air

      Engine Oil Temperature

      Ambient Temp for A/C

    5. Check the following freeze frame data to see the engine operating conditions recorded when the engine started.

      Table 4. Confirmation Item

      MAF

      Throttle Position

      ISC Flow

      ISC Position

      MAP

      EGR Step Position

    6. Check the following freeze frame data to see before the engine did not start normally.

      Table 5. Confirmation Item

      Run Dist of Previous Trip

      Previous Trip Intake Temp

      Previous Trip Eng Oil Temp

      Previous Trip Ambient Temp

    7. Use this information to perform a simulation test.

    8. Compare the "Normal Condition" information in the Data List table (reference values) with the freeze frame data listed above and with the simulation test results to determine the problem cause.

      Result

      Result

      Proceed to

      The problem cause can be determined

      A

      The problem cause cannot be determined

      B

    A

    REPAIR OR REPLACE MALFUNCTIONING PARTS

    B

    CHECK FOR INTERMITTENT PROBLEMS
