REAR SUSPENSION MEMBER COMPONENTS
ILLUSTRATION
*A |
for 2WD |
- |
- |
*1 |
REAR AXLE HUB AND BEARING ASSEMBLY LH |
*2 |
REAR DISC |
*3 |
REAR DISC BRAKE CALIPER ASSEMBLY LH |
*4 |
SKID CONTROL SENSOR WIRE LH |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

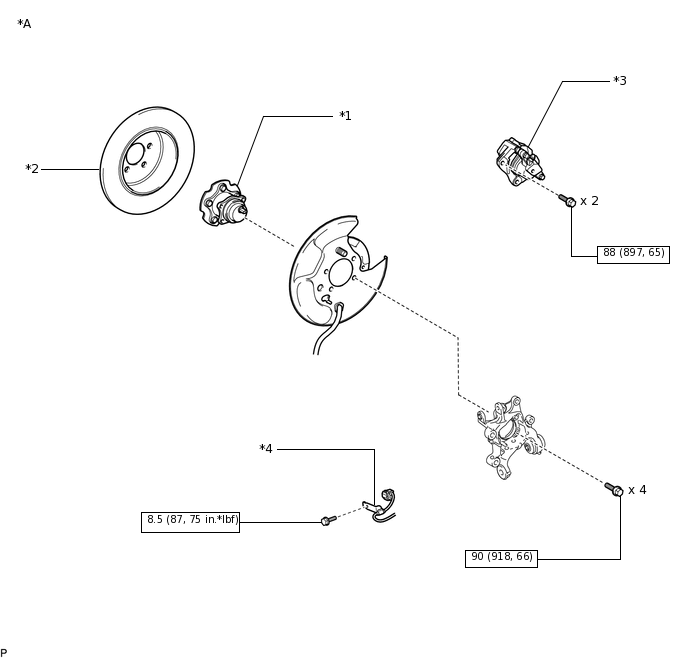

ILLUSTRATION
*A |
for 2WD |
- |
- |
*1 |
REAR AXLE HUB AND BEARING ASSEMBLY RH |
*2 |
REAR DISC |
*3 |
REAR DISC BRAKE CALIPER ASSEMBLY RH |
*4 |
SKID CONTROL SENSOR WIRE RH |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

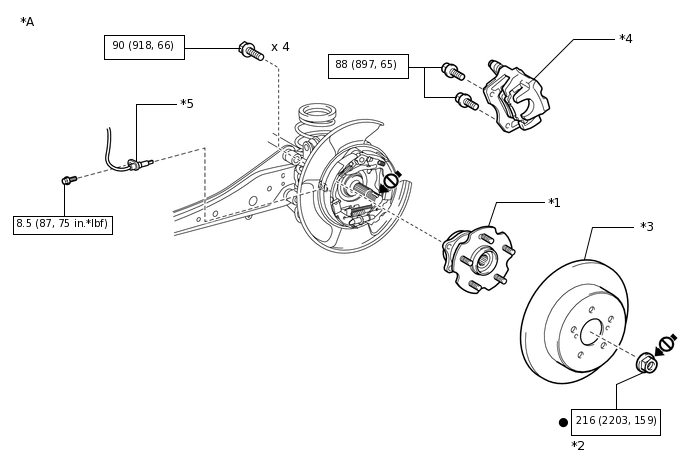

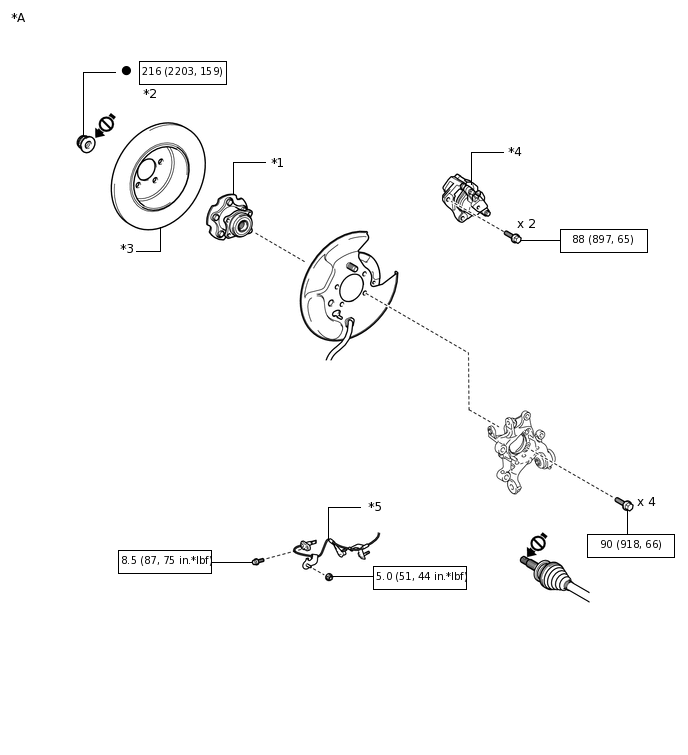

ILLUSTRATION
*A |
for AWD |
- |
- |
*1 |
REAR AXLE HUB AND BEARING ASSEMBLY LH |
*2 |
REAR AXLE SHAFT NUT LH |
*3 |
REAR DISC |
*4 |
REAR DISC BRAKE CALIPER ASSEMBLY LH |
*5 |
REAR SPEED SENSOR LH |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
 |
Do not apply lubricants to the threaded parts |
- |
- |

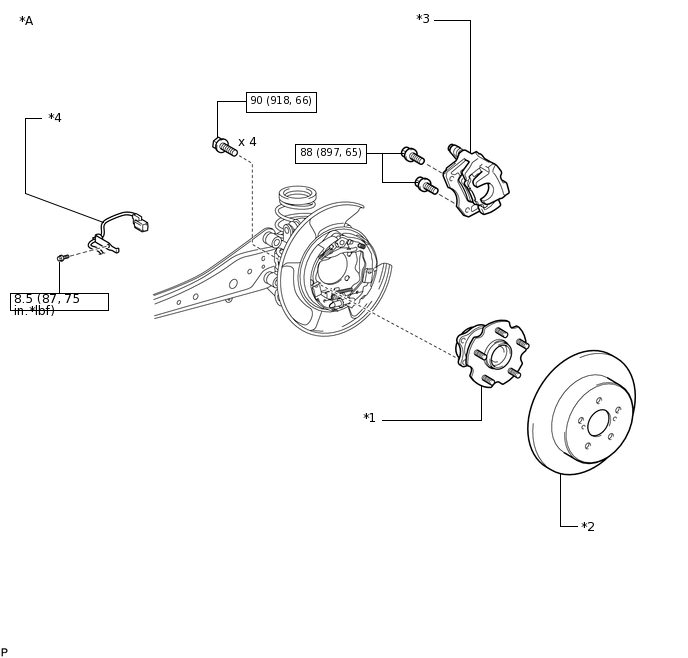

ILLUSTRATION
*A |
for AWD |
- |
- |
*1 |
REAR AXLE HUB AND BEARING ASSEMBLY RH |
*2 |
REAR AXLE SHAFT NUT RH |
*3 |
REAR DISC |
*4 |
REAR DISC BRAKE CALIPER ASSEMBLY RH |
*5 |
REAR SPEED SENSOR RH |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
|
Do not apply lubricants to the threaded parts |
- |
- |

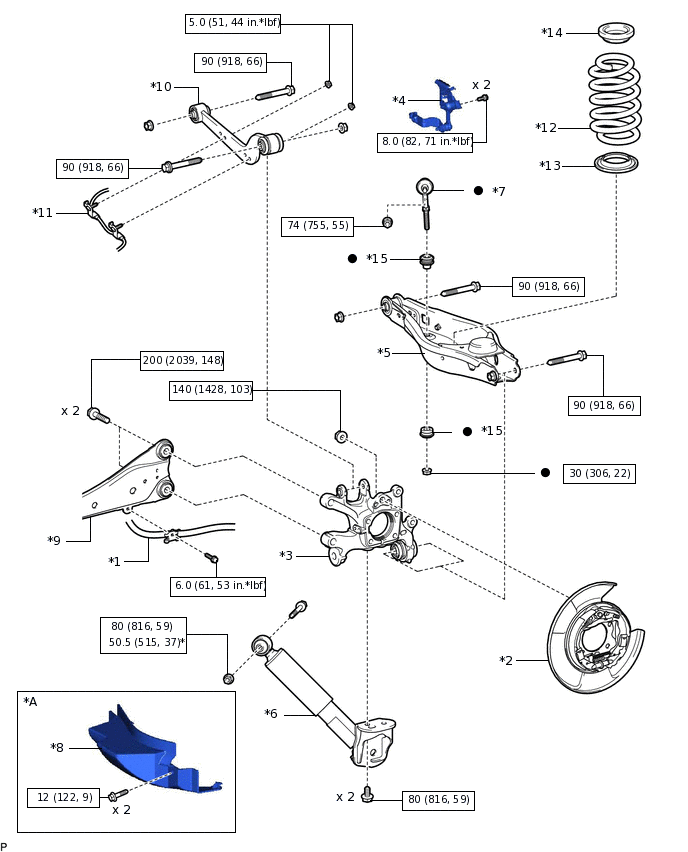

ILLUSTRATION
*A |
w/ Cover |
- |
- |
*1 |
NO. 3 PARKING BRAKE CABLE ASSEMBLY |
*2 |
PARKING BRAKE ASSEMBLY LH |
*3 |
REAR AXLE CARRIER SUB-ASSEMBLY LH |
*4 |
REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH |
*5 |
REAR NO. 2 SUSPENSION ARM ASSEMBLY LH |
*6 |
REAR SHOCK ABSORBER ASSEMBLY LH |
*7 |
REAR STABILIZER LINK ASSEMBLY LH |
*8 |
REAR SUSPENSION ARM COVER LH |
*9 |
REAR TRAILING ARM ASSEMBLY LH |
*10 |
REAR UPPER CONTROL ARM ASSEMBLY LH |
*11 |
SKID CONTROL SENSOR WIRE LH |
*12 |
REAR COIL SPRING LH |
*13 |
REAR LOWER COIL SPRING INSULATOR LH |
*14 |
REAR UPPER COIL SPRING INSULATOR LH |
*15 |
REAR STABILIZER CUSHION |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

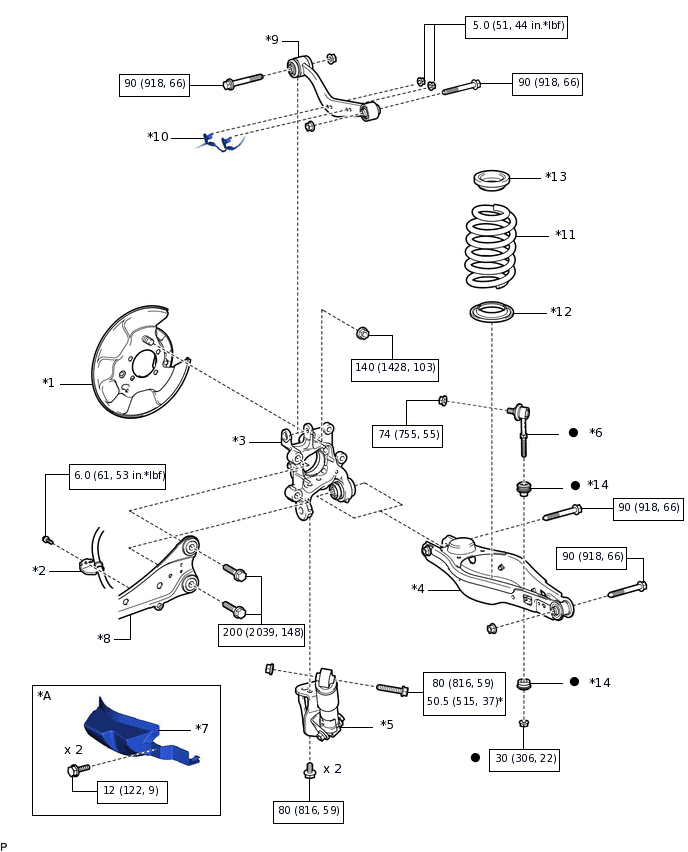

ILLUSTRATION
*A |
w/ Cover |
- |
- |
*1 |
PARKING BRAKE ASSEMBLY RH |
*2 |
NO. 2 PARKING BRAKE CABLE ASSEMBLY |
*3 |
REAR AXLE CARRIER SUB-ASSEMBLY RH |
*4 |
REAR NO. 2 SUSPENSION ARM ASSEMBLY RH |
*5 |
REAR SHOCK ABSORBER ASSEMBLY RH |
*6 |
REAR STABILIZER LINK ASSEMBLY RH |
*7 |
REAR SUSPENSION ARM COVER RH |
*8 |
REAR TRAILING ARM ASSEMBLY RH |
*9 |
REAR UPPER CONTROL ARM ASSEMBLY RH |
*10 |
SKID CONTROL SENSOR WIRE RH |
*11 |
REAR COIL SPRING RH |
*12 |
REAR LOWER COIL SPRING INSULATOR RH |
*13 |
REAR UPPER COIL SPRING INSULATOR RH |
*14 |
REAR STABILIZER CUSHION |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

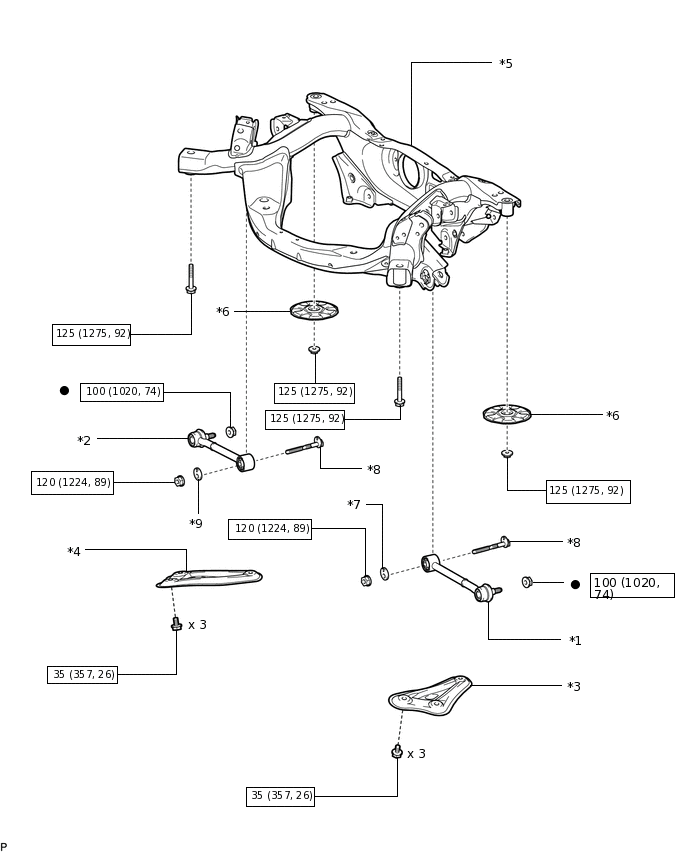

ILLUSTRATION
*1 |
REAR NO. 1 SUSPENSION ARM ASSEMBLY LH |
*2 |
REAR NO. 1 SUSPENSION ARM ASSEMBLY RH |
*3 |
REAR SUSPENSION MEMBER BRACE LH |
*4 |
REAR SUSPENSION MEMBER BRACE RH |
*5 |
REAR SUSPENSION MEMBER SUB-ASSEMBLY |
*6 |
REAR UPPER BODY MOUNTING CUSHION SUB-ASSEMBLY |
*7 |
NO. 2 CAMBER ADJUST CAM |
*8 |
REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

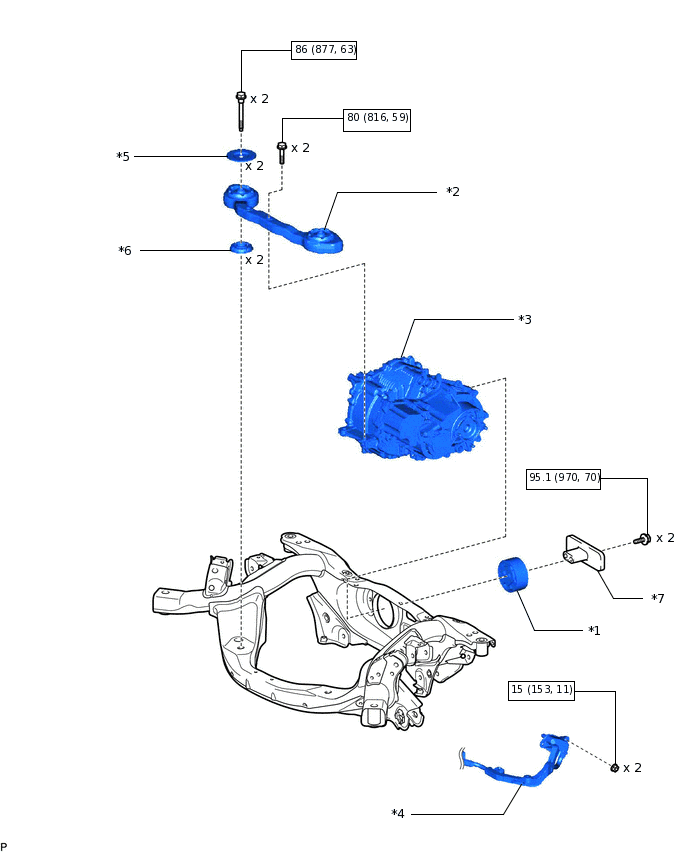

ILLUSTRATION
*A |
for AWD |
- |
- |
*1 |
DIFFERENTIAL MOUNT CUSHION |
*2 |
FRONT DIFFERENTIAL SUPPORT ASSEMBLY |
*3 |
REAR TRACTION WITH TRANSAXLE MOTOR ASSEMBLY |
*4 |
NO. 2 FRAME WIRE |
*5 |
UPPER DIFFERENTIAL MOUNT STOPPER |
*6 |
LOWER DIFFERENTIAL MOUNT STOPPER |
*7 |
DIFFERENTIAL DYNAMIC DAMPER |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

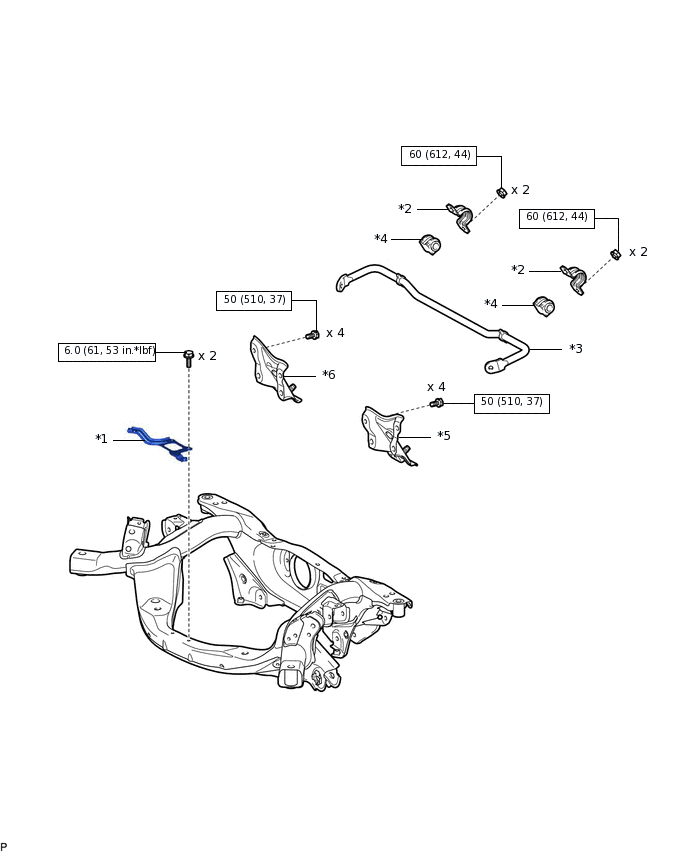

ILLUSTRATION
*1 |
CABLE SUPPORT BRACKET |
*2 |
REAR NO. 1 STABILIZER BAR BRACKET |
*3 |
REAR STABILIZER BAR |
*4 |
REAR STABILIZER BUSHING |
*5 |
REAR STABILIZER SUPPORT BRACKET LH |
*6 |
REAR STABILIZER SUPPORT BRACKET RH |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
