AIRBAG SYSTEM PARTS LOCATION

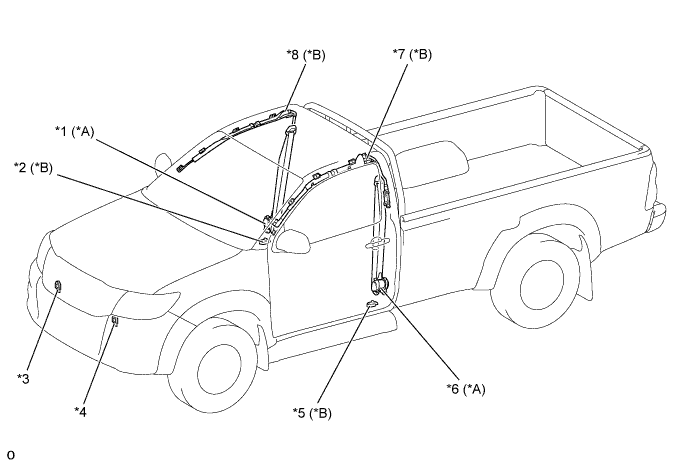

| *A | Models with Front Seat Belt Pretensioner | *B | Models with SRS Curtain Shield Airbag |
| *1 | Front Seat Outer Belt RH (Pretensioner Squib) | *2 | Side Airbag Sensor Assembly RH |
| *3 | Front Airbag Sensor RH | *4 | Front Airbag Sensor LH |
| *5 | Side Airbag Sensor Assembly LH | *6 | Front Seat Outer Belt LH (Pretensioner Squib) |
| *7 | Curtain Shield Airbag Assembly LH | *8 | Curtain Shield Airbag Assembly RH |

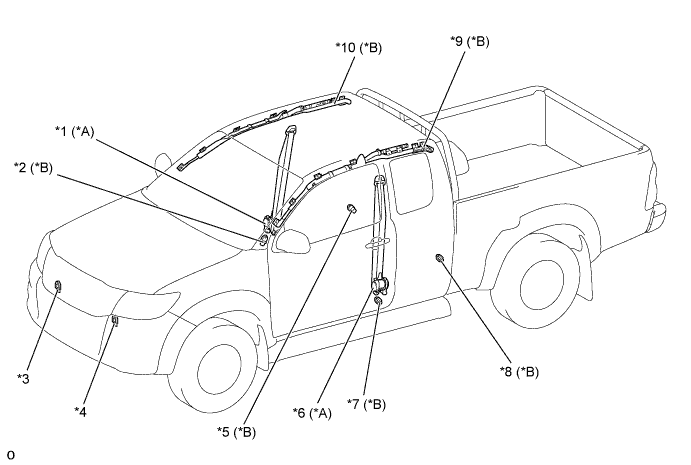

| *A | Models with Front Seat Belt Pretensioner | *B | Models with SRS Curtain Shield Airbag |
| *1 | Front Seat Outer Belt RH (Pretensioner Squib) | *2 | Side Airbag Sensor Assembly RH |
| *3 | Front Airbag Sensor RH | *4 | Front Airbag Sensor LH |
| *5 | Rear Side Airbag Sensor RH | *6 | Front Seat Outer Belt LH (Pretensioner Squib) |
| *7 | Side Airbag Sensor Assembly LH | *8 | Rear Side Airbag Sensor LH |
| *9 | Curtain Shield Airbag Assembly LH | *10 | Curtain Shield Airbag Assembly RH |

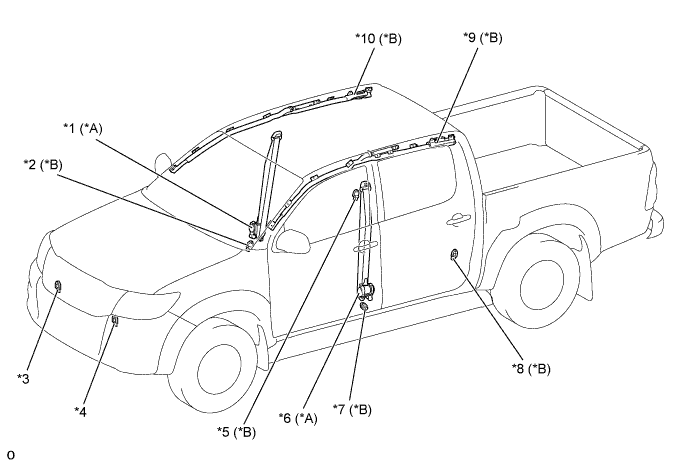

| *A | Models with Front Seat Belt Pretensioner | *B | Models with SRS Curtain Shield Airbag |
| *1 | Front Seat Outer Belt RH (Pretensioner Squib) | *2 | Side Airbag Sensor Assembly RH |
| *3 | Front Airbag Sensor RH | *4 | Front Airbag Sensor LH |
| *5 | Rear Side Airbag Sensor RH | *6 | Front Seat Outer Belt LH (Pretensioner Squib) |
| *7 | Side Airbag Sensor Assembly LH | *8 | Rear Side Airbag Sensor LH |
| *9 | Curtain Shield Airbag Assembly LH | *10 | Curtain Shield Airbag Assembly RH |

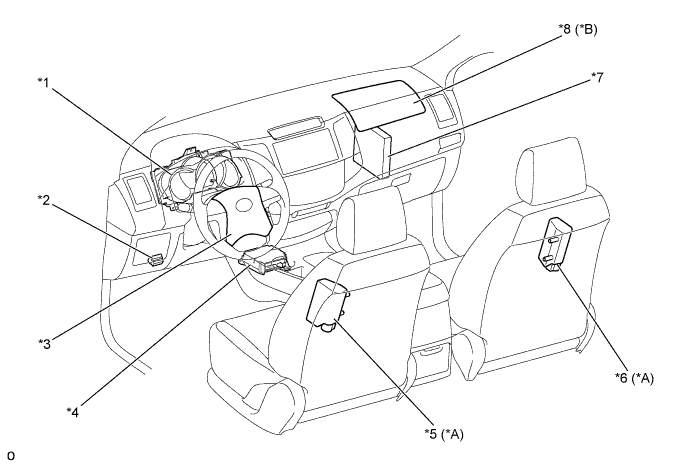

| *A | Models with SRS Curtain Shield Airbag | *B | Models with SRS Front Passenger Airbag |
| *1 | Combination Meter Assembly - SRS Warning Light |
*2 | DLC3 |
| *3 | Steering Pad (Driver Side Squib) | *4 | Center Airbag Sensor Assembly |
| *5 | Front Seat Side Airbag Assembly LH | *6 | Front Seat Side Airbag Assembly RH |
| *7 | ECM | *8 | Front Passenger Airbag Assembly |
