AUDIO AND VISUAL SYSTEM GENERAL


  1. OUTLINE


    1. Audio System


      1. The audio systems shown below are provided:

        Audio System Audio Head Unit Speaker
        Base Audio System Radio Receiver Assembly 2 Speakers
        4 Speakers
        6 Speakers
        Display Audio System Radio and Display Receiver Assembly 2 Speakers
        6 Speakers
        Navigation System Display and Navigation Module Display 6 Speakers

    2. Audio Head Unit


      1. The radio receiver assembly has an improved design that better matches the interior of the vehicle. A USB/AUX port has also been included.

      2. A high-definition Wide Video Graphics Array (WVGA) screen is used for both the radio and display receiver assembly and the display and navigation module display. The WVGA screen supports flick operation.

      3. Discs containing MPEG audio layer-3 (MP3) files, Windows Media Audio (WMA) files and Advanced Audio Coding (AAC) files* can be played.


        • *: Models without base audio system

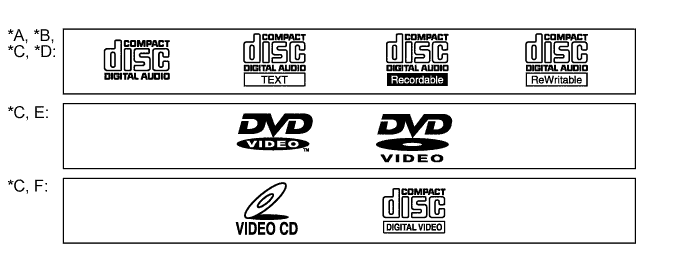

      4. Discs with the marks shown below can be played.

        A01EZ57E02
        Text in Illustration
        *A Models with Base Audio System *B Models with Display Audio System (CD Type)
        *C Models with Display Audio System (DVD Type) *D Models with Navigation System
        *E Except Models for Europe *F Models for ASEAN

    3. USB/AUX Port

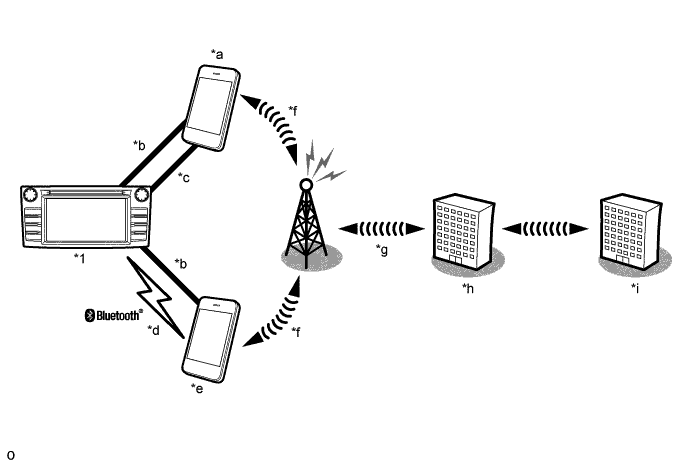

      1. A USB port is provided that enables the use of a USB memory stick, portable audio player (USB type), iPhone, iPod, iPod classic, iPod nano or iPod touch.

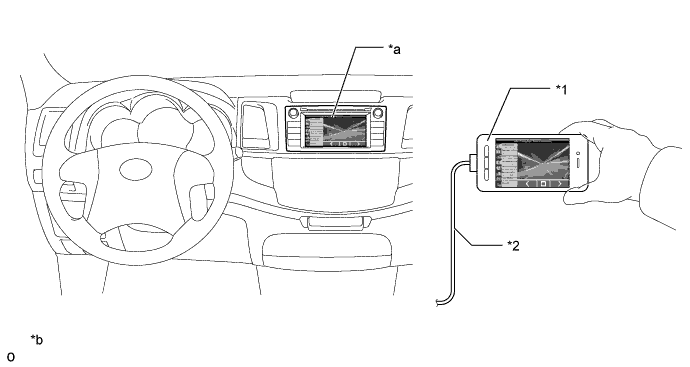

      2. Videos stored on a video capable device such as an iPod can be displayed on the multi-display by connecting the video capable device to the AUX port using a dedicated 4-pole AUX cable.

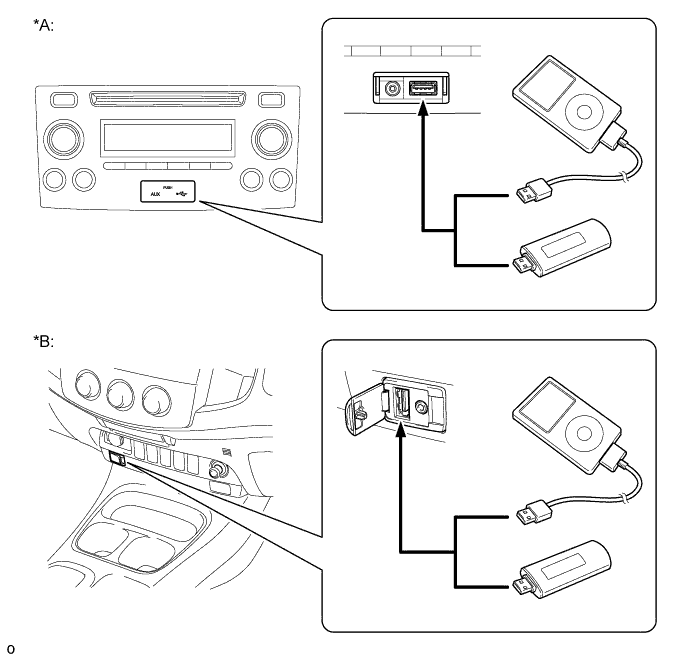

        A01EZD0E01
        Text in Illustration
        *A Models with Base Audio System *B Models with Display Audio System or Navigation System

        Tech Tips


        • In order to display video from an iPod, it is necessary to connect the iPod to the USB and AUX ports using a dedicated iPod video cable or dedicated 4-pole AUX cable and select "video sound input cable" from the "iPod settings" screen.

        • Depending on the specifications of the 4-pole AUX cable used to connect a video cable device such as an iPod or VTR, the video function may not operate correctly. Use a dedicated 4-pole AUX cable when using the video function.

        • iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

        • The following iPod, iPod nano, iPod classic, iPod touch and iPhone devices can be used with this audio system.


          • Models for

          • iPod touch (5th generation)

          • iPod touch (4th generation)

          • iPod touch (3rd generation)

          • iPod touch (2nd generation)

          • iPod touch (1st generation)

          • iPod classic

          • iPod with video

          • iPod nano (7th generation)

          • iPod nano (6th generation)

          • iPod nano (5th generation)

          • iPod nano (4th generation)

          • iPod nano (3rd generation)

          • iPod nano (2nd generation)

          • iPod nano (1st generation)

          • iPhone 5

          • iPhone 4S

          • iPhone 4

          • iPhone 3GS

          • iPhone 3G

          • iPhone

        • Depending on differences between models or software versions etc., some models might be incompatible with this audio system.

        • USB memory devices that meet the following specifications are supported:

          USB Communication Formats

          • USB 2.0, Full Speed (12 Mbps)

          • USB 2.0, High Speed (480 Mbps)*
          File System FAT 16/32
          Correspondence Class Mass Storage Class
          File Formats MP3, WMA, AAC*

          • *: Models without base audio system

    4. Bluetooth Audio System


      1. The Bluetooth audio system enables users to enjoy music played on a portable player from the vehicle speakers via wireless communication.

      2. The Bluetooth specifications and profiles required for operation are as follows:

        Specification/Profile Version
        Bluetooth Specification Version 1.1 or higher*1/Version 2.0 or higher*2, *3 Required
        Version 2.1 + EDR*1/3.0 + EDR*2, *3 or higher Recommended
        Profile Advanced Audio Distribution Profile (A2DP) Version 1.0 or higher Required
        Advanced Audio Distribution Profile (A2DP) Version 1.2 or higher Recommended
        Audio/Video Remote Control Profile (AVRCP) Version 1.0 or higher*1 Required
        Audio/Video Remote Control Profile (AVRCP) Version 1.1 or higher*2, *3 Required
        Audio/Video Remote Control Profile (AVRCP) Version 1.3 or higher*1 Recommended
        Audio/Video Remote Control Profile (AVRCP) Version 1.4 or higher*2, *3 Recommended

        • *1: Models with base audio system

        • *2: Models with display audio system

        • *3: Models with navigation system

    5. Bluetooth Hands-free System


      1. The Bluetooth hands-free system allows users to make or receive a call while keeping both hands on the steering wheel when the system is linked with a Bluetooth-compatible cellular phone.

      2. The Bluetooth specifications and profiles required for operation are as follows:

        Specification/Profile Version
        Bluetooth Specification Version 1.1 or higher*1/Version 2.0 or higher*2, *3 Required
        Version 2.1 + EDR*1/3.0 + EDR*2, *3 or higher Recommended
        Profile Hands Free Profile (HFP) Version 1.0 or higher Required
        Hands Free Profile (HFP) Version 1.6 or higher Recommended
        Message Access Profile (MAP) Version 1.0 or higher*4, *5 Recommended
        Serial Port Profile (SPP) Version 1.1 or higher*5 Recommended

        Tech Tips

        *1: Models with base audio system

        *2: Models with display audio system

        *3: Models with navigation system

        *4: Models for Europe

        *5: Models for Australia


        • The operation of the interrupt call function of the Bluetooth hands-free system may vary with the Bluetooth phone or the telephone company that is used.

          A01EZCF "Bluetooth" is a trademark owned by Bluetooth SIG, Inc.

        • Some profiles described above may not be supported by the system depending on the audio head unit that is equipped.

        • If the specification of the connected Bluetooth phone is lower than recommended or does not support the functions required, the available functions may be limited.

        • Registration and connection of a Bluetooth phone is not available when only Phone Book Access Profile (PBAP) is supported.

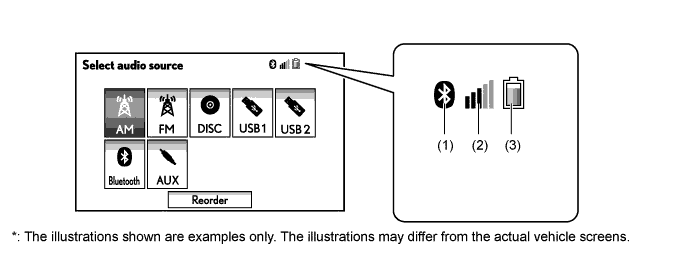

      3. The user can confirm the Bluetooth connection status, signal strength and remaining battery level of the connected Bluetooth phone by using the status icons displayed on the screen. The status icons are displayed in any mode.

        A01EZPRE03
        Item Outline
        (1) Bluetooth connection status Displays the Bluetooth connection status between the audio head unit and cellular phone.
        (2) Cellular phone signal strength* Displays the signal strength received by the cellular phone.
        (3) Cellular phone battery level* Displays the battery level of the Bluetooth connected cellular phone.

        Tech Tips

        *: May not be displayed depending on the Bluetooth specifications and profiles of the cellular phone.

    6. Automatic Sound Levelizer (ASL)


      1. The Automatic Sound Levelizer (ASL) function automatically adjusts the audio system volume level in order to compensate for increased vehicle noise (vehicle noise tends to increase as vehicle speed increases).


        • Vehicle speed signals are received from the combination meter assembly and used for ASL control.

    7. Steering Pad Switch Assembly


      1. Switches that the driver often uses are provided on the steering wheel for convenience.

  2. SPECIFICATION


    1. Audio System

      Models for Australia
      Audio Head Unit Design Specification

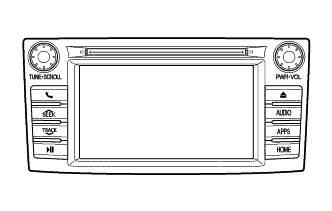

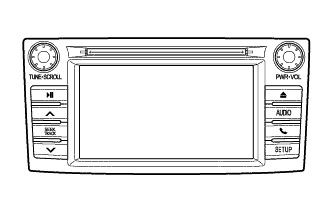

      Radio and Display Receiver Assembly A01EZGW A01EZQR

        Display Audio System:

      • 6.1-inch Display

      • AM/FM Tuner

      • CD Player

      • CD-TEXT Display Function

      • MP3, WMA and AAC Playback Function

      • iPod Operation Function

      • Stereo Jack Adapter (USB, AUX Port)

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • 2-speaker System

      • Manufacturer: FUJITSU TEN

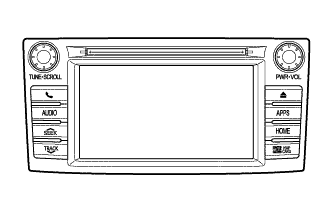

      Display and Navigation Module Display A01EZ7E

        Navigation System:

      • 6.1-inch Display

      • AM/FM Tuner

      • CD Player

      • CD-TEXT Display Function

      • MP3, WMA and AAC Playback Function

      • iPod Operation Function

      • Stereo Jack Adapter (USB, AUX Port)

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • 6-speaker System

      • Manufacturer: FUJITSU TEN
      Models for G.C.C. Countries:
      Audio Head Unit Design Specification

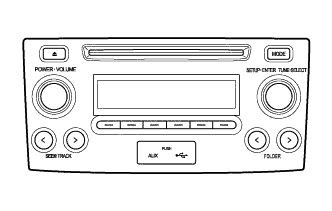

      Radio Receiver Assembly A01EZA5

        Base Audio System:

      • AM/FM Tuner

      • CD Player

      • CD-TEXT Display Function

      • MP3 and WMA Playback Function

      • iPod Operation Function

      • USB/AUX Port

      • 2-speaker System

      • Manufacturer: FUJITSU TEN

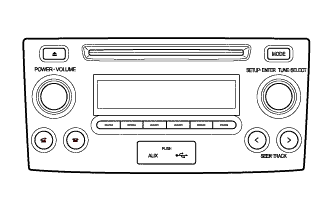

      A01EZ9G

        Base Audio System:

      • AM/FM Tuner

      • CD Player

      • CD-TEXT Display Function

      • MP3 and WMA Playback Function

      • iPod Operation Function

      • USB/AUX Port

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • 4-speaker System

      • Manufacturer: FUJITSU TEN

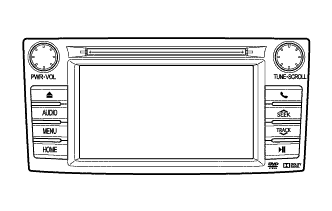

      Radio and Display Receiver Assembly A01EZOQ

        Display Audio System:

      • 6.1-inch Display

      • AM/FM Tuner

      • CD/DVD Player

      • CD-TEXT Display Function

      • MP3, WMA and AAC Playback Function

      • iPod Operation Function

      • Stereo Jack Adapter (USB, AUX Port)

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • 6-speaker System

      • Manufacturer: PIONEER
      Models for South Africa:*
      Audio Head Unit Design Specification

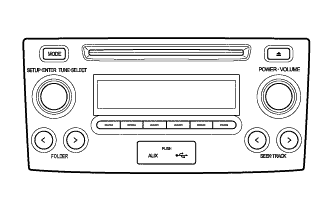

      Radio Receiver Assembly A01EZA5 A01EZ8D

        Base Audio System:

      • AM/FM Tuner

      • CD Player

      • CD-TEXT Display Function

      • MP3 and WMA Playback Function

      • iPod Operation Function

      • USB/AUX Port

      • 2-speaker System

      • Manufacturer: FUJITSU TEN

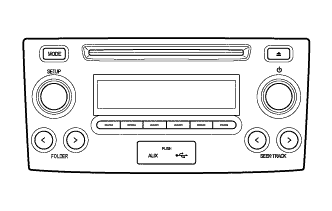

      A01EZO1

        Base Audio System:

      • AM/FM Tuner

      • Radio Data System (RDS)

      • CD Player

      • CD-TEXT Display Function

      • MP3 and WMA Playback Function

      • iPod Operation Function

      • USB/AUX Port

      • 2-speaker System

      • Manufacturer: FUJITSU TEN
      A01EZ9G

        Base Audio System:

      • AM/FM Tuner

      • CD Player

      • CD-TEXT Display Function

      • MP3 and WMA Playback Function

      • iPod Operation Function

      • USB/AUX Port

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • 2-speaker System

      • Manufacturer: FUJITSU TEN

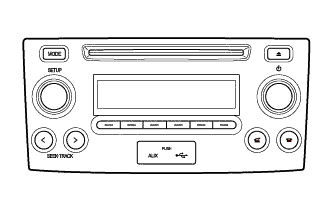

      Radio Receiver Assembly A01EZBS

        Base Audio System:

      • AM/FM Tuner

      • Radio Data System (RDS)

      • CD Player

      • CD-TEXT Display Function

      • MP3 and WMA Playback Function

      • iPod Operation Function

      • USB/AUX Port

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • 2-speake System

      • Manufacturer: FUJITSU TEN

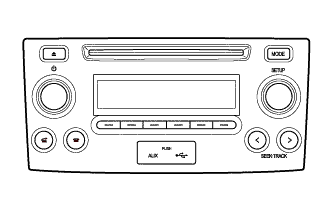

      A01EZBS A01EZ8T

        Base Audio System:

      • AM/FM Tuner

      • Radio Data System (RDS)

      • CD Player

      • CD-TEXT Display Function

      • MP3 and WMA Playback Function

      • iPod Operation Function

      • USB/AUX Port

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • 4-speaker System

      • Manufacturer: FUJITSU TEN

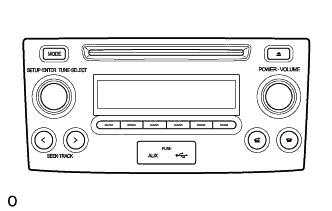

      A01EZ9G A01EZQ1

        Base Audio System:

      • AM/FM Tuner

      • CD Player

      • CD-TEXT Display Function

      • MP3 and WMA Playback Function

      • iPod Operation Function

      • USB/AUX Port

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • 6-speaker System

      • Manufacturer: FUJITSU TEN

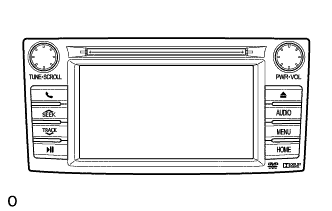

      Radio and Display Receiver Assembly A01EZKM

        Display Audio System:

      • 6.1-inch Display

      • AM/FM Tuner

      • Radio Data System (RDS)

      • CD/DVD Player

      • CD-TEXT Display Function

      • MP3, WMA and AAC Playback Function

      • iPod Operation Function

      • Stereo Jack Adapter (USB, AUX Port)

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • 6-speaker System

      • Manufacturer: PIONEER

      Tech Tips

      *: Including all destination packages

      Models for Europe:
      Audio Head Unit Design Specification
      Radio Receiver Assembly A01EZ8T

        Base Audio System:

      • AM/FM Tuner

      • Radio Data System (RDS)

      • CD Player

      • CD-TEXT Display Function

      • MP3 and WMA Playback Function

      • iPod Operation Function

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • 2-speaker System

      • Manufacturer: FUJITSU TEN

        Base Audio System:

      • AM/FM Tuner

      • Radio Data System (RDS)

      • CD Player

      • CD-TEXT Display Function

      • MP3 and WMA Playback Function

      • iPod Operation Function

      • USB/AUX Port

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • 4-speaker System

      • Manufacturer: FUJITSU TEN

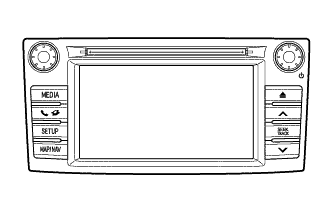

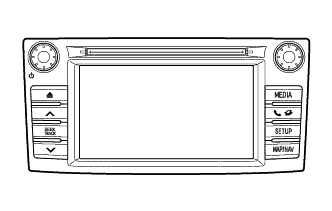

      Radio and Display Receiver Assembly A01EZP9 A01EZ5Z

        Display Audio System:

      • 6.1-inch Display

      • AM/FM Tuner

      • Radio Data System (RDS)

      • CD Player

      • CD-TEXT Display Function

      • MP3, WMA and AAC Playback Function

      • iPod Operation Function

      • Stereo Jack Adapter (USB, AUX Port)

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • 6-speaker System

      • Manufacturer: FUJITSU TEN
      Models for General Countries:*
      Audio Head Unit Design Specification
      Radio Receiver Assembly A01EZA5 A01EZ8D

        Base Audio System:

      • AM/FM Tuner

      • CD Player

      • CD-TEXT Display Function

      • MP3 and WMA Playback Function

      • iPod Operation Function

      • USB/AUX Port

      • 2-speaker System

      • Manufacturer: FUJITSU TEN
      A01EZ9G A01EZQ1

        Base Audio System:

      • AM/FM Tuner

      • CD Player

      • CD-TEXT Display Function

      • MP3 and WMA Playback Function

      • iPod Operation Function

      • USB/AUX Port

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • 2-speaker System

      • Manufacturer: FUJITSU TEN

        Base Audio System:

      • AM/FM Tuner

      • CD Player

      • CD-TEXT Display Function

      • MP3 and WMA Playback Function

      • iPod Operation Function

      • USB/AUX Port

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • 4-speaker System

      • Manufacturer: FUJITSU TEN
      Radio Receiver Assembly A01EZ8T

        Base Audio System:

      • AM/FM Tuner :

      • Radio Data System (RDS)

      • CD Player

      • CD-TEXT Display Function

      • MP3 and WMA Playback Function

      • iPod Operation Function

      • USB/AUX Port

      • Bluetooth Audio System

      • Bluetooth Hands Free System

      • 4-speaker System

      • Manufacturer: FUJITSU TEN
      A01EZQ1

        Base Audio System:

      • AM/FM Tuner

      • CD Player

      • CD-TEXT Display Function

      • MP3 and WMA Playback Function

      • iPod Operation Function

      • USB/AUX Port

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • 6-speaker System

      • Manufacturer: FUJITSU TEN
      Radio and Display Receiver Assembly A01EZQR

        Display Audio System:

      • 6.1-inch Display

      • AM/FM Tuner

      • CD Player

      • CD-TEXT Display Function

      • MP3, WMA and AAC Playback Function

      • iPod Operation Function

      • Stereo Jack Adapter (USB, AUX Port)

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • 6-speaker System

      • Manufacturer: FUJITSU TEN

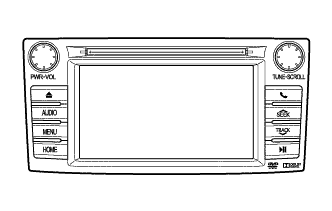

      A01EZDV

        Display Audio System:

      • 6.1-inch Display

      • AM/FM Tuner

      • CD/DVD Player

      • CD-TEXT Display Function

      • MP3, WMA and AAC Playback Function

      • iPod Operation Function

      • Stereo Jack Adapter (USB, AUX Port)

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • 6-speaker System

      • Manufacturer: FUJITSU TEN

      Tech Tips

      *: Including all destination packages

    2. 2-speaker System

      A01EZLWE01
      Location Speaker Type Caliber Impedance Input Range
      *1 Front Speaker x 2 160 mm (6.3 in.) 4 Ω 20 W

    3. 4-speaker System

      A01EZD3E01
      Location Speaker Type Caliber Impedance Input Range
      *1 Front Speaker x 2 160 mm (6.3 in.) 4 Ω 20 W
      *2 Rear Speaker x 2

      140 mm (5.5 in.)*1

      160 mm (6.3 in.)*2

      		 4 Ω 20 W

      • *1: Extra cab models

      • *2: Double cab models

    4. 6-speaker System

      A01EZOME01
      Location Speaker Type Caliber Impedance Input Range
      *1 Tweeter x 2 25 mm (1.0 in.) 4 Ω 20 W
      *2 Front Speaker x 2 160 mm (6.3 in.) 4 Ω 20 W
      *3 Rear Speaker x 2

      140 mm (5.5 in.)*1

      160 mm (6.3 in.)*2

      		 4 Ω 20 W

      • *1: Extra cab models

      • *2: Double cab models

  3. MAIN FEATURES

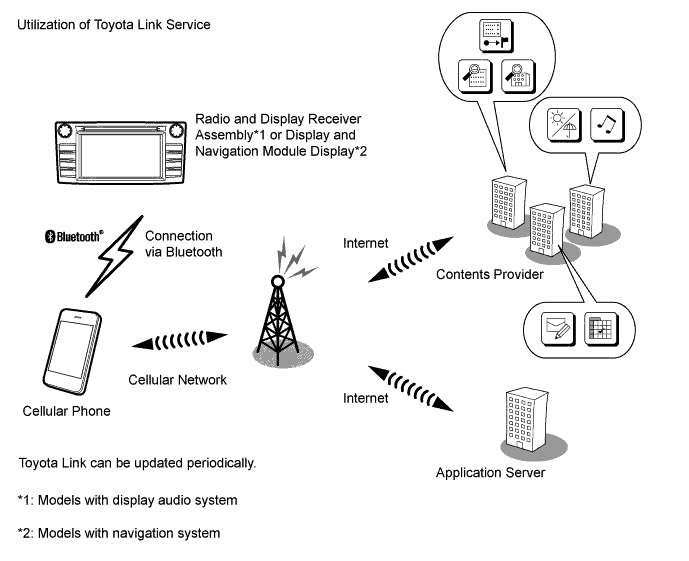

    1. Toyota Link (Models for Australia)


      1. The Toyota Link service makes it possible to operate specified applications on the radio and display receiver assembly*1 or display and navigation module display*2 by using Bluetooth to connect the navigation system to a cellular phone with the Toyota Link application installed.


        • *1: Models with display audio system

        • *2: Models with navigation system

      2. The Toyota Link service enables communication between the navigation system, application server and content provider utilizing the Toyota Link application installed on a cellular phone.

      3. The following applications ("Apps") are available for the Toyota Link service: local business search, fuel price information, weather information, etc. However, since this supported application lineup is subject to change, visit http://www.toyota.com.au/ for details on the Toyota Link service.

        A01EZO6E01

    2. T-connect (Models for G.C.C. Countries)


      1. T-connect is a service that uses an exclusive smartphone* application to offer a variety of information and provide an easy, secure, safe and convenient vehicle ownership experience.

        Tech Tips

        *: Depending on the type of cellular phone, T-connect may not be supported

      2. By using T-connect, users can utilize contents such as a map guide service, operator service and traffic information.

      3. For details of the contents available on T-connect, please contact a dealer.

      4. By connecting a smartphone with the exclusive application to either the radio and display receiver assembly, the smartphone display can be shown on-screen. Users are also able to operate the smartphone using the screen.*

        Tech Tips

        *: iPhone and Android phones require different connection methods. For details, please contact a dealer.

        To use T-connect, users must register through the exclusive smartphone application. For details, please contact a dealer.

        A01EZOAE02
        Text in Illustration
        *1 Radio and Display Receiver Assembly - -
        *a iPhone *b USB
        *c AUX *d Bluetooth Wireless Connection
        *e Android *f Cellular Network
        *g Internet *h Toyota Smart Center
        *i Global Data Center - -

      5. MirrorLinkTMFunction


        • To utilize the MirrorLinkTMfunction, it is necessary to connect a compatible smartphone* to the radio and display receiver assembly using a USB cable.

        • After a connection is established, the screen of the smartphone is displayed on the radio and display receiver assembly. Using this screen, the user can operate applications installed on the smartphone and listen to the audio of the smartphone via the vehicle speakers. Operation via the smartphone is also possible.

          Tech Tips

          *: This function is not available if the smartphone is not compliant with MirrorLinkTMof Car Connectivity Consortium.

          A01EZLBE01
          Text in Illustration
          *1 Smartphone *2 Connection via USB Cable
          *a

          MirrorLinkTMScreen

          		 *b The illustration shows an example for Android.
