REAR SEATBACK HEATER(for LH Side) COMPONENTS

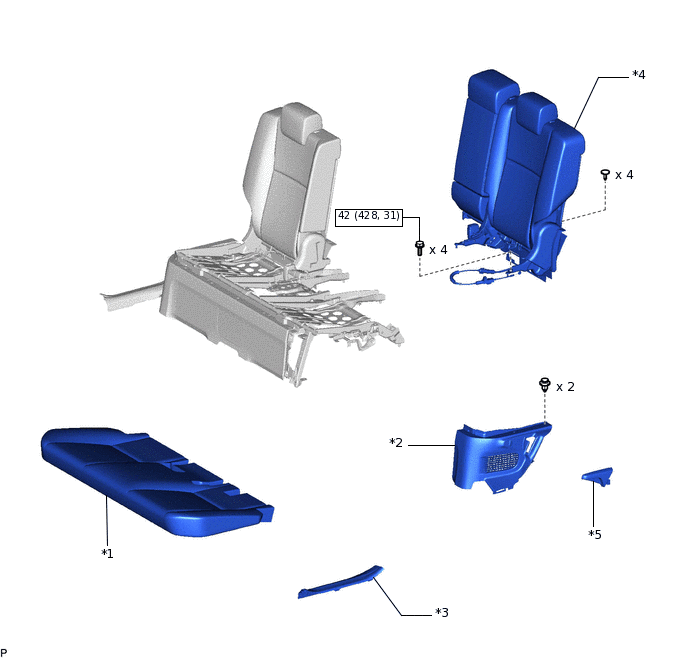

ILLUSTRATION
*1 |
BENCH TYPE REAR SEAT CUSHION ASSEMBLY |
*2 |
NO. 3 BATTERY SERVICE COVER BOARD |
*3 |
REAR DOOR SCUFF PLATE LH |
*4 |
REAR SEATBACK ASSEMBLY LH |
*5 |
RECLINING ADJUSTER RELEASE HANDLE LH |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

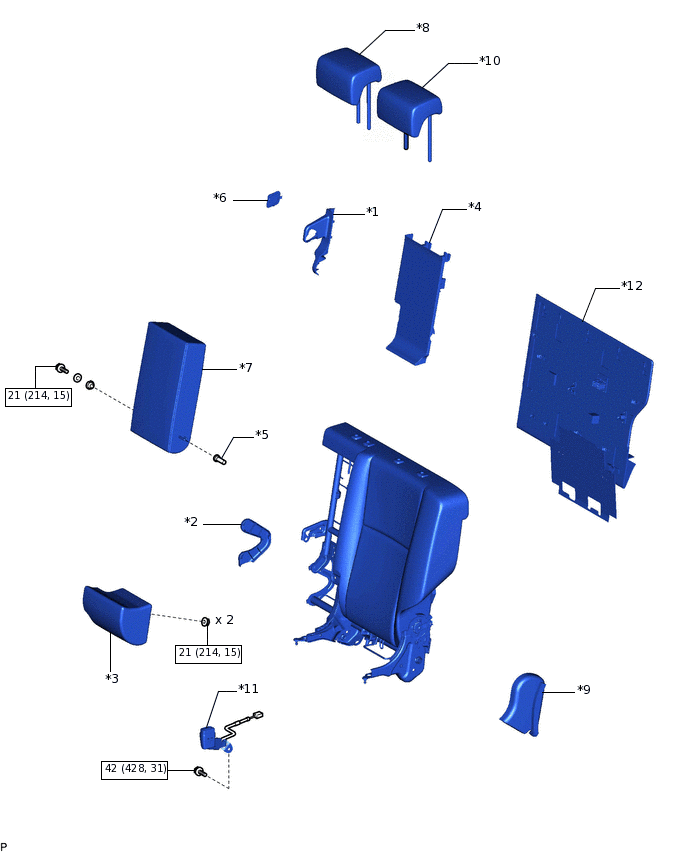

ILLUSTRATION
*1 |
CENTER ARMREST HINGE COVER |
*2 |
CENTER SEAT HINGE COVER |
*3 |
NO. 1 SEAT ARMREST ASSEMBLY |
*4 |
NO. 1 SEATBACK COVER |
*5 |
REAR NO. 1 SEAT CENTER ARMREST PLATE |
*6 |
REAR SEAT ARMREST HOLE COVER |
*7 |
REAR SEAT CENTER ARMREST ASSEMBLY |
*8 |
REAR SEAT CENTER HEADREST ASSEMBLY |
*9 |
REAR SEAT CUSHION MOULDING LH |
*10 |
REAR SEAT HEADREST ASSEMBLY RH |
*11 |
REAR SEAT INNER BELT ASSEMBLY LH |
*12 |
REAR SEATBACK BOARD CARPET ASSEMBLY LH |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

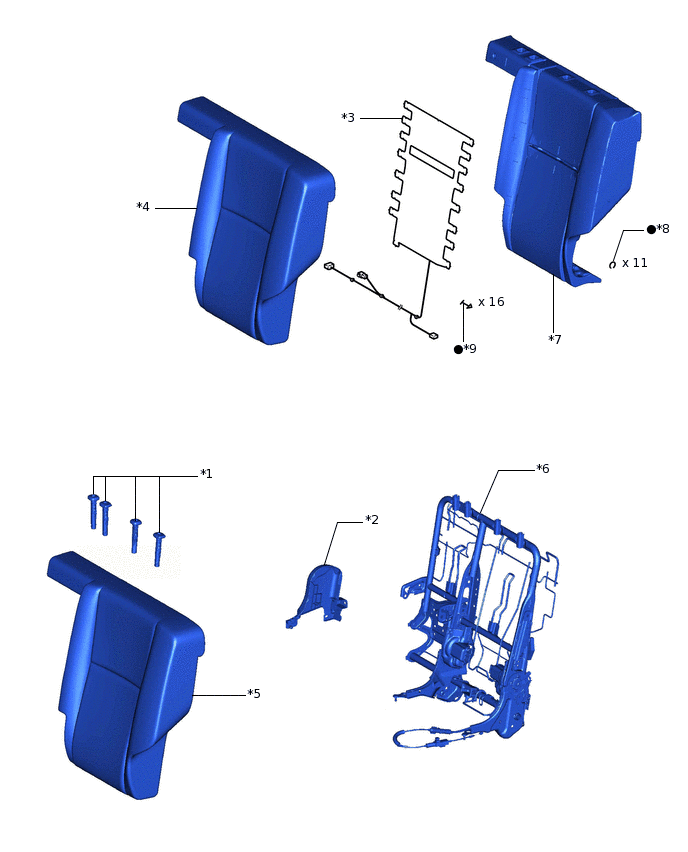

ILLUSTRATION
*1 |
REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY |
*2 |
REAR SEAT CUSHION MOULDING LH |
*3 |
REAR SEATBACK HEATER ASSEMBLY |
*4 |
SEPARATE TYPE REAR SEATBACK COVER LH |
*5 |
SEPARATE TYPE REAR SEATBACK COVER WITH PAD |
*6 |
REAR SEATBACK FRAME SUB-ASSEMBLY LH |
*7 |
SEPARATE TYPE REAR SEATBACK PAD LH |
*8 |
HOG RING |
*9 |
TACK PIN |
- |
- |
● |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
