FRONT DRIVE SHAFT ASSEMBLY(for 1WW) REMOVAL

PROCEDURE

1. REMOVE FRONT AXLE ASSEMBLY LH

   (Click here)

2. REMOVE FRONT AXLE ASSEMBLY RH

   Tip:

   Use the same procedure described for the LH side.

3. REMOVE NO. 1 ENGINE UNDER COVER

   Click here

4. DRAIN MANUAL TRANSAXLE OIL

   Click here

5. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH

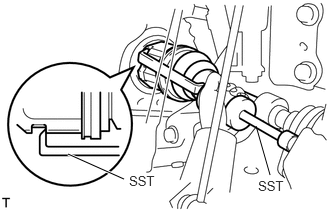

   1.

      Using SST, remove the front drive shaft assembly LH.

      09520-01010

      09520-24010

      09520-32040

      Note:

      • Be careful not to damage the transaxle case oil seal LH, front axle inboard joint boot and front drive shaft dust cover LH.

      • Be careful not to drop the front drive shaft assembly LH.

6. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH

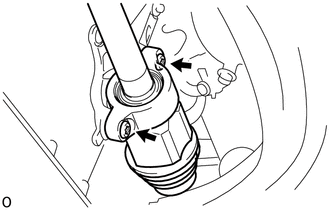

   1.

      Using a T50 ''TORX'' socket wrench, remove the 2 bolts and pull out the front drive shaft assembly RH.

      Note:

      • Be careful not to damage the transaxle case oil seal RH, front axle inboard joint boot and front drive shaft dust cover RH.

      • Be careful not to drop the front drive shaft assembly RH.

7. REMOVE FRONT DRIVE SHAFT HOLE SNAP RING LH

   1.

      Using a screwdriver, remove the front drive shaft hole snap ring LH.

      Note:

      Be careful not to damage the spline of the front drive inboard joint LH.
