METER / GAUGE SYSTEM SYSTEM DIAGRAM

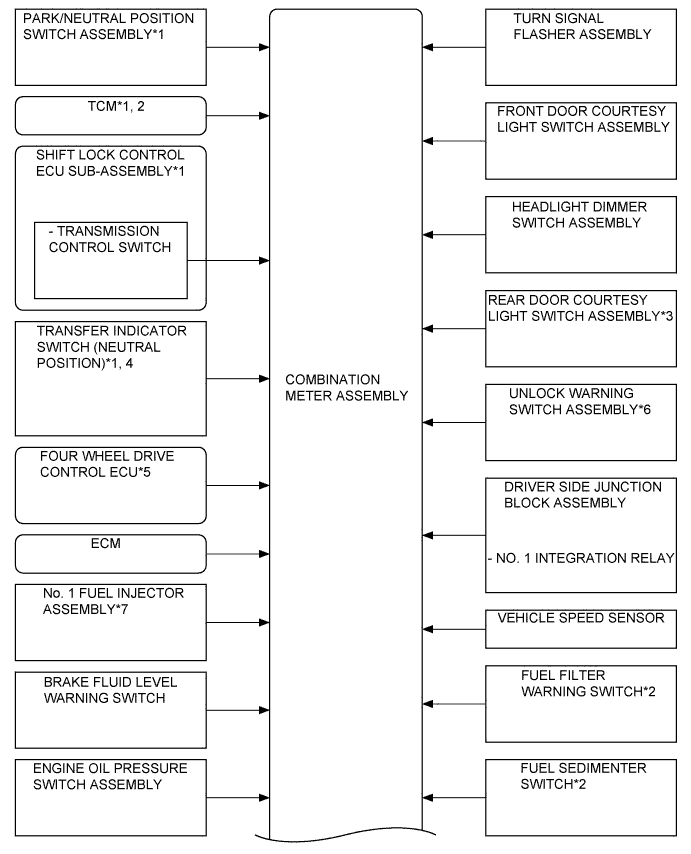

A01EZ5GE01

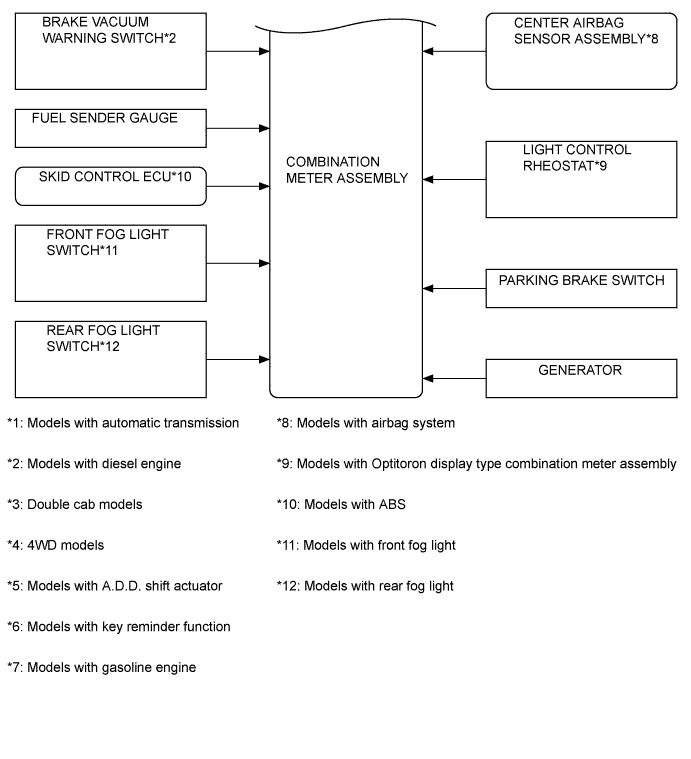

A01EZH3E01

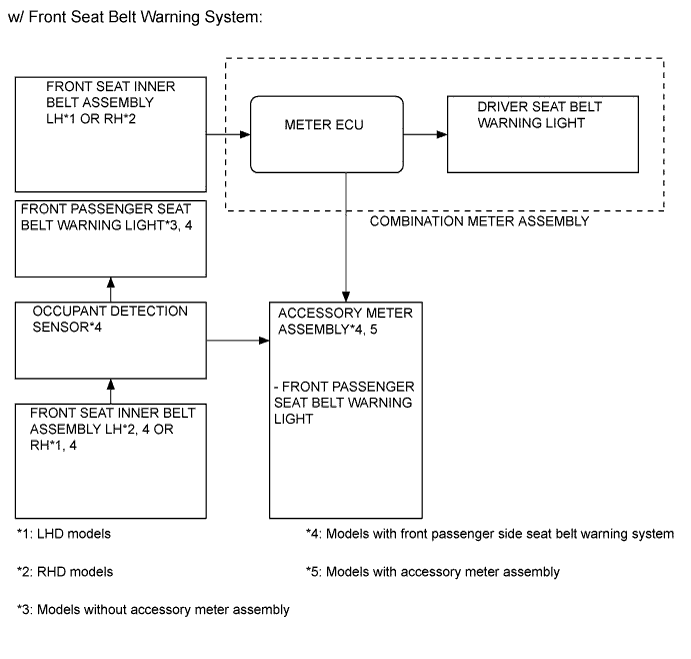

A01EZHDE02

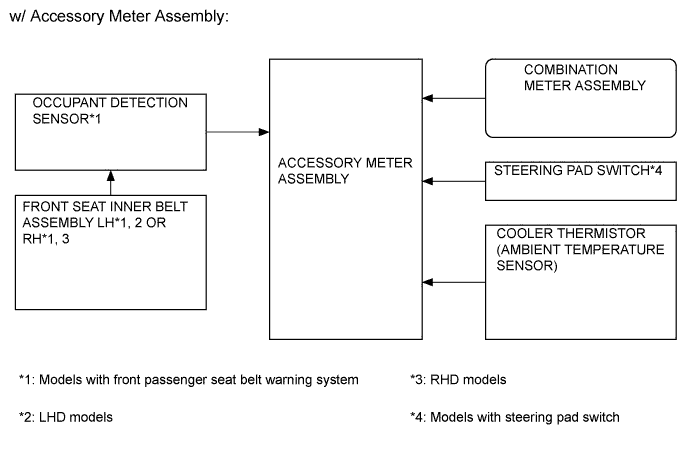

A01EZEYE02
ECU Input Signal
ECM

  • Engine speed signal

  • Fuel injection volume signal

  • Engine coolant temperature signal

  • Buzzer sounding request signal*1

  • Warning light control signal

  • Indicator light illumination request signal

  • Diagnosis
Center Airbag Sensor Assembly*2

  • Warning light illumination request signal

  • Diagnosis
Skid Control ECU*3

  • Warning light illumination request signal

  • Indicator light illumination request signal

  • Diagnosis
Four Wheel Drive Control ECU*4

  • Warning light illumination request signal

  • Indicator light illumination request signal

  • Diagnosis
TCM*5 Warning light control signal

Tech Tips

The input signals differ by vehicle specification.


  • *1: Models with diesel engine

  • *2: Models with airbag system

  • *3: Models with ABS

  • *4: Models with A.D.D. shift actuator

  • *5: Models with diesel engine and automatic transmission
