FRONT PASSENGER SIDE POWER WINDOW SWITCH INSPECTION

PROCEDURE

  1. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY

    1. Check the switch function.

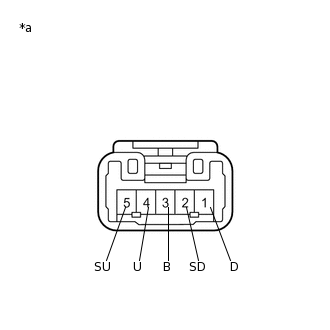

      1. B164433C16

        *a

        Component without harness connected

        (Power Window Regulator Switch Assembly)

        Measure the resistance when the switch is operated according to the value(s) in the table below.

        Standard Resistance

        Tester Connection

        Switch Condition

        Specified Condition

        1 (D) - 2 (SD)

        UP

        Below 1 Ω

        3 (B) - 4 (U)

        Below 1 Ω

        1 (D) - 2 (SD)

        OFF

        Below 1 Ω

        4 (U) - 5 (SU)

        Below 1 Ω

        4 (U) - 5 (SU)

        DOWN

        Below 1 Ω

        1 (D) - 3 (B)

        Below 1 Ω

        If the result is not as specified, replace the power window regulator switch assembly.
