FRONT SUSPENSION MEMBER REMOVAL

PROCEDURE

  1. FRONT WHEELS FACING STRAIGHT AHEAD

  2. REMOVE FRONT WHEELS

    Click here

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Click here

  4. REMOVE FRONT FLOOR COVER

    Click here

  5. REMOVE REAR ENGINE UNDER COVER RH

    Click here

  6. REMOVE REAR ENGINE UNDER COVER LH

    Click here

  7. SECURE STEERING WHEEL

  8. REMOVE COLUMN HOLE COVER SILENCER SHEET

    Click here

  9. DISCONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

    Click here

  10. REMOVE NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY

    Click here

  11. DISCONNECT FRONT STABILIZER LINK ASSEMBLY LH

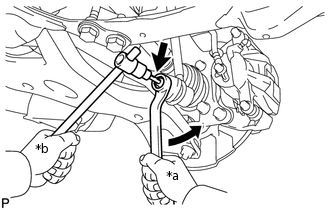

    1. C279179C02

      *a

      Turn

      *b

      Hold

      Remove the nut and disconnect the front stabilizer link assembly LH from the front stabilizer bar.

      Tip:

      If the ball joint turns together with the nut, use a 6 mm hexagon wrench to hold the stud bolt.

  12. DISCONNECT FRONT STABILIZER LINK ASSEMBLY RH

    Tip:

    Use the same procedure described for the LH side.

  13. DISCONNECT TIE ROD END SUB-ASSEMBLY LH

    Click here

  14. DISCONNECT TIE ROD END SUB-ASSEMBLY RH

    Tip:

    Use the same procedure described for the LH side.

  15. DISCONNECT FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH

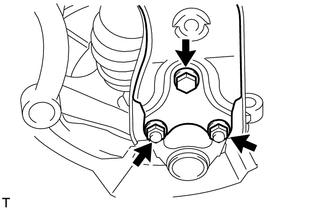

    1. C127531

      Remove the bolt and 2 nuts.

    2. Disconnect the front lower No. 1 suspension arm from the lower ball joint.

  16. DISCONNECT FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH

    Tip:

    Use the same procedure described for the LH side.

  17. REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT LH

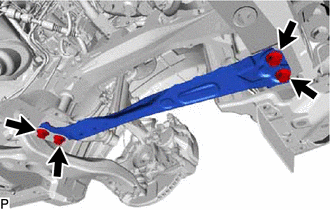

    1. A296303

      Remove the 4 bolts and front suspension member reinforcement LH.

  18. REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT RH

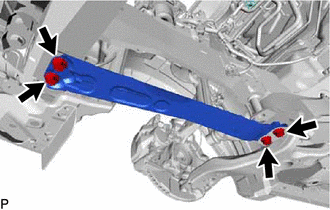

    1. A296302

      Remove the 4 bolts and front suspension member reinforcement RH.

  19. REMOVE FRONT SUSPENSION MEMBER REAR BRACE LH

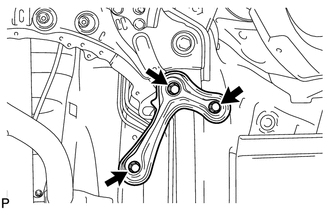

    C149508

    1. Remove the 3 bolts and front suspension member rear brace LH.

  20. REMOVE FRONT SUSPENSION MEMBER REAR BRACE RH

    Tip:

    Use the same procedure described for the LH side.

  21. REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY

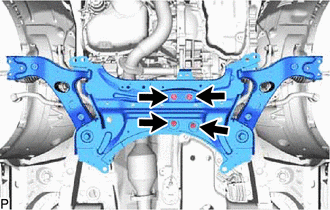

    1. C306828

      Remove the 2 bolts and 2 nuts, and disconnect the front suspension crossmember sub-assembly from the rear engine mounting insulator.

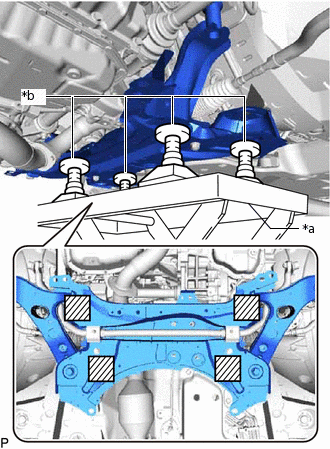

    2. C306829C02

      *a

      Engine Lifter

      *b

      Attachment
      V100155

      Attachment placement location

      Support the front suspension crossmember sub-assembly with an engine lifter using 4 attachments or equivalent tools as shown in the illustration.

      Note:

      • Make sure to secure the front suspension crossmember sub-assembly to prevent it from dropping.

      • Use the attachments to keep the front suspension crossmember sub-assembly level.

      • The front suspension crossmember sub-assembly is a heavy component. Make sure that it is supported securely.

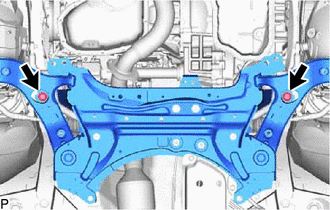

    3. C306830

      Remove the 2 bolts and front suspension crossmember sub-assembly.

    4. Slowly lower the front suspension crossmember sub-assembly.

      Note:

      When lowering the front suspension crossmember sub-assembly, be careful not to damage the vehicle body or other components installed on the vehicle.

  22. REMOVE FRONT CROSSMEMBER SUB-ASSEMBLY

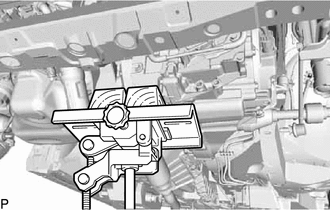

    1. C346474

      Using a jack, support the engine and transaxle assembly.

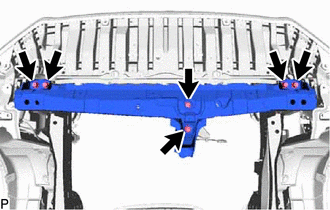

    2. A296304

      Remove the 6 bolts and front crossmember sub-assembly.

  23. REMOVE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH

    Click here

  24. REMOVE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH

    Tip:

    Use the same procedure described for the LH side.

  25. REMOVE FRONT SUSPENSION MEMBER BRACE

    Click here

  26. REMOVE FRONT STABILIZER BAR

    Click here

  27. REMOVE STEERING GEAR ASSEMBLY

    Click here
