HEADLIGHT DIMMER SWITCH REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

  1. REMOVE SPIRAL CABLE SUB-ASSEMBLY

    1. Remove the spiral cable (Click here).

  2. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

    1. E184268

      Disconnect the connectors.

    2. Using a screwdriver, detach the claw and remove the windshield wiper switch.

      Tip:

      Tape the screwdriver tip before use.

      Note:

      If the claw is pressed forcefully, it will break.

  3. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY

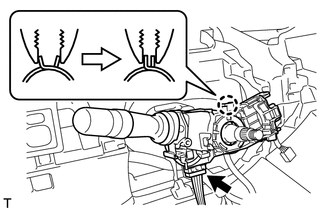

    1. E184269

      Disconnect the connector.

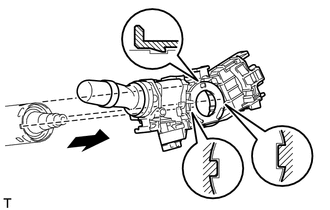

    2. E177501

      While loosening the band clamp as shown in the illustration, detach the claw to remove the headlight dimmer switch.

      Note:

      If the claw is pressed forcefully, it will break.
