POWER SWITCH INSPECTION

PROCEDURE

  1. INSPECT POWER SWITCH

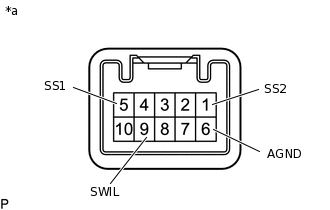

    1. A295732C09

      *a

      Component without harness connected

      (Power Switch)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      5 (SS1) - 6 (AGND)

      1 (SS2) - 6 (AGND)

      Not pushed

      10 kΩ or higher

      Pushed

      Below 1 Ω

      If the result is not as specified, replace the power switch.

    2. Apply battery voltage between the terminals of the power switch, and check the illumination condition of the power switch indicator light.

      OK

      Condition

      Specified Condition

      Battery positive (+) → Terminal 9 (SWIL)

      Battery negative (-) → Terminal 6 (AGND)

      Illuminates
      Tip:

      • If the positive (+) lead and the negative (-) lead are incorrectly connected, the power switch indicator light will not illuminate.

      • If the voltage is too low, the power switch indicator light will not illuminate.

      If the result is not as specified, replace the power switch.
