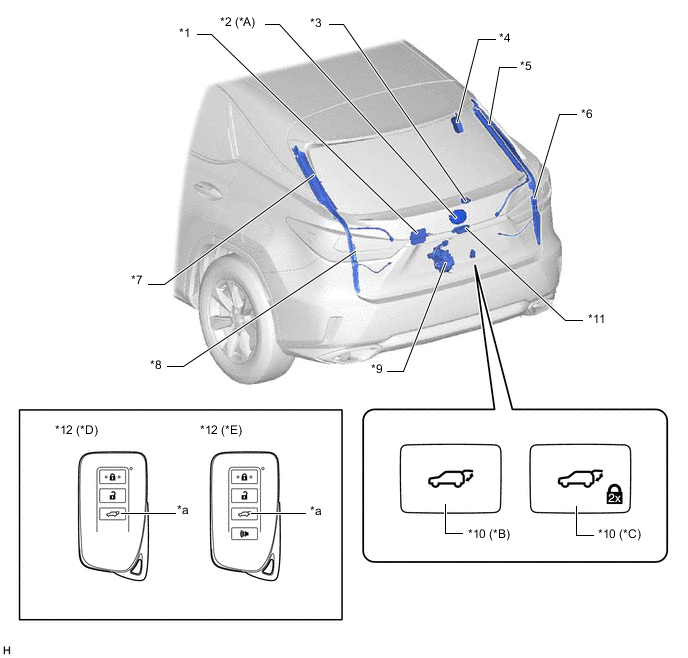

POWER BACK DOOR SYSTEM
| *A | Models with Touchless Power Back Door Function | *B | Models for Europe |
| *C | Except Models for Europe | *D | Except Models with Panic Switch |
| *E | Models with Panic Switch | - | - |
| *1 | POWER BACK DOOR ECU (MULTIPLEX NETWORK DOOR ECU) | *2 | REAR EMBLEM SENSOR ASSEMBLY |
| *3 | POWER BACK DOOR WARNING BUZZER | *4 | SMART DOOR CONTROL RECEIVER ASSEMBLY |
| *5 | POWER BACK DOOR UNIT ASSEMBLY SET RH | *6 | TOUCH SENSOR (POWER BACK DOOR SENSOR ASSEMBLY RH) |
| *7 | POWER BACK DOOR UNIT ASSEMBLY SET LH | *8 | TOUCH SENSOR (POWER BACK DOOR SENSOR ASSEMBLY LH) |
| *9 | BACK DOOR LOCK ASSEMBLY | *10 | POWER BACK DOOR SWITCH (DOOR CONTROL SWITCH) |
| *11 | BACK DOOR OPENER SWITCH ASSEMBLY | *12 | ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY |
| *a | Power Back Door Button | - | - |

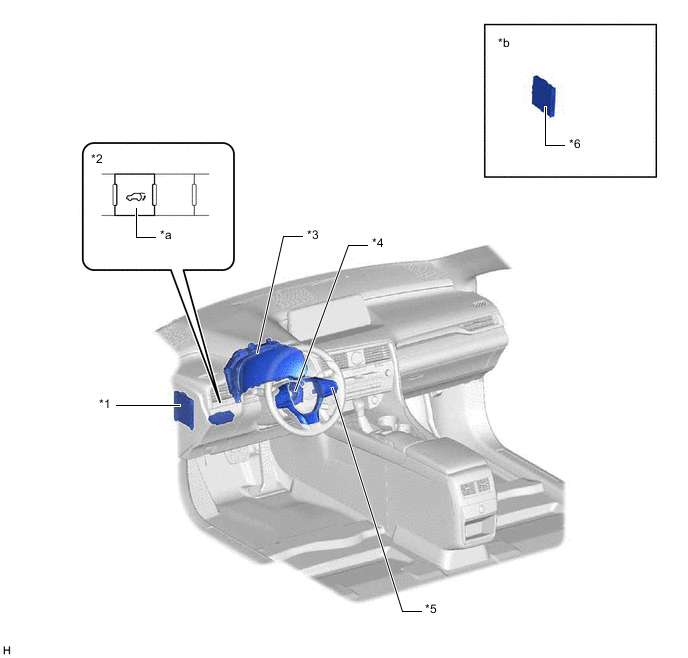

Figure 1. LHD Models
POWER BACK DOOR CONTROL SWITCH
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | INTEGRATION CONTROL AND PANEL ASSEMBLY |
| *3 | COMBINATION METER ASSEMBLY | *4 | SPIRAL CABLE SUB-ASSEMBLY |
| *5 | STEERING PAD SWITCH ASSEMBLY | *6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *a | Power Back Door Control Switch | *b | Refer to Service Bulletin for the installation position of the part |

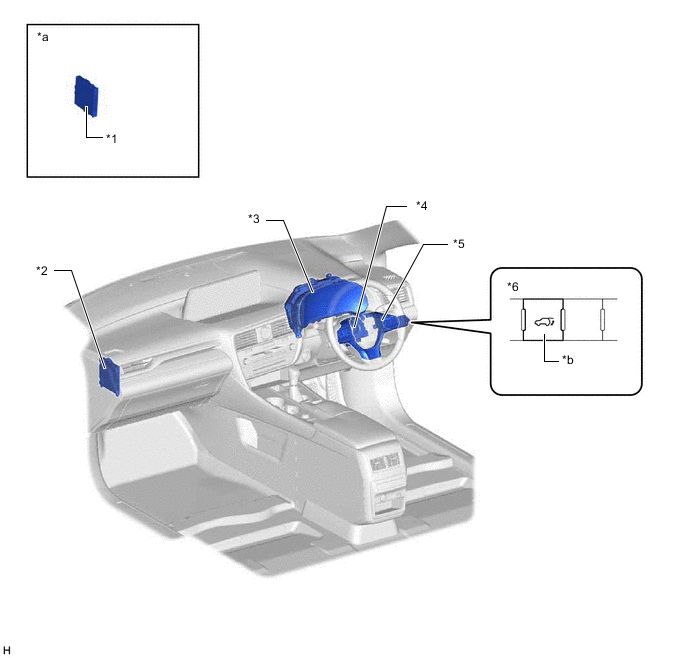

Figure 2. RHD Models
| *1 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | COMBINATION METER ASSEMBLY | *4 | SPIRAL CABLE SUB-ASSEMBLY |
| *5 | STEERING PAD SWITCH ASSEMBLY | *6 | INTEGRATION CONTROL AND PANEL ASSEMBLY |
| *a | Refer to Service Bulletin for the installation position of the part | *b | Power Back Door Control Switch |
