IMMOBILISER SYSTEM(w/o Entry and Start System), Diagnostic DTC:B2784

DTC Code DTC Name
B2784 Antenna Coil Open / Short

DESCRIPTION

When an open or short circuit is detected in the antenna coil built into the transponder key coil, the transponder key ECU assembly stores this DTC.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

Note

B2784

Antenna Coil Open / Short

The antenna coil in the transponder key coil is open/shorted.

  • Wire harness or connector

  • Transponder key coil

  • Transponder key ECU assembly

  • DTC Output Confirmation Operation:

  • Insert the door control transmitter assembly into the ignition key cylinder, turn the ignition switch from off to ON and wait at least 20 seconds.

Table 1. Vehicle Condition and Fail-safe Operation when Malfunction Detected

Vehicle Condition when Malfunction Detected

Fail-safe Operation when Malfunction Detected

Engine cannot be started

-

Table 2. Related Data List and Active Test

DTC No.

Data List and Active Test

B2784

Antenna Coil Status

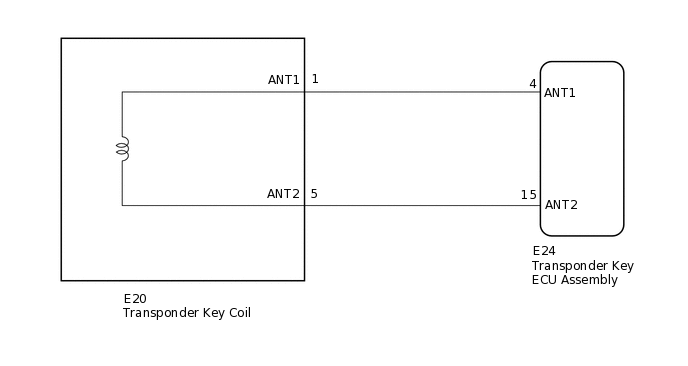

WIRING DIAGRAM

B329324E27

CAUTION / NOTICE / HINT

Note:
  • If the transponder key ECU assembly is replaced, refer to Service Bulletin.

  • After repair, confirm that no DTCs are output by performing "DTC Output Confirmation Operation".

PROCEDURE

  1. CLEAR DTC

    1. Clear the DTCs.

      Body Electrical > Immobiliser > Clear DTCs

    Result

    Proceed to

    NEXT

    NEXT
  2. CHECK FOR DTC

    1. Perform "DTC Output Confirmation Operation" procedure.

    2. Check for DTCs.

      Body Electrical > Immobiliser > Trouble Codes

      OK

      DTC B2784 is not output.

    Result

    Result

    Proceed to

    B2784 is not output

    A

    B2784 is output

    B

    A

    USE SIMULATION METHOD TO CHECK

    B
  3. CHECK CONNECTION OF CONNECTOR

    1. Check that the connector is properly connected to the transponder key coil.

    Result

    Proceed to

    NEXT

    NEXT
  4. CLEAR DTC

    1. Clear the DTCs.

      Body Electrical > Immobiliser > Clear DTCs

    Result

    Proceed to

    NEXT

    NEXT
  5. CHECK FOR DTC

    1. Perform "DTC Output Confirmation Operation" procedure.

    2. Check for DTCs.

      Body Electrical > Immobiliser > Trouble Codes

      OK

      DTC B2784 is not output.

    Result

    Result

    Proceed to

    B2784 is not output

    A

    B2784 is output

    B

    A

    END (CONNECTOR WAS NOT CONNECTED PROPERLY)

    B
  6. CHECK TRANSPONDER KEY COIL (OUTPUT)

    1. Using an oscilloscope, check the waveform.

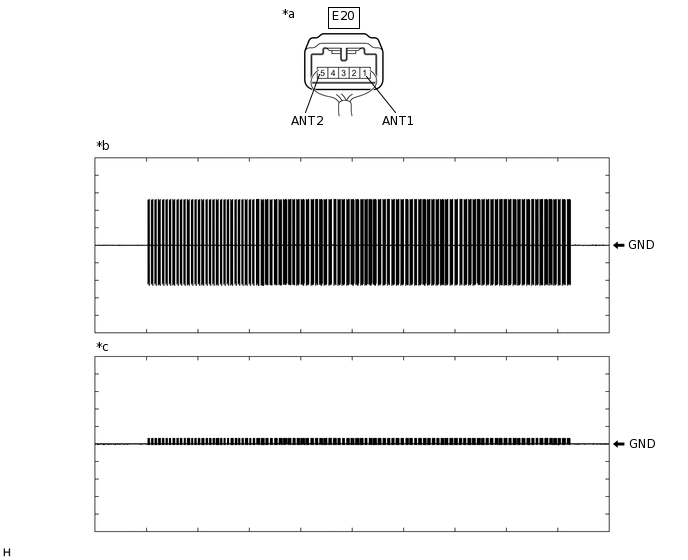

      B329326C16

      *a

      Component with harness connected

      (Transponder Key Coil)

      *b

      Waveform 1

      *c

      Waveform 2

      -

      -

      Table 3. Measurement Condition

      Tester Connection

      Condition

      Tool Setting

      Specified Condition

      E20-1 (ANT1) - Body ground

      Within 3 seconds of ignition switch turned to ON

      2 V/DIV., 500 ms./DIV.

      Pulse generation

      (See waveform 1)

      E20-5 (ANT2) - Body ground

      Within 3 seconds of ignition switch turned to ON

      2 V/DIV., 500 ms./DIV.

      Pulse generation

      (See waveform 2)

      OK

      Waveform is similar to that shown in the illustration.

    Result

    Proceed to

    OK

    NG

    OK

    REPLACE TRANSPONDER KEY COIL

    NG
  7. CHECK HARNESS AND CONNECTOR (TRANSPONDER KEY ECU ASSEMBLY - TRANSPONDER KEY COIL)

    1. Disconnect the E24 transponder key ECU assembly connector.

    2. Disconnect the E20 transponder key coil connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      E24-4 (ANT1) - E20-1 (ANT1)

      Always

      Below 1 Ω

      E24-15 (ANT2) - E20-5 (ANT2)

      Always

      Below 1 Ω

      E24-4 (ANT1) or E20-1 (ANT1) - Body ground

      Always

      10 kΩ or higher

      E24-15 (ANT2) or E20-5 (ANT2) - Body ground

      Always

      10 kΩ or higher

    Result

    Proceed to

    OK

    NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK
  8. REPLACE TRANSPONDER KEY ECU ASSEMBLY

    1. Temporarily replace the transponder key ECU assembly with a new one.

      Note:

      Key ID code registration is necessary when replacing the transponder key ECU assembly, refer to Service Bulletin.

      Tip:

      Refer to Service Bulletin.

    Result

    Proceed to

    NEXT

    NEXT
  9. CLEAR DTC

    1. Clear the DTCs.

      Body Electrical > Immobiliser > Clear DTCs

    Result

    Proceed to

    NEXT

    NEXT
  10. CHECK FOR DTC

    1. Perform "DTC Output Confirmation Operation" procedure.

    2. Check for DTCs.

      Body Electrical > Immobiliser > Trouble Codes

      OK

      DTC B2784 is not output.

    Result

    Result

    Proceed to

    B2784 is not output

    A

    B2784 is output

    B

    A

    END (TRANSPONDER KEY ECU ASSEMBLY WAS DEFECTIVE)

    B

    REPLACE TRANSPONDER KEY COIL
