TIMING BELT COMPONENTS

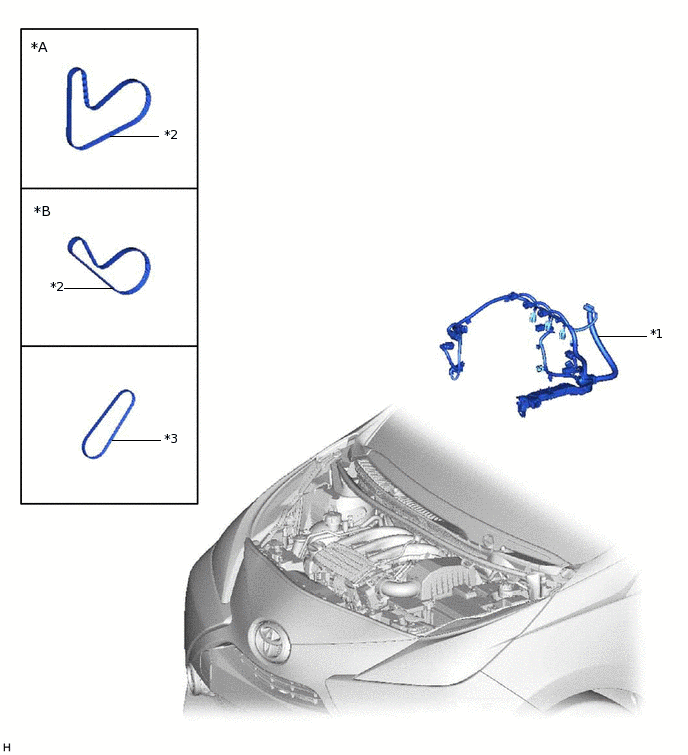

ILLUSTRATION
*A |
w/ Air Conditioning System |
*B |
w/o Air Conditioning System |
*1 |
ENGINE WIRE |
*2 |
V-RIBBED BELT |
*3 |
WATER PUMP DRIVE BELT |
- |
- |

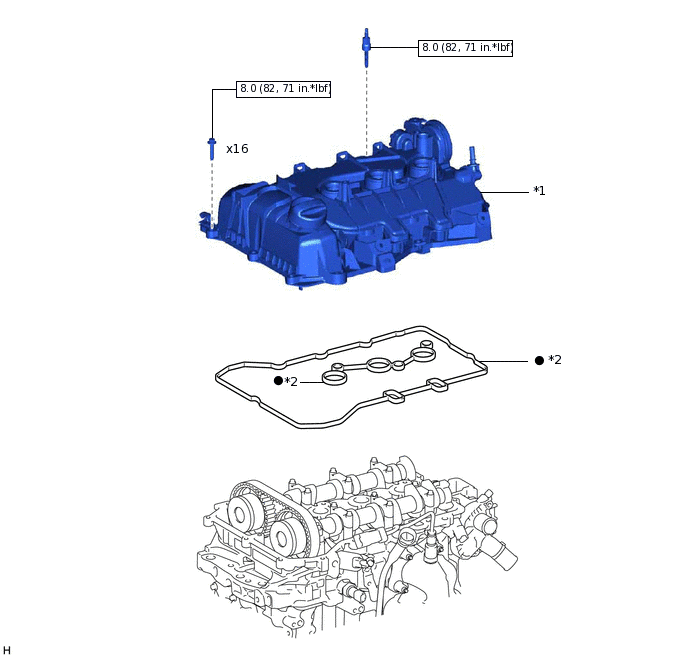

ILLUSTRATION
*1 |
CYLINDER HEAD COVER GASKET |
*2 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

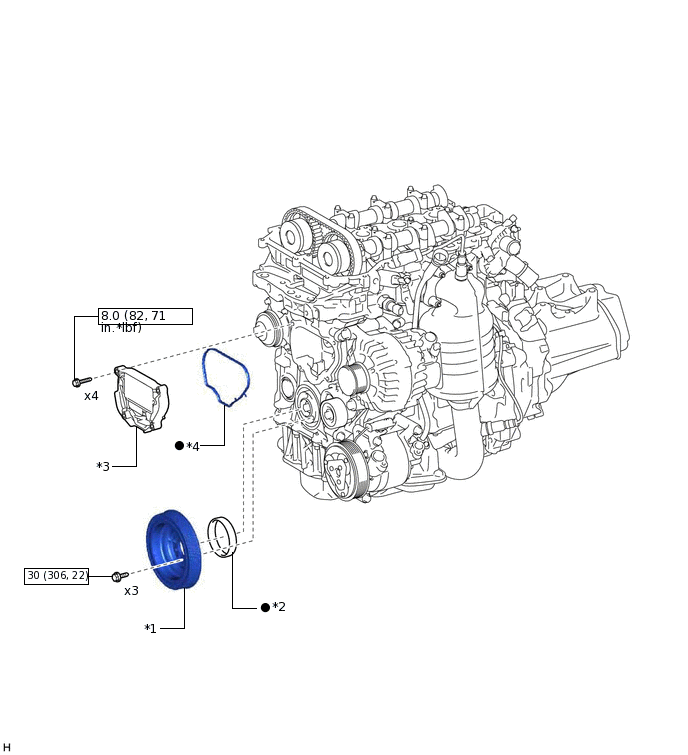

ILLUSTRATION
*1 |
CRANKSHAFT PULLEY |
*2 |
CRANKSHAFT PULLEY HUB OIL SEAL |
*3 |
CYLINDER BLOCK COVER |
*4 |
CYLINDER BLOCK COVER SEAL |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

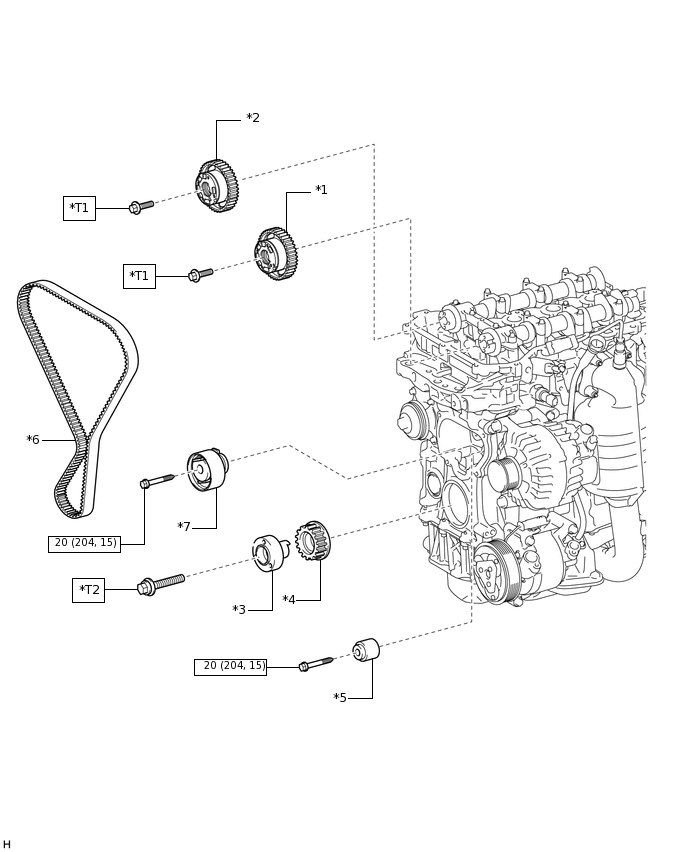

ILLUSTRATION
*1 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY |
*2 |
CAMSHAFT TIMING GEAR ASSEMBLY |
*3 |
CRANKSHAFT PULLEY HUB |
*4 |
CRANKSHAFT TIMING PULLEY |
*5 |
NO. 1 TIMING BELT IDLER SUB-ASSEMBLY |
*6 |
TIMING BELT |
*7 |
TIMING BELT TENSIONER ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
*T1 |
1st: 20 (204, 15) 2nd: Turn 120° |
*T2 |
1st: 50 (510, 37) 2nd: Turn 180° |
