REAR BUMPER COMPONENTS

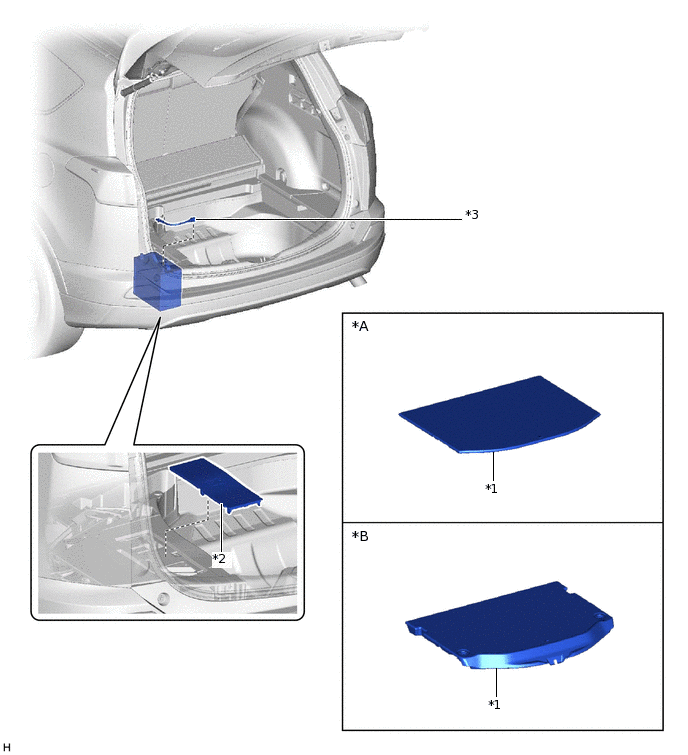

ILLUSTRATION
*A |
w/o Spare Tire, for Compact Spare Tire |
*B |
for Full Size Spare Tire |
*1 |
DECK BOARD ASSEMBLY |
*2 |
BATTERY SERVICE COVER |
*3 |
NEGATIVE AUXILIARY BATTERY TERMINAL |
- |
- |

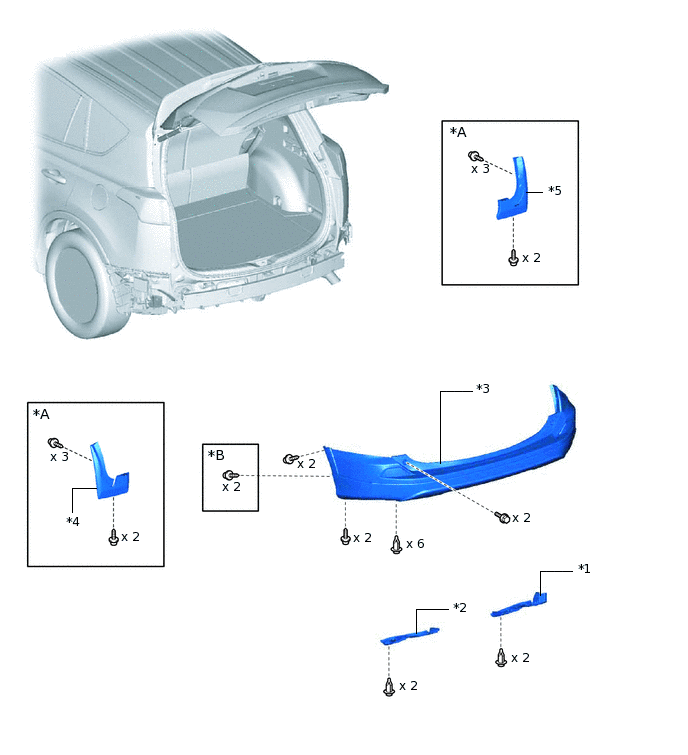

ILLUSTRATION
*A |
w/ Mudguard |
*B |
w/o Mudguard |
*1 |
NO. 1 LUGGAGE COMPARTMENT SERVICE COVER PROTECTOR |
*2 |
NO. 2 LUGGAGE COMPARTMENT SERVICE COVER PROTECTOR |
*3 |
REAR BUMPER COVER |
*4 |
REAR QUARTER PANEL MUDGUARD LH |
*5 |
REAR QUARTER PANEL MUDGUARD RH |
- |
- |

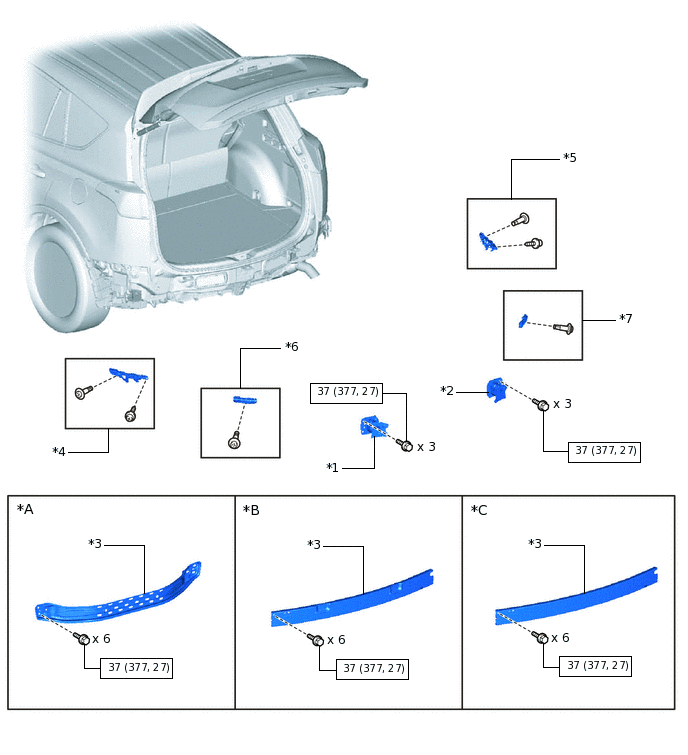

ILLUSTRATION
*A |
for Step Type |
*B |
w/ TOYOTA Parking Assist-sensor System |
*C |
for Standard Type |
- |
- |
*1 |
REAR BUMPER ARM SUB-ASSEMBLY LH |
*2 |
REAR BUMPER ARM SUB-ASSEMBLY RH |
*3 |
REAR BUMPER REINFORCEMENT SUB-ASSEMBLY |
*4 |
REAR BUMPER SIDE SUPPORT LH |
*5 |
REAR BUMPER SIDE SUPPORT RH |
*6 |
REAR BUMPER UPPER RETAINER LH |
*7 |
REAR BUMPER UPPER RETAINER RH |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

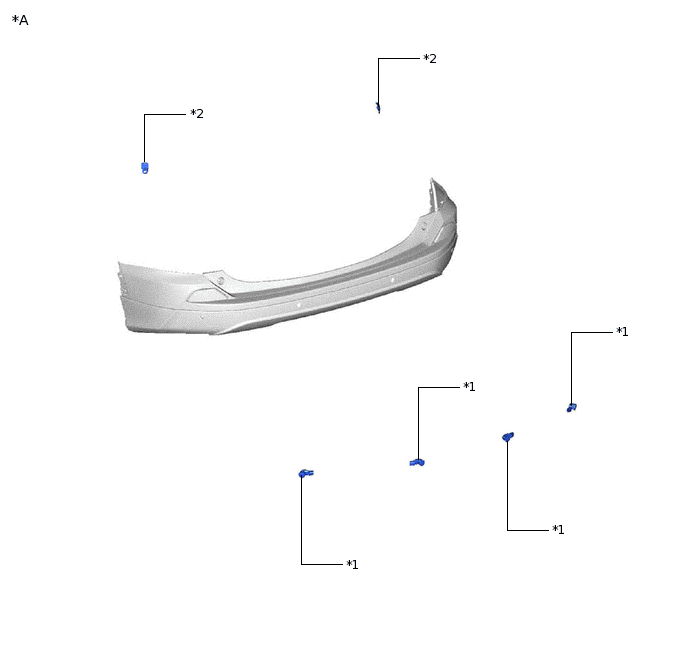

ILLUSTRATION
*A |
w/ TOYOTA Parking Assist-sensor System |
- |
- |
*1 |
NO. 2 ULTRASONIC SENSOR |
*2 |
ULTRASONIC SENSOR CLIP |

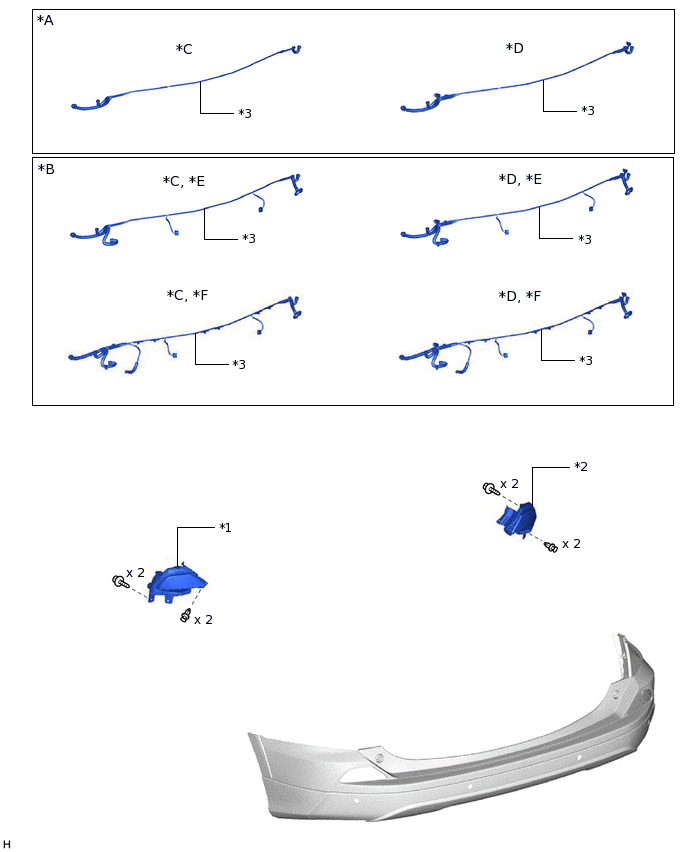

ILLUSTRATION
*A |
w/o TOYOTA Parking Assist-sensor System |
*B |
w/ TOYOTA Parking Assist-sensor System |
*C |
w/o Rear Fog Light |
*D |
w/ Rear Fog Light |
*E |
w/o Touchless Power Back Door |
*F |
w/ Touchless Power Back Door |
*1 |
BACK-UP LIGHT ASSEMBLY LH |
*2 |
BACK-UP LIGHT ASSEMBLY RH |
*3 |
NO. 2 LUGGAGE ROOM WIRE |
- |
- |

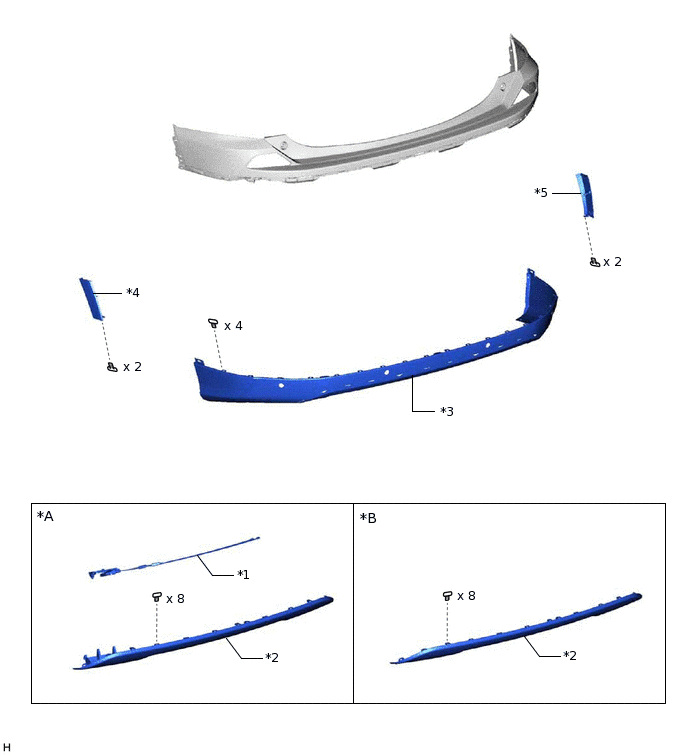

ILLUSTRATION
*A |
w/ Kick Sensor |
*B |
w/o Kick Sensor |
*1 |
KICK DOOR CONTROL SENSOR |
*2 |
REAR BUMPER CENTER GUARD |
*3 |
REAR BUMPER LOWER COVER |
*4 |
REAR BUMPER SIDE EXTENSION LH |
*5 |
REAR BUMPER SIDE EXTENSION RH |
- |
- |
