BACK-UP LIGHT SWITCH REMOVAL

PROCEDURE

  1. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Click here

  2. REMOVE BACK-UP LIGHT SWITCH ASSEMBLY

    1. C304070

      Disconnect the back-up light switch assembly connector.

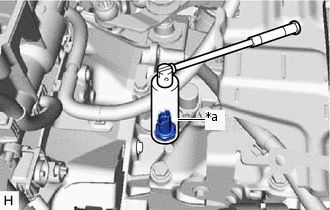

    2. C304071C01

      *a

      22 mm Deep Socket Wrench

      Using a 22 mm deep socket wrench, remove the back-up light switch assembly from the manual transaxle assembly.
