AUDIO AND VISUAL SYSTEM GENERAL


  1. OUTLINE


    1. Audio Head Unit


      1. 4 types of radio receiver assemblies are available for the audio head unit on models for G.C.C. countries, 1 type is available on models for Europe, 4 types are available on models for general countries and 4 types are available on models for South Africa.

      2. 2-speaker, 4-speaker and 6-speaker systems are available respectively.

    2. Bluetooth Audio System


      1. The Bluetooth audio system enables the users to listen to the music stored in a Bluetooth-compliant portable audio device (Bluetooth audio player) through a Bluetooth connection.

      2. The Bluetooth audio system can operate a Bluetooth audio player through the radio receiver assembly.

    3. Bluetooth Hands-free System


      1. The Bluetooth hands-free system enables drivers to place or receive phone calls using a cellular phone without releasing their hands from the steering wheel.

      2. For safety, some functions of the Bluetooth hands-free system may not be selectable while the vehicle is being driven.

        A01EZK9 "Bluetooth" is a trademark owned by Bluetooth SIG, Inc.

    4. No. 1 Stereo Jack Adapter Assembly


      1. A No. 1 stereo jack adapter assembly is used by the audio system as an input terminal for portable audio devices.

      2. A USB port is provided that enables operation of a portable audio player (USB type) or an iPod.

        Tech Tips


        • USB and iPod operation functions may not operate in certain conditions or with certain models.

        • iPod is a trademark of Apple Inc. that has been registered in the U.S.A. and other countries.

    5. Steering Pad Switch Assembly


      1. Steering pad switches that support the respective equipment are available.

  2. SPECIFICATION


    1. Audio Head Unit

      Models for G.C.C. Countries
      Design Specification
      A01EZ86

      • AM/FM Tuner

      • Cassette Player

      • 2-speaker System

      • Manufacturer: FUJITSU TEN
      A01EZPC

      • AM/FM Tuner

      • CD-TEXT Display Function

      • CD Player

      • MP3 and WMA Playback Function*

      • 2-speaker System

      • Manufacturer: FUJITSU TEN
      A01EZFN

      • AM/FM Tuner

      • CD-TEXT Display Function

      • CD Player

      • MP3 and WMA Playback Function*

      • iPod Operation Function

      • Stereo Jack Adapter (USB, AUX Port)

      • 4-speaker System

      • Manufacturer: FUJITSU TEN
      A01EZBN

      • 6.1-inch Display

      • AM/FM Tuner

      • CD-TEXT Display Function

      • CD Player

      • MP3 and WMA Playback Function*

      • iPod Operation Function

      • Stereo Jack Adapter (USB, AUX Port)

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • 6-speaker System

      • Manufacturer: Panasonic

      Tech Tips

      *: MPEG Audio Layer-3 (MP3) and Windows Media Audio (WMA)

      Models for South Africa
      Design Specification
      A01EZPC

      • AM/FM Tuner

      • CD-TEXT Display Function

      • CD Player

      • MP3 and WMA Playback Function*

      • 2-speaker System or 6-speaker System

      • Manufacturer: FUJITSU TEN
      A01EZ8G

      • AM/FM Tuner

      • CD-TEXT Display Function

      • CD Player

      • MP3 and WMA Playback Function*

      • Radio Data System (RDS)

      • 2-speaker System or 4-speaker System

      • Manufacturer: FUJITSU TEN
      A01EZ52

      • AM/FM Tuner

      • CD-TEXT Display Function

      • CD Player

      • MP3 and WMA Playback Function*

      • iPod Operation Function

      • Stereo Jack Adapter (USB, AUX Port)

      • Radio Data System (RDS)

      • 2-speaker System or 4-speaker System

      • Manufacturer: FUJITSU TEN
      A01EZDI

      • 6.1-inch Display

      • AM/FM Tuner

      • CD-TEXT Display Function

      • CD Player

      • MP3 and WMA Playback Function*

      • iPod Operation Function

      • Stereo Jack Adapter (USB, AUX Port)

      • Radio Data System (RDS)

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • 6-speaker System

      • Manufacturer: Panasonic

      Tech Tips

      *: MPEG Audio Layer-3 (MP3) and Windows Media Audio (WMA)

      Models for Europe
      Design Specification
      A01EZAI

      • 6.1-inch Display

      • AM/FM Tuner

      • CD-TEXT Display Function

      • CD Player

      • MP3 and WMA Playback Function*

      • iPod Operation Function

      • Stereo Jack Adapter (USB, AUX Port)

      • Radio Data System (RDS)

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • 6-speaker System

      • Manufacturer: Panasonic

      Tech Tips

      *: MPEG Audio Layer-3 (MP3) and Windows Media Audio (WMA)

      Models for General Countries
      Design Specification
      A01EZPC

      • AM/FM Tuner

      • CD-TEXT Display Function

      • CD Player

      • MP3 and WMA Playback Function*

      • 2-speaker System or 4-speaker System

      • Manufacturer: FUJITSU TEN
      A01EZFN

      • AM/FM Tuner

      • CD-TEXT Display Function

      • CD Player

      • MP3 and WMA Playback Function*

      • iPod Operation Function

      • Stereo Jack Adapter (USB, AUX Port)

      • 4-speaker System

      • Manufacturer: FUJITSU TEN
      A01EZME

      • AM/FM Tuner

      • CD-TEXT Display Function

      • CD Player

      • MP3 and WMA Playback Function*

      • iPod Operation Function

      • Stereo Jack Adapter (USB, AUX Port)

      • 6-speaker System

      • Manufacturer: FUJITSU TEN
      A01EZJ6

      • 6.1-inch Display

      • AM/FM Tuner

      • CD-TEXT Display Function

      • CD Player

      • DVD Player

      • MP3 and WMA Playback Function*

      • iPod Operation Function

      • Stereo Jack Adapter (USB, AUX Port)

      • Radio Data System (RDS)

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • 6-speaker System

      • Manufacturer: Panasonic

      Tech Tips

      *: MPEG Audio Layer-3 (MP3) and Windows Media Audio (WMA)

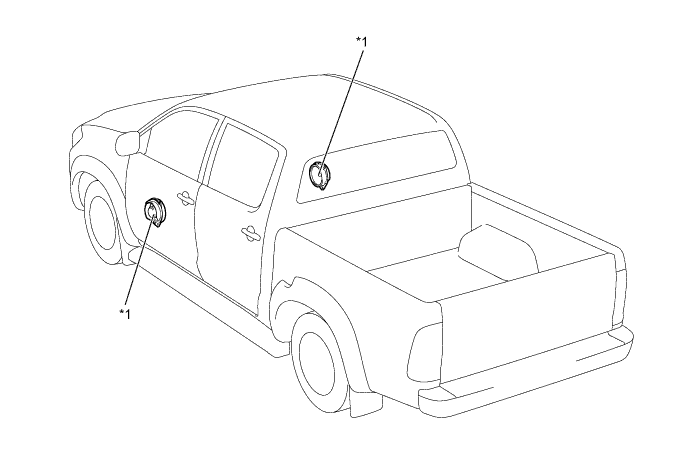

    2. 2-speaker System

      A01EZLWE01
      Location Speaker Type Caliber Impedance Input Range
      *1 Front Speaker x 2 160 mm (6.4 in.) 4 Ω 20 W

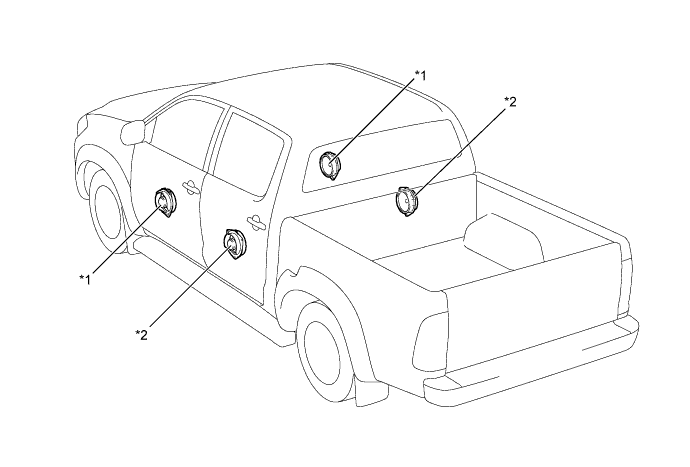

    3. 4-speaker System

      A01EZD3E01
      Location Speaker Type Caliber Impedance Input Range
      *1 Front Speaker x 2 160 mm (6.4 in.) 4 Ω 20 W
      *2 Rear Speaker x 2

      140 mm (5.5 in.)*1

      160 mm (6.4 in.)*2

      		 4 Ω 20 W

      Tech Tips

      *1: Extra cab models

      *2: Double cab models

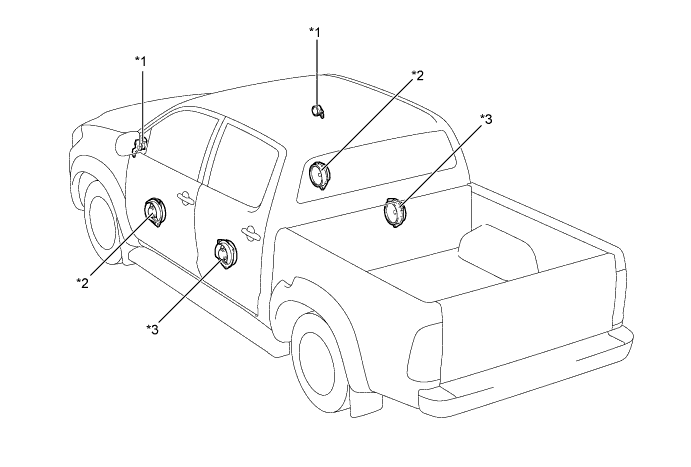

    4. 6-speaker System

      A01EZOME01
      Location Speaker Type Caliber Impedance Input Range
      *1 Tweeter x 2 25 mm (1.0 in.) 4 Ω 20 W
      *2 Front Speaker x 2 160 mm (6.4 in.) 4 Ω 20 W
      *3 Rear Speaker x 2

      140 mm (5.5 in.)*1

      160 mm (6.4 in.)*2

      		 4 Ω 20 W

      Tech Tips

      *1: Extra cab models

      *2: Double cab models

    5. Bluetooth Hands-free System


      1. The specifications for the Bluetooth hands-free system vary with the audio head unit that is used. The details are as follows:

        Function Radio and Display Receiver Assembly
        Call with Bluetooth Phone By Dial ●
        By Phonebook ● (1000 Cases)*1
        By Call History Dialed Number ● (10 Cases)
        Received Call ● (10 Cases)
        Missed Call ● (10 Cases)
        All Call History ● (30 Cases)
        By Speed Dial*2 ● (18 Cases)
        Receive with Bluetooth Phone/Talk on Bluetooth Phone Receiving Call*2 Received Manually ●
        Received Refusal ●
        Interrupt Call*2 ●
        Tone Sending By Dial ●
        Recognition/Connection Registering Bluetooth Phone ● (5 Bluetooth Phones)
        Connecting Bluetooth Phone Connected Automatically ●
        Connected Manually ●

        Tech Tips

        ●: Available

        *1: 1000 cases per telephone (Bluetooth phone)

        *2: Can be performed while driving

  3. MAIN FEATURES


    1. Radio and Display Receiver Assembly


      1. A 6.1-inch display with a Thin Film Transistor (TFT) is used.

      2. The audio screen, vehicle information screen and rear view monitor screen* can be displayed.


        • *: Models with monitor system

      3. The display language can be selected from English, French*, Spanish*, German*, Italian*, Dutch* and Russian*.


        • *: Models for Europe

  4. PRECAUTION


    1. Some of the functions of a system that uses a Bluetooth connection may not operate, depending on the specification or profile of the Bluetooth phone or Bluetooth audio player that is being used. The Bluetooth specifications and profiles required for the operation are as follows:

      Specification/Profile Item Bluetooth Hands-free System Bluetooth Audio System
      Bluetooth Specification Version 1.2 or higher Required Required
      Version 2.0 + EDR* or higher Recommended Recommended
      Profile Hands-Free Profile (HFP) Version 1.0 or higher Required -
      Hands-Free Profile (HFP) Version 1.5 or higher Recommended -
      Object Push Profile (OPP) Version 1.1 or higher Required -
      Phone Book Access Profile (PBAP) Version 1.0 or higher Required -
      Advanced Audio Distribution Profile (A2DP) Version 1.0 or higher - Required
      Audio/Video Remote Control Profile (AVRCP) Version 1.0 - Required
      Audio/Video Remote Control Profile (AVRCP) Version 1.3 - Recommended
      Audio/Video Remote Control Profile (AVRCP) Version 1.4 or higher - Recommended

      Tech Tips

      -: Not available

      *: Enhanced Data Rate
