STEERING COLUMN SYSTEM


  1. CONSTRUCTION


    1. The manual tilt and telescopic mechanism allows adjustment of the steering wheel position in the vertical and longitudinal (extending and retracting) directions through lever operation. This provides the driver with the most comfortable driving position.

    2. The tilt adjustment range is 40 mm (1.57 in.) and the telescopic adjustment range is 40 mm (1.57 in.).

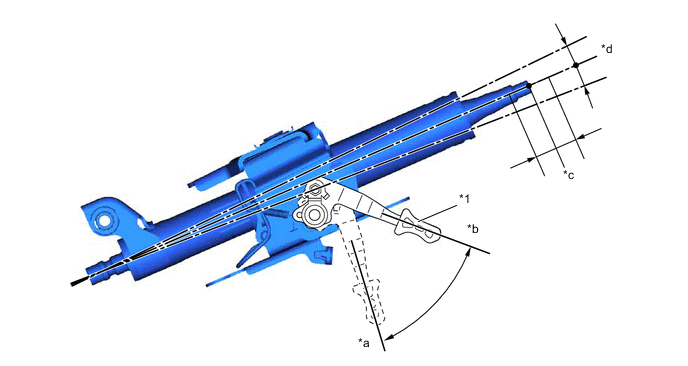

      A01KXISC01
      *1 Tilt and Telescopic Lever - -
      *a Free Position *b Lock Position
      *c Telescopic Stroke 40 mm (1.57 in.) *d Tilt Stroke 40 mm (1.57 in.)
