REAR CENTER SEAT INNER BELT ASSEMBLY(w/o Rear No. 2 Seat) INSTALLATION

PROCEDURE


  1. INSTALL REAR CENTER SEAT INNER BELT ASSEMBLY


    1. A01RA9WC02
      *a Protruding Part

      Install the rear center seat inner belt assembly with the nut.

      Torque:
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }

      Note

      Do not allow the anchor part of the rear center seat inner belt assembly to overlap the protruding part of the seatback frame.

    2. w/ Seat Belt Warning System:


      1. Engage the clamp.

      2. Connect the connector.

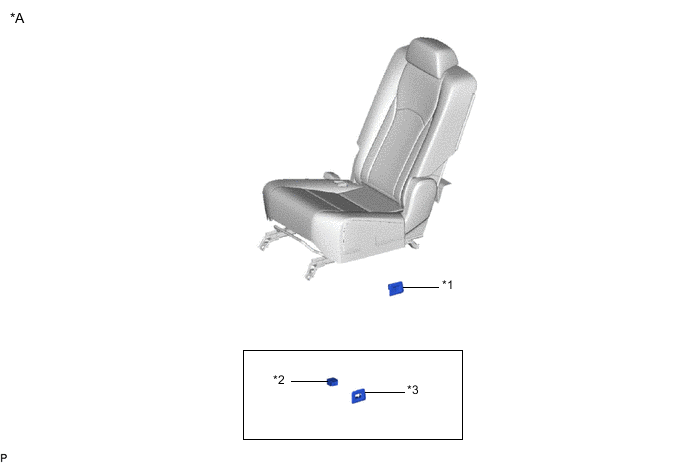

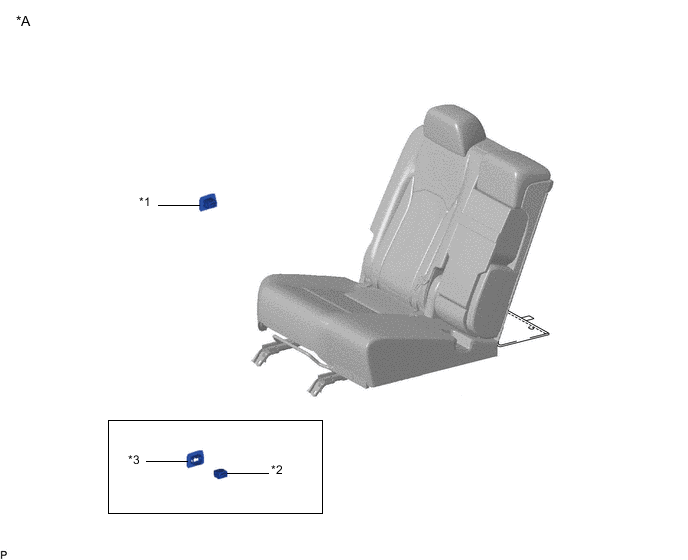

  2. INSTALL REAR SEAT ASSEMBLY LH

    Click here
