AIR CONDITIONING SYSTEM(for Automatic Air Conditioning System) PARTS LOCATION

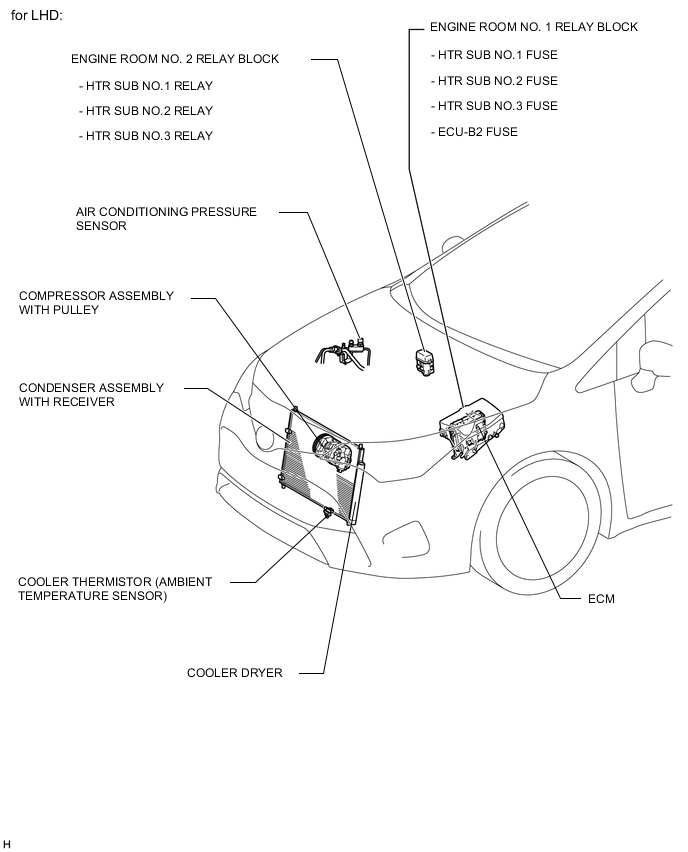

ILLUSTRATION

A004OHPE02

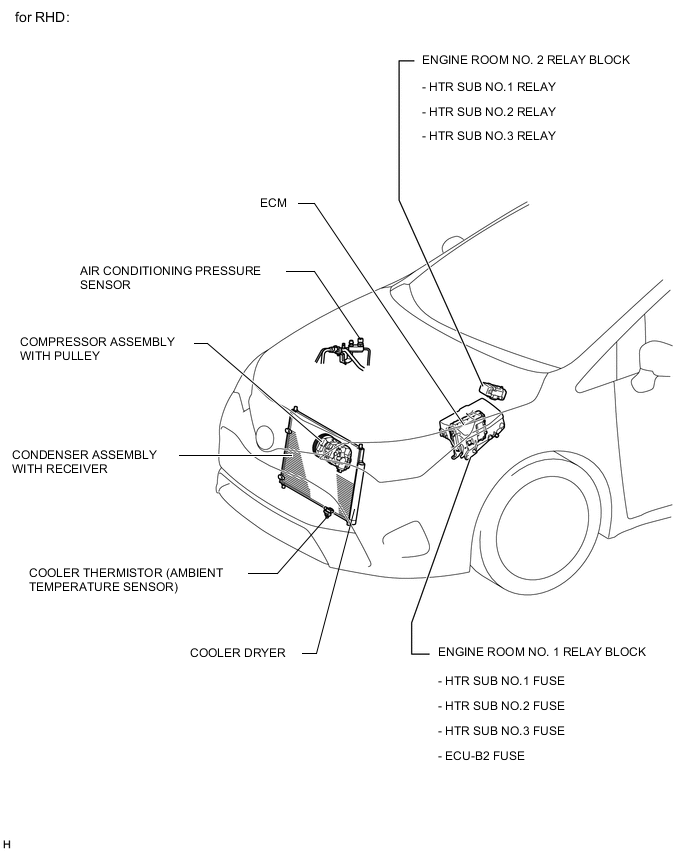

ILLUSTRATION

A004SWPE02

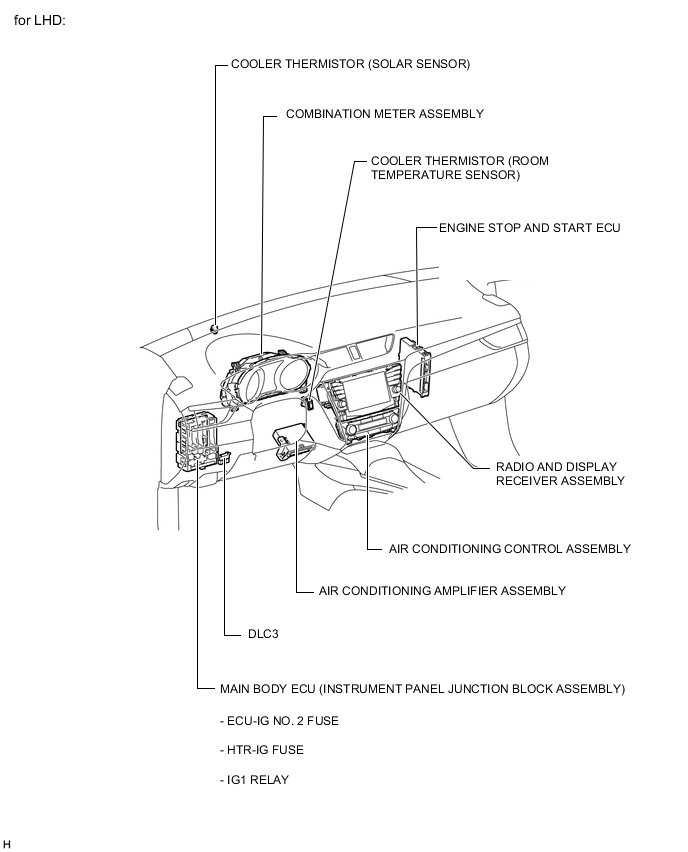

ILLUSTRATION

A004MXCE02

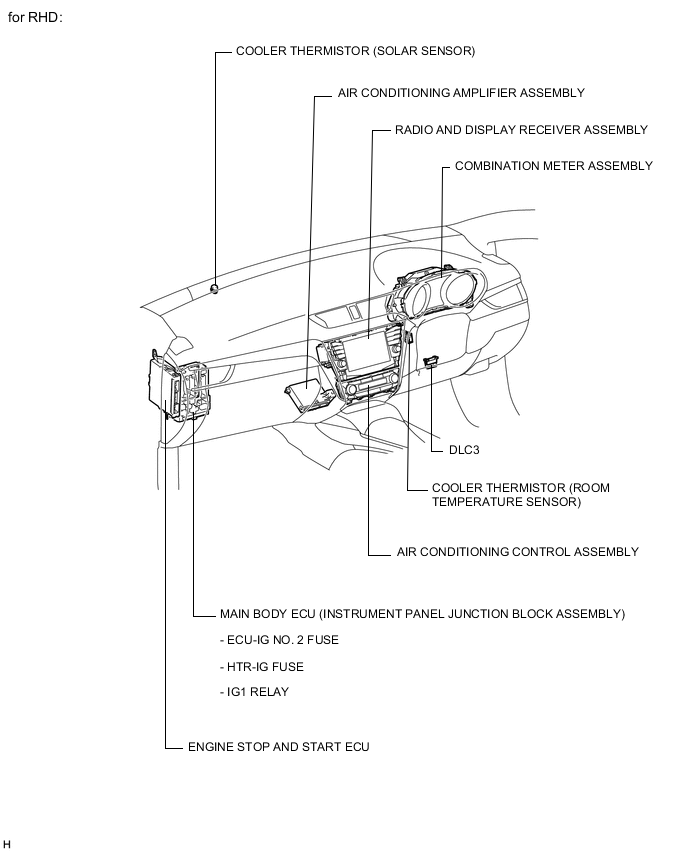

ILLUSTRATION

A004TOWE02

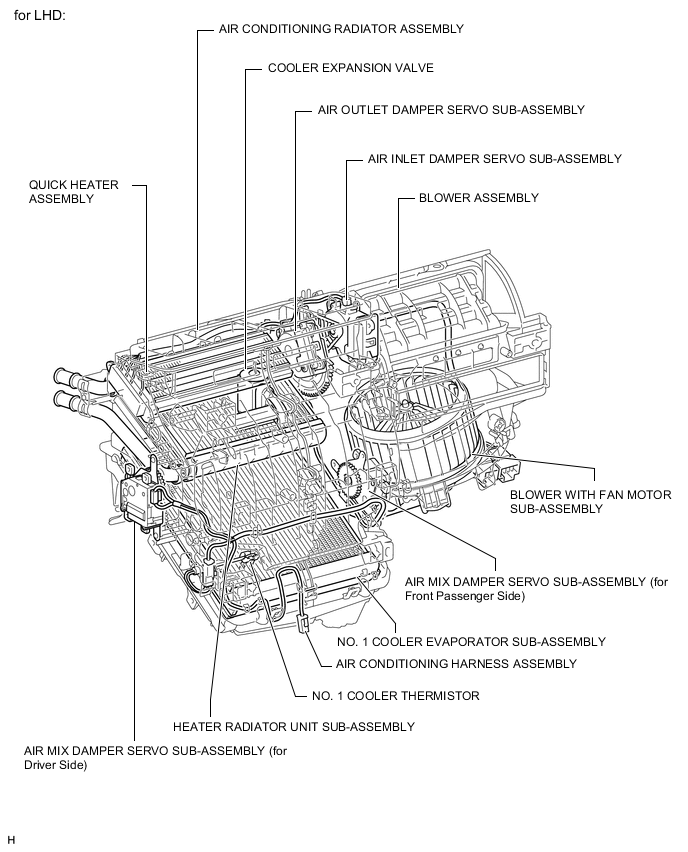

ILLUSTRATION

A004QL7E10

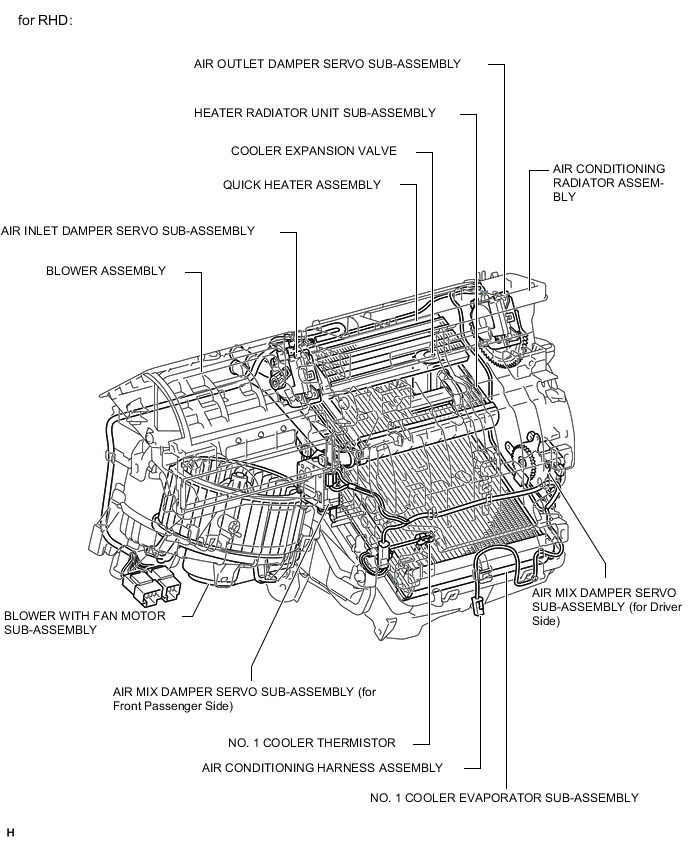

ILLUSTRATION

A004QVNE03
