FRONT SPEED SENSOR REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • The procedure listed below is for the LH side.

  • Other than areas where instructions are provided, use the same procedures for the RH and LH sides.

PROCEDURE

  1. REMOVE FRONT WHEEL

  2. REMOVE FRONT SKID CONTROL SENSOR WIRE

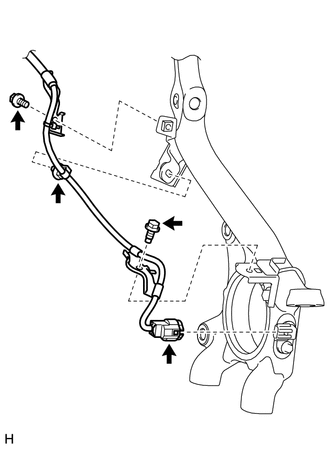

    1. C212840

      Disconnect the connector from the front speed sensor.

    2. Remove the 2 bolts and 2 harness clamps.

    3. Detach the clip.

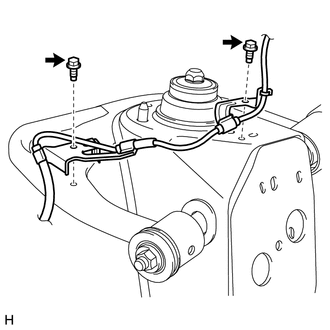

    4. C212841

      Remove the 2 bolts and 2 harness clamps.

    5. Disconnect the connector as follows.

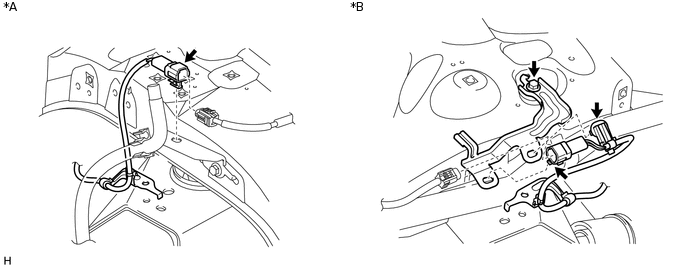

      C212843C01

      *A

      for LH

      *B

      for RH

      1. for LH:

        1. Disconnect the connector.

        2. Detach the connector.

      2. for RH:

        1. Disconnect the connector.

        2. Detach the connector from the skid control sensor clamp.

        3. Detach the clip.

        4. Remove the bolt and skid control sensor clamp.

  3. REMOVE SKID CONTROL SENSOR CLAMP

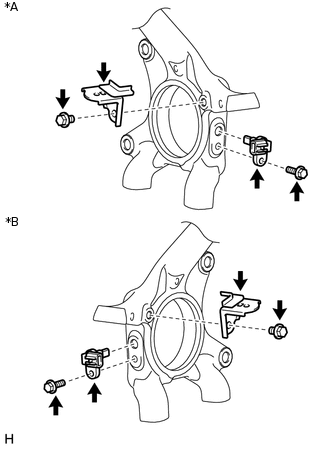

    1. C212842C01

      *A

      for LH

      *B

      for RH

      Remove the bolt and skid control sensor clamp from the knuckle.

  4. REMOVE FRONT SPEED SENSOR

    1. Remove the bolt and speed sensor from the knuckle.

      Note:

      Pull out the sensor while trying as much as possible not to rotate it.
