EGR VALVE COMPONENTS
ILLUSTRATION
| *1 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *2 | AIR CLEANER CAP WITH AIR CLEANER HOSE |
ILLUSTRATION
| *1 | EGR VALVE WITH COOLER ASSEMBLY | *2 | EGR VALVE BRACKET |
| *3 | ENGINE WIRE | *4 | EGR PIPE CONNECTOR |
| *5 | NO. 2 EGR PIPE | *6 | WATER HOSE SUB-ASSEMBLY |
| *7 | NO. 2 WATER BY-PASS HOSE | *8 | NO. 3 WATER BY-PASS HOSE |
| *9 | NO. 4 WATER BY-PASS HOSE | *10 | WATER HOSE |
| *11 | EGR COOLER GASKET | *12 | NO. 2 EGR PIPE GASKET |
| *13 | ENGINE COVER JOINT | *14 | EGR INLET GASKET |
| *15 | FUEL PUMP PROTECTOR | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

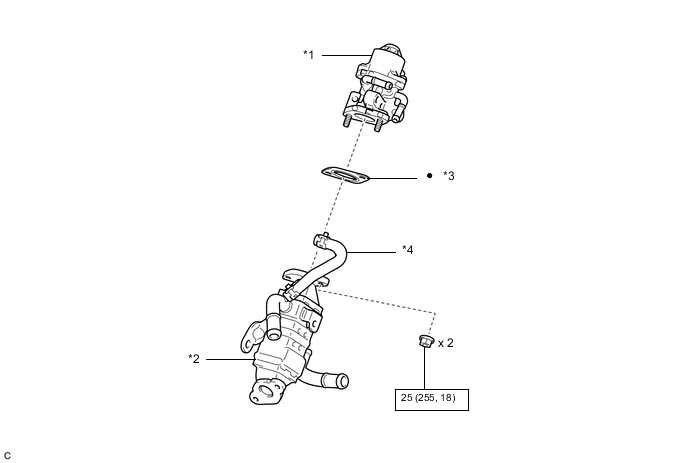

ILLUSTRATION
| *1 | EGR VALVE ASSEMBLY | *2 | EGR COOLER ASSEMBLY |
| *3 | EGR VALVE GASKET | *4 | NO. 1 WATER BY-PASS HOSE |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
