FRONT LOWER BALL JOINT INSTALLATION

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. INSTALL FRONT LOWER BALL JOINT ASSEMBLY LH

    1. Secure the front axle assembly between aluminum plates in a vise.

      Note:

      When using a vise, do not overtighten it.

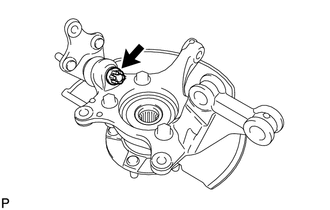

    2. C117422

      Install the front lower ball joint assembly LH to the front axle assembly with the nut.

      133 N*m

      1356 kgf*cm

      98 ft.*lbf

    3. Install a new cotter pin.

      Note:

      • If the holes for the clip are not aligned, align the holes by tightening the nut as necessary up to an additional 60°.

      • Make sure the claws of the clip are fully inserted into the grooves of the nut.

  2. INSTALL FRONT AXLE ASSEMBLY LH

    Click here
