FRONT DOOR COMPONENTS
ILLUSTRATION
*A |
for Driver Side with Power Window |
*B |
for Front Passenger Side with Power Window |
*C |
for 3 Door |
*D |
for 5 Door |
*E |
w/o Power Window |
*F |
w/o Mirror Heater |
*G |
w/ Mirror Heater |
- |
- |
*1 |
FRONT DOOR INNER GLASS WEATHERSTRIP ASSEMBLY |
*2 |
FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY |
*3 |
FRONT DOOR LOWER FRAME BRACKET GARNISH |
*4 |
FRONT DOOR TRIM BOARD SUB-ASSEMBLY |
*5 |
FRONT DOOR TRIM COVER |
*6 |
FRONT DOOR WINDOW REGULATOR HANDLE ASSEMBLY |
*7 |
POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL |
*8 |
POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL |
*9 |
FRONT DOOR WINDOW REGULATOR HANDLE SHAFT SNAP RING |
- |
- |
ILLUSTRATION
*A |
for 3 Door |
*B |
for 5 Door |
*C |
w/o Power Window |
*D |
w/ Power Window |
*E |
w/o Mirror Heater |
*F |
w/ Mirror Heater |
*1 |
FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY |
*2 |
FRONT DOOR GLASS RUN |
*3 |
FRONT DOOR GLASS SUB-ASSEMBLY |
*4 |
FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY |
*5 |
FRONT DOOR SERVICE HOLE COVER |
*6 |
FRONT DOOR WINDOW REGULATOR ASSEMBLY |
*7 |
FRONT NO. 1 SPEAKER ASSEMBLY |
*8 |
NO. 1 DOOR TRIM BRACKET |
*9 |
NO. 2 FRONT DOOR STIFFENER CUSHION |
*10 |
OUTER REAR VIEW MIRROR ASSEMBLY WITH COVER |
*11 |
SIDE AIRBAG SENSOR ASSEMBLY |
*12 |
BUTYL TAPE |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
 |
MP grease |
- |
- |
ILLUSTRATION
*A |
for Driver Side |
*B |
for Front Passenger Side |
*C |
w/o Lock Cylinder |
*D |
w/ Lock Cylinder |
*E |
w/o Entry and Start System |
*F |
w/ Entry and Start System |
*1 |
FRONT DOOR FRONT OUTSIDE HANDLE PAD |
*2 |
FRONT DOOR LOCK ASSEMBLY |
*3 |
FRONT DOOR LOCK OPEN ROD |
*4 |
FRONT DOOR OUTSIDE HANDLE ASSEMBLY |
*5 |
FRONT DOOR OUTSIDE HANDLE COVER |
*6 |
FRONT DOOR OUTSIDE HANDLE COVER WITH LOCK CYLINDER ASSEMBLY |
*7 |
FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY |
*8 |
FRONT DOOR REAR OUTSIDE HANDLE PAD |
*9 |
LOCK CYLINDER ASSEMBLY |
*10 |
HOLE PLUG |
*11 |
DOOR LOCK WIRING HARNESS SEAL |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
|
MP grease |
- |
- |

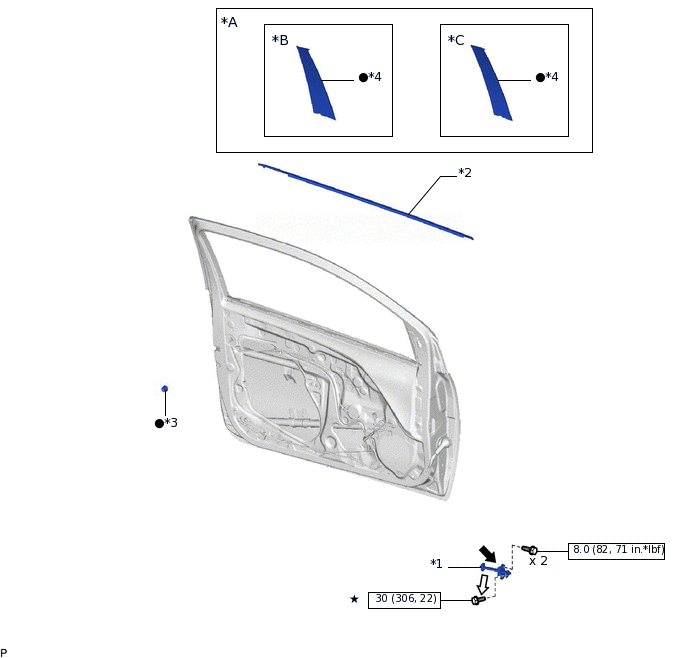

ILLUSTRATION
*A |
w/ Black Out Tape |
*B |
for 3 Door |
*C |
for 5 Door |
- |
- |
*1 |
FRONT DOOR CHECK ASSEMBLY |
*2 |
FRONT DOOR GLASS OUTER WEATHERSTRIP |
*3 |
FRONT DOOR PANEL CUSHION |
*4 |
NO. 1 BLACK OUT TAPE |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
|
MP grease |
 |
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent |
★ |
Precoated part |
- |
- |
