FUEL LID LOCK CONTROL CABLE ASSEMBLY(for LHD) REMOVAL

PROCEDURE

  1. REMOVE FRONT SEAT ASSEMBLY LH

    1. for Manual Seat:

      Click here

    2. for Power Seat:

      Click here

  2. REMOVE PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY (w/ Partition Net)

    Click here

  3. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Click here

  4. REMOVE DECK BOARD ASSEMBLY

    Click here

  5. REMOVE REAR NO. 3 FLOOR BOARD

    Click here

  6. REMOVE DECK TRIM SIDE COVER BASE LH

    Click here

  7. REMOVE DECK FLOOR BOX LH

    Click here

  8. REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

    Click here

  9. REMOVE REAR FLOOR FINISH PLATE (w/o Spare Tire, for Compact Spare Tire)

    Click here

  10. REMOVE REAR DECK TRIM COVER (for Full Size Spare Tire)

    Click here

  11. REMOVE REAR SEAT ASSEMBLY

    Click here

  12. REMOVE FRONT DOOR SCUFF PLATE LH

    Click here

  13. REMOVE COWL SIDE TRIM BOARD LH

    Click hereClick here

  14. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Click here

  15. REMOVE REAR DOOR SCUFF PLATE LH

    Click here

  16. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Click here

  17. REMOVE DECK TRIM SERVICE HOLE COVER

    Click here

  18. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Click here

  19. REMOVE OUTER LAP BELT ANCHOR COVER (for LH Side)

    Click here

  20. REMOVE LOWER CENTER PILLAR GARNISH LH

    Click here

  21. REMOVE FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY

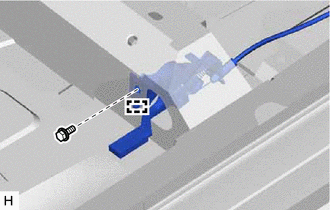

    1. B338190

      Remove the bolt and detach the guide.

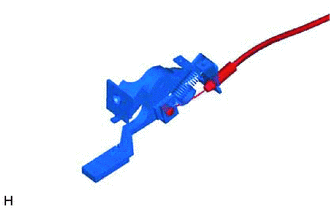

    2. B338191

      Disconnect the fuel lid lock control cable sub-assembly and remove the fuel lid lock open lever sub-assembly.

  22. REMOVE FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY

    1. Partially remove the floor carpet.

      Tip:

      It is not necessary to fully remove the floor carpet. Partially remove it so that the fuel lid lock control cable sub-assembly can be removed.

    2. B338141

      Detach the 2 claws and disconnect the fuel lid lock control cable sub-assembly from the fuel filler opening lid lock retainer in the direction indicated by the arrow in the illustration.

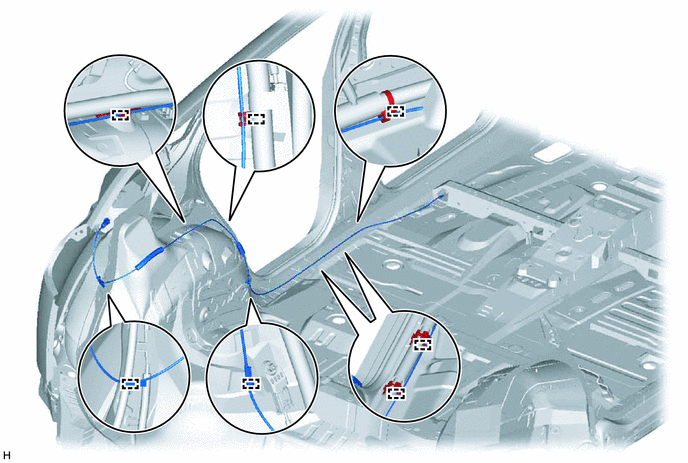

    3. Detach the 7 clamps and remove the fuel lid lock control cable sub-assembly.

      B338135

  23. REMOVE FUEL FILLER OPENING LID LOCK RETAINER

    1. B338142

      Turn the fuel filler opening lid lock retainer counterclockwise and remove the fuel filler opening lid lock retainer as shown in the illustration.
