ENGINE OIL COOLER INSTALLATION

PROCEDURE

1. INSTALL OIL COOLER ASSEMBLY

   1. Clean the oil cooler assembly contact surface on the oil cooler assembly mounting.

   2. Apply a light coat of engine oil to 3 new gaskets.

   3. Install the 3 gaskets to the oil cooler assembly.

   4. Temporarily install the oil cooler assembly with the union bolt, the nut and a new seal washer.

   5.

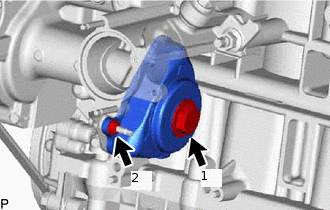

      Tighten the union bolt and nut in several steps in the sequence shown in the illustration.

      Union bolt

      60 N*m

      612 kgf*cm

      44 ft.*lbf

      Nut

      10 N*m

      102 kgf*cm

      7 ft.*lbf

2. INSTALL EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY

   Click here

3. ADD ENGINE OIL

   Click here

4. ADD ENGINE COOLANT

   Click here

5. INSPECT ENGINE OIL LEVEL

   Click here

6. INSPECT FOR OIL LEAK

   Click here

7. INSPECT FOR COOLANT LEAK

   Click here
