HORN REMOVAL

  1. REMOVE RADIATOR GRILLE SUB-ASSEMBLY

    Click here

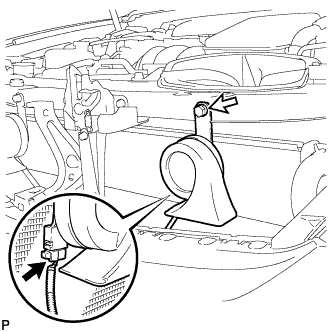

  2. REMOVE LOW PITCHED HORN ASSEMBLY

    1. Disconnect the connector.

      A011X8W

    2. Remove the bolt and low pitched horn assembly.

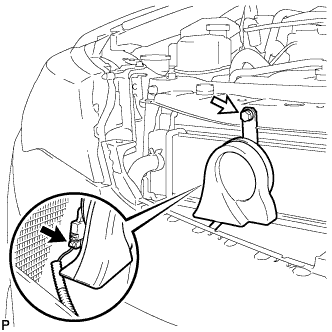

  3. REMOVE SUPER LOW PITCHED HORN ASSEMBLY (w/o Daytime Running Light)

    1. Disconnect the connector.

      A011VMS

    2. Remove the bolt and super low pitched horn assembly.

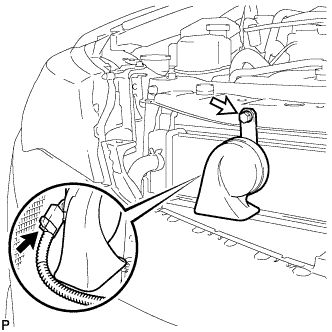

  4. REMOVE HIGH PITCHED HORN ASSEMBLY (w/ Daytime Running Light)

    1. Disconnect the connector.

      A011YE6

    2. Remove the bolt and high pitched horn assembly.
