CAN COMMUNICATION SYSTEM

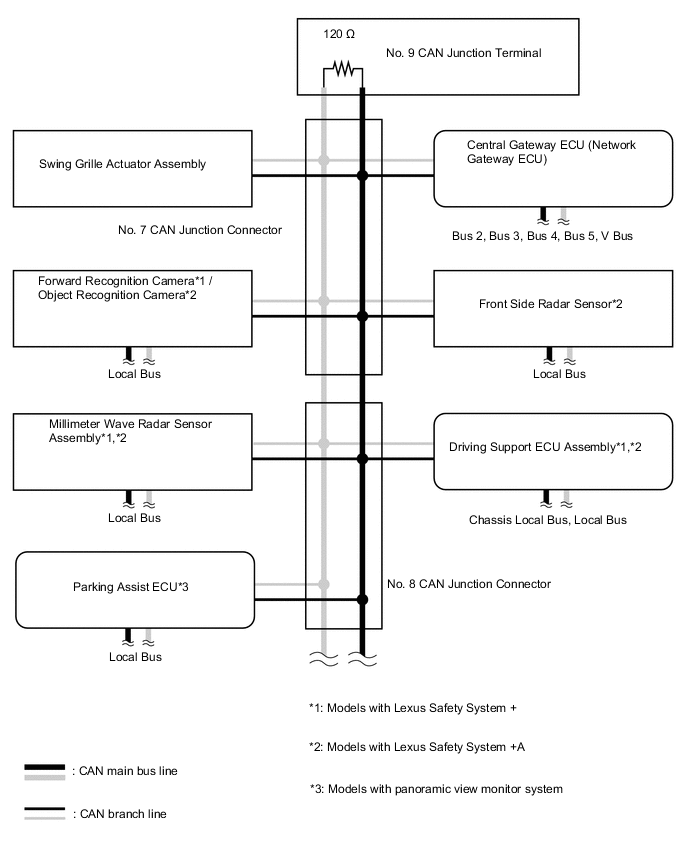

Figure 1. Bus 1 (1) (LHD models)

B003GW7E01

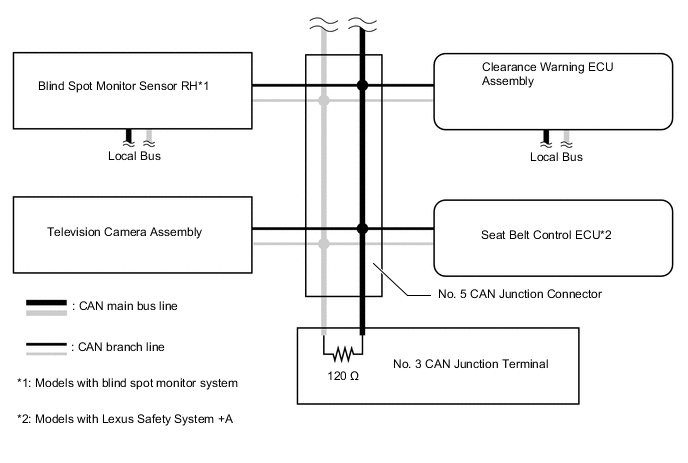

Figure 2. Bus 1 (2) (LHD models)

B003H4XE01

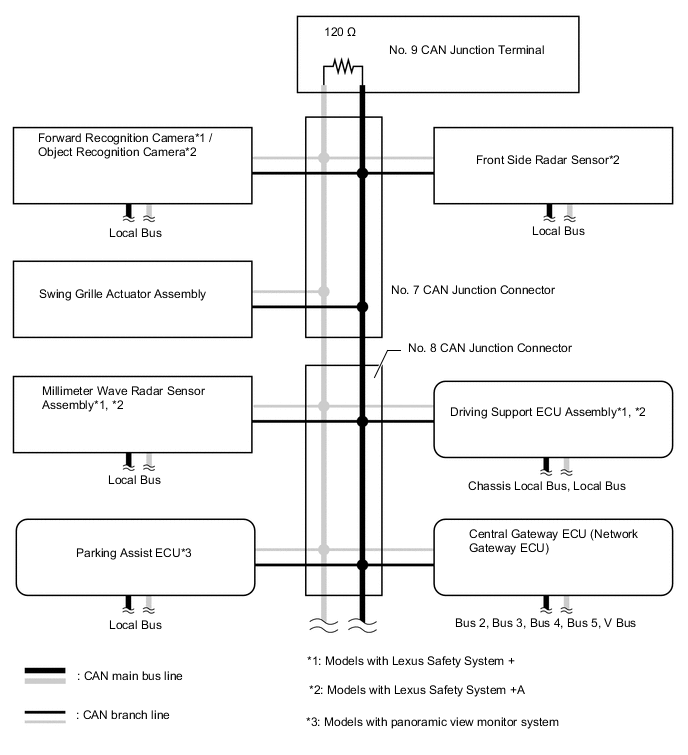

Figure 3. Bus 1 (1) (RHD models)

B003HASE01

Figure 4. Bus 1 (2) (RHD models)

B003H4XE01

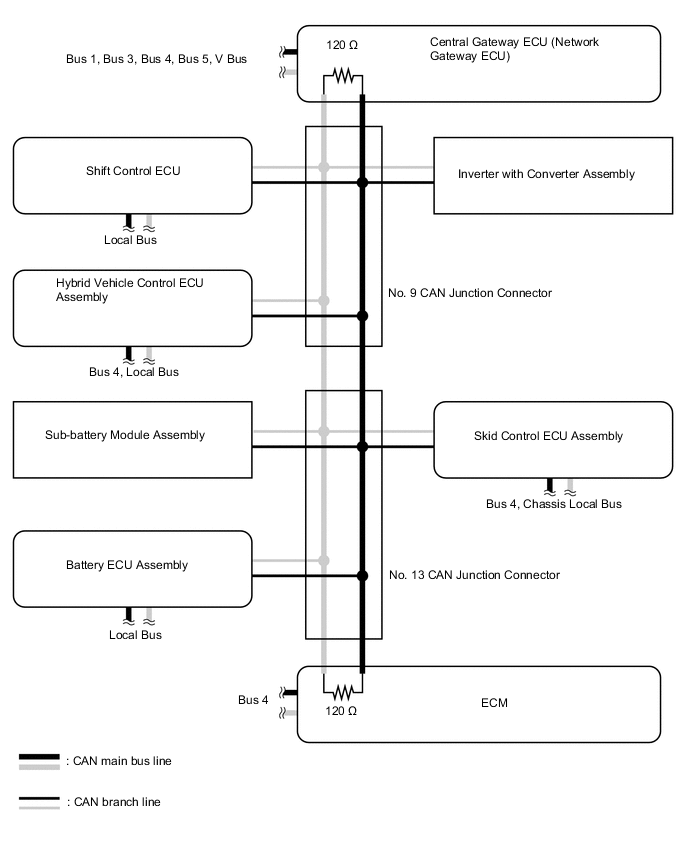

Figure 5. Bus 2 (LHD models)

B003GO8E01

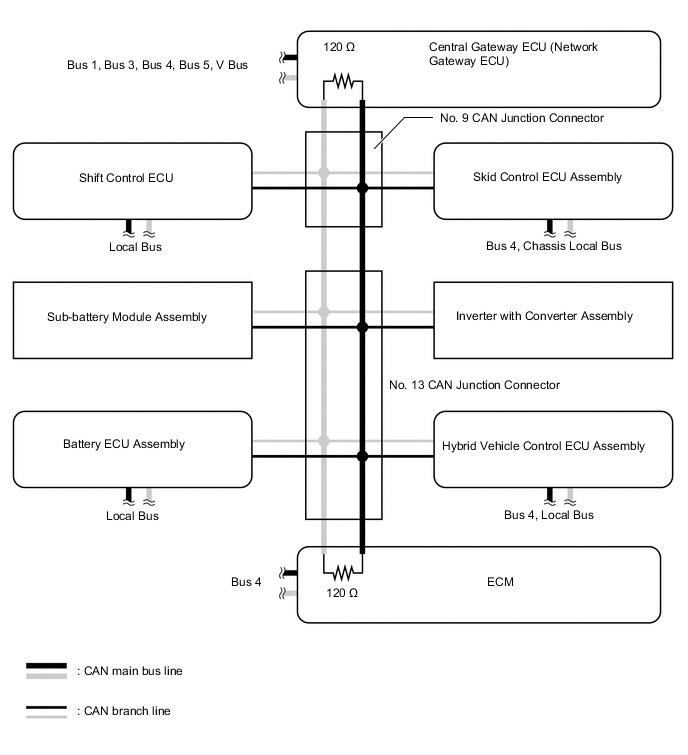

Figure 6. Bus 2 (RHD models)

B003H5PE02

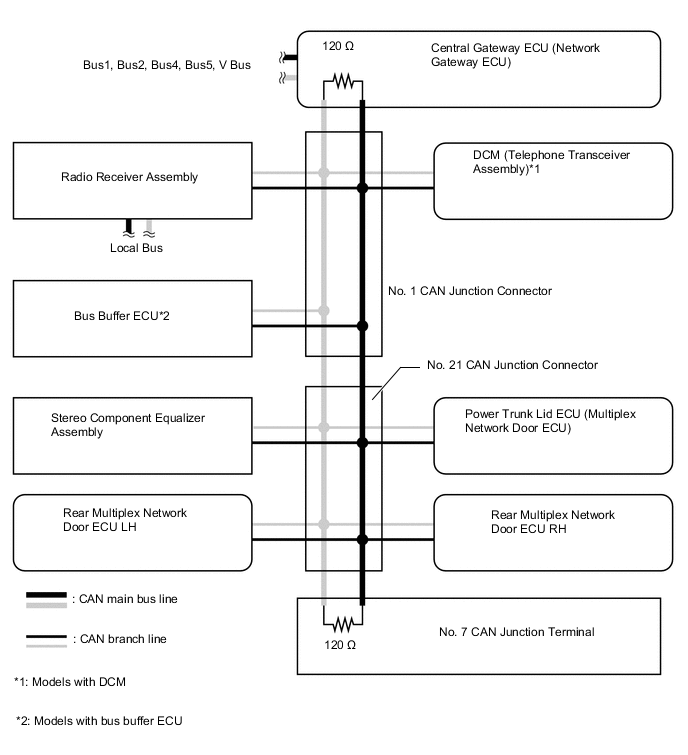

Figure 7. Bus 3

B003HBLE01

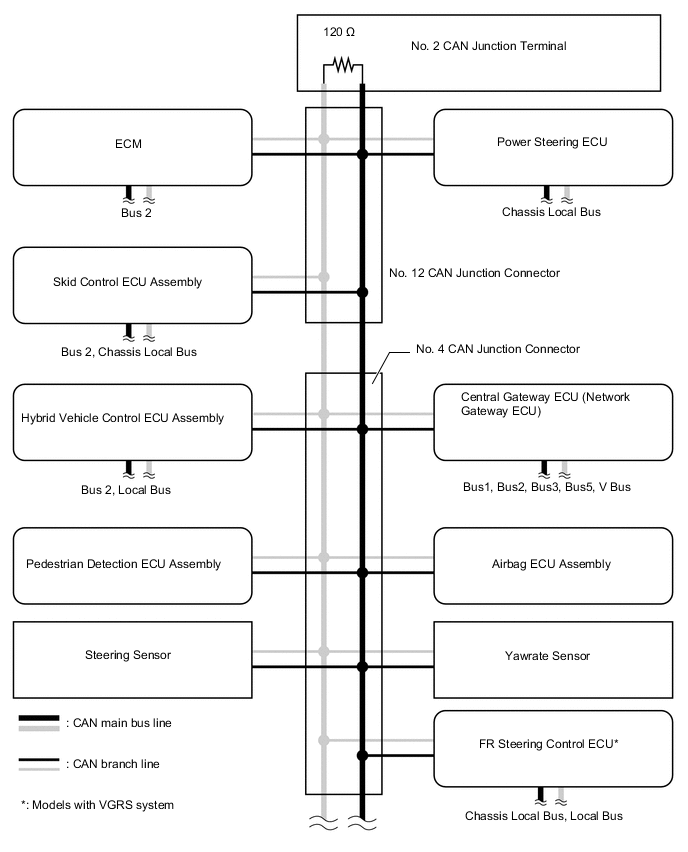

Figure 8. Bus 4 (1)

B003GH1E02

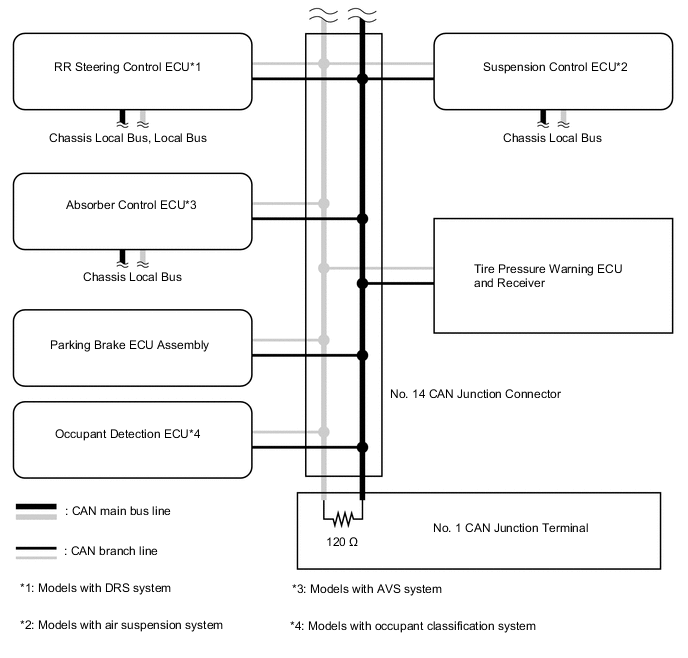

Figure 9. Bus 4 (2)

B003H3LE02

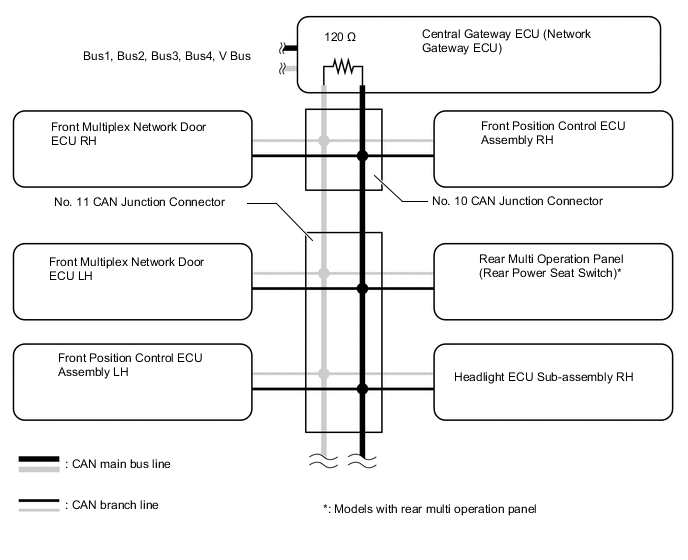

Figure 10. Bus 5 (1) (LHD models)

B003GEDE01

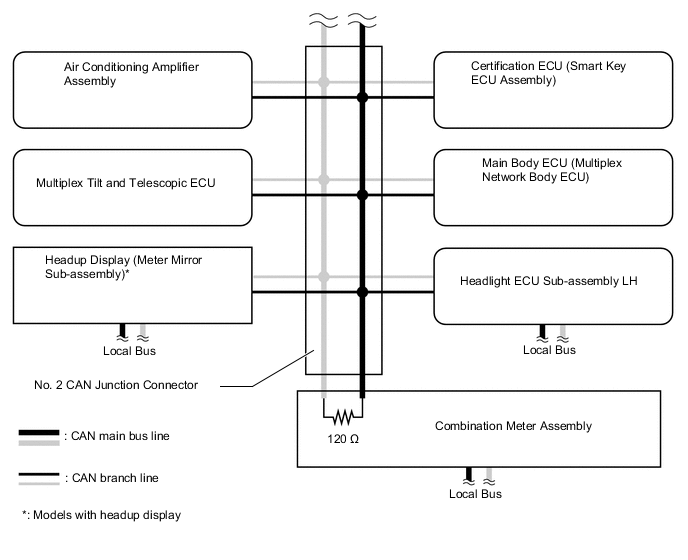

Figure 11. Bus 5 (2) (LHD models)

B003GTRE01

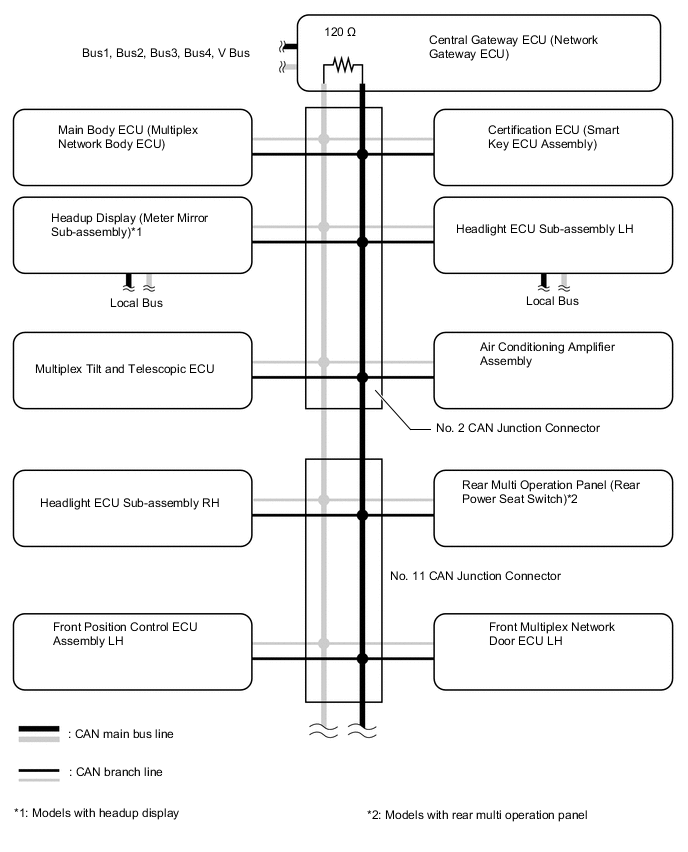

Figure 12. Bus 5 (1) (RHD models)

B003GHHE02

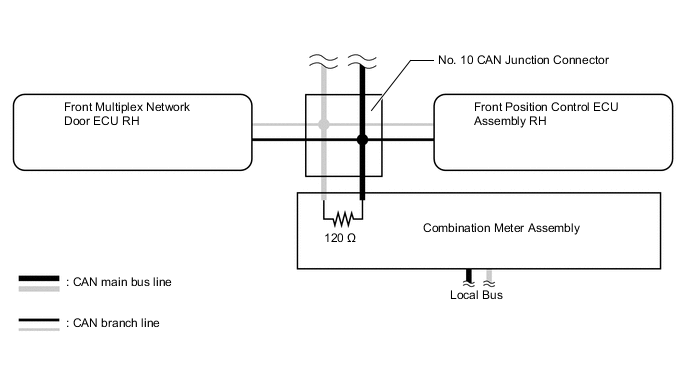

Figure 13. Bus 5 (2) (RHD models)

B003GDLE02

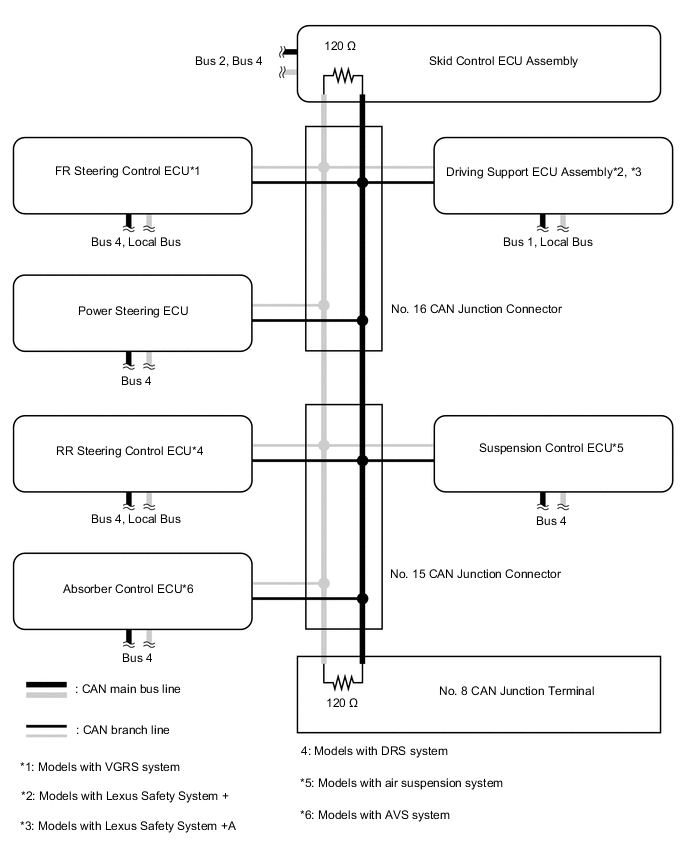

Figure 14. Chassis Local Bus

B003HE6E02

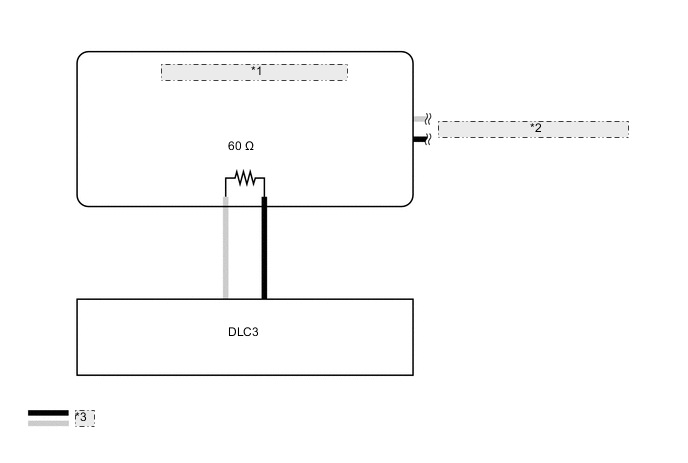

Figure 15. V Bus

B003GRXE02
*1 Central Gateway ECU (Network Gateway ECU)
*2 Bus 1, Bus 2, Bus 3, Bus 4, Bus 5
*3 CAN main bus line

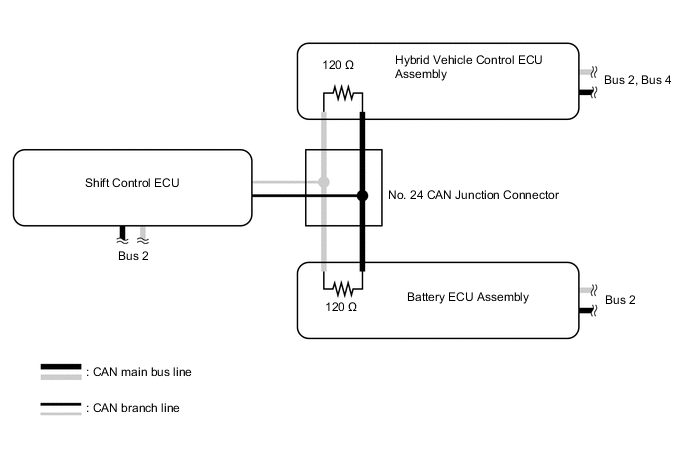

Figure 16. Local Bus (1)

B003GI9E02

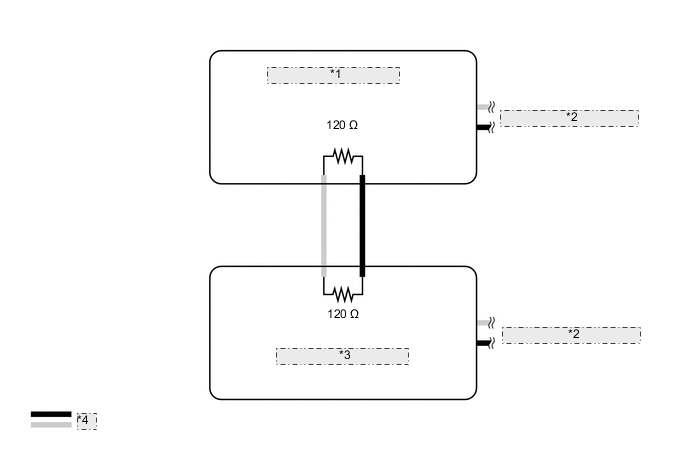

Figure 17. Local Bus (2) (Models with Lexus Dynamic Handling System)

B003H8NE03
*1 FR Steering Control ECU
*2 Bus 4, Chassis Local Bus
*3 RR Steering Control ECU
*4 CAN main bus line

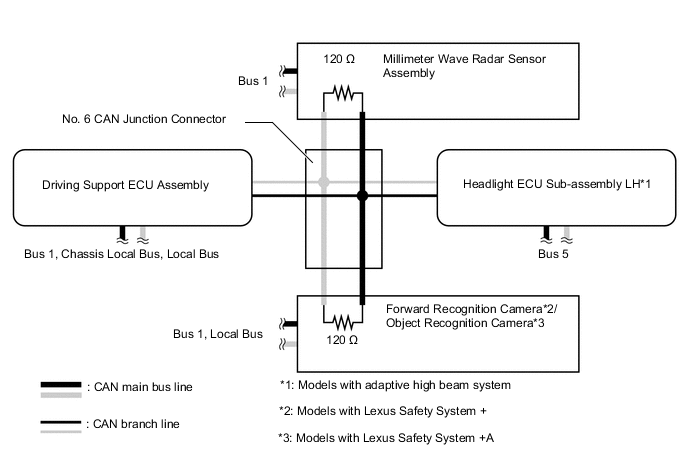

Figure 18. Local Bus (3) (Models with Lexus Safety System + or Lexus Safety System +A)

B003HIVE03

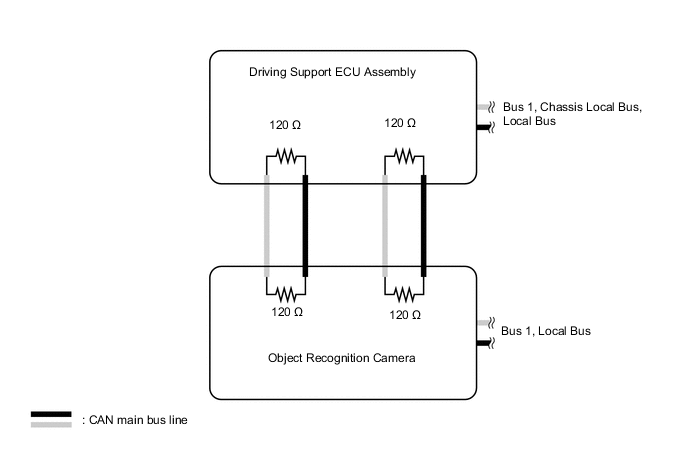

Figure 19. Local Bus (4) (Models with Lexus Safety System +A)

B003GN3E02

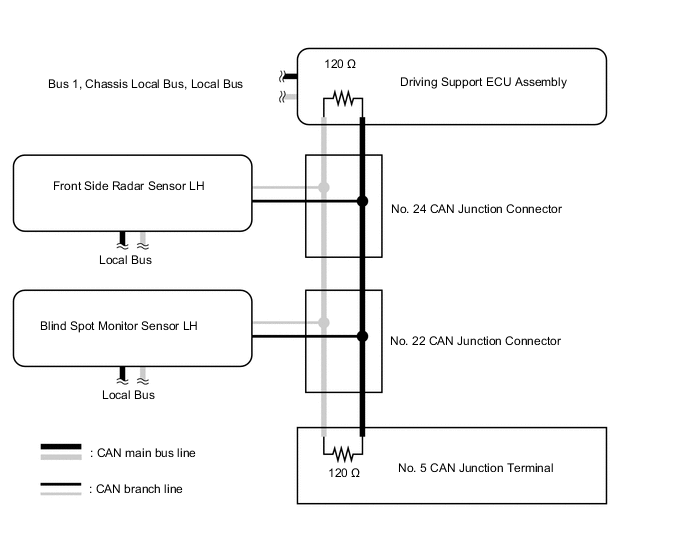

Figure 20. Local Bus (5) (Models with Lexus Safety System +A)

B003H4OE01

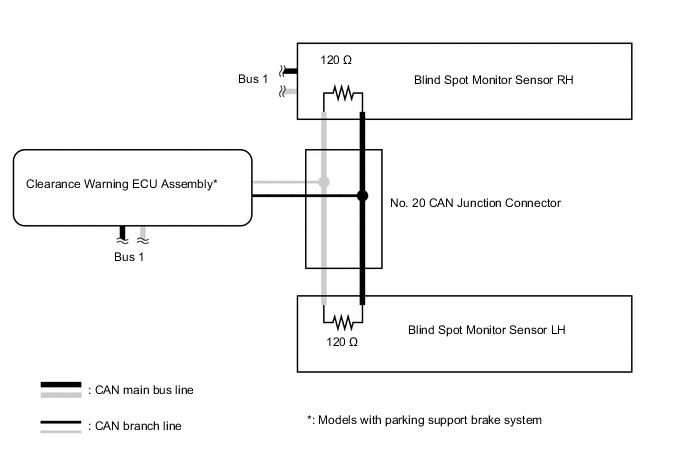

Figure 21. Local Bus (6) (Models with Blind Spot Monitor System)

B003GH8E01

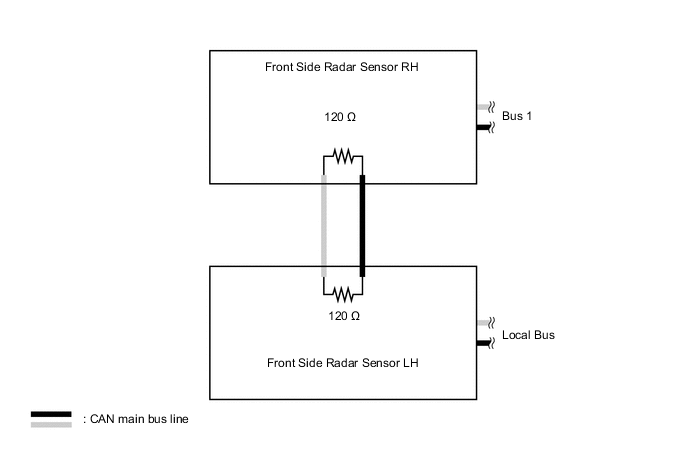

Figure 22. Local Bus (7) (Models with Lexus Safety System +A)

B003H8CE02

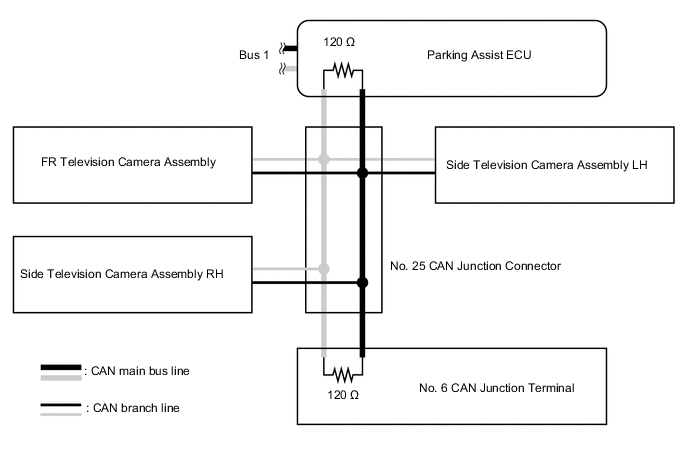

Figure 23. Local Bus (8) (Models with Panoramic View Monitor System)

B003GDFE02

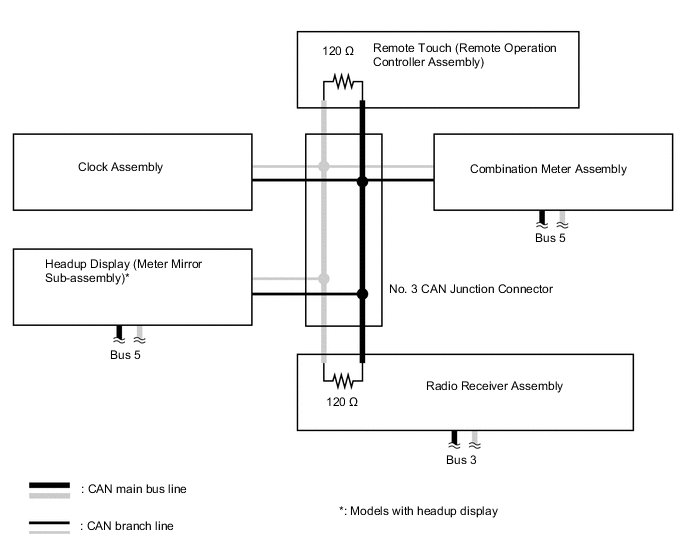

Figure 24. Local Bus (9)

B003HIJE02
