BLIND SPOT MONITOR SYSTEM

B003HGZC05
*1

Outer Rear View Mirror Assembly RH


  • Outer Rear View Mirror Indicator Light

 *2

Outer Rear View Mirror Assembly LH


  • Outer Rear View Mirror Indicator Light
*3 Blind Spot Monitor Sensor LH *4 Blind Spot Monitor Sensor RH

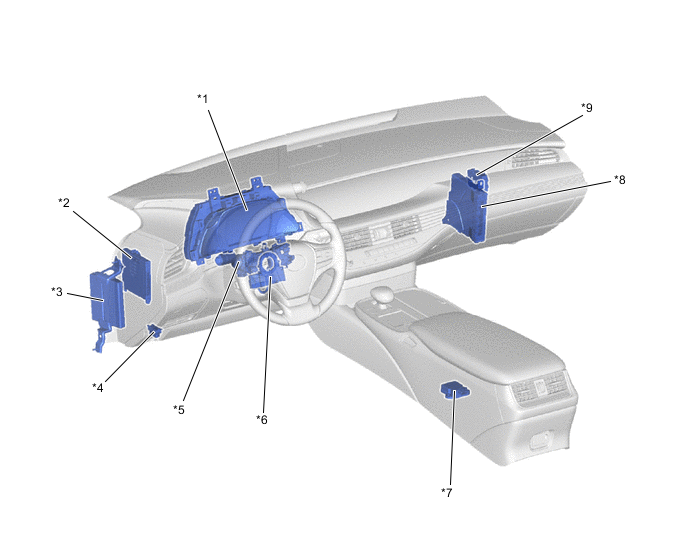

B003GVGC01
*1

Combination Meter Assembly


  • BSM Indicator

  • Multi-information Display

 *2 Main Body ECU (Multiplex Network Body ECU)
*3 Skid Control ECU Assembly *4 DLC3
*5 Turn Signal Switch *6 Steering Sensor
*7 Yawrate Sensor *8 Hybrid Vehicle Control ECU Assembly
*9 Central Gateway ECU (Network Gateway ECU) - -
