ACTIVE NOISE CONTROL SYSTEM

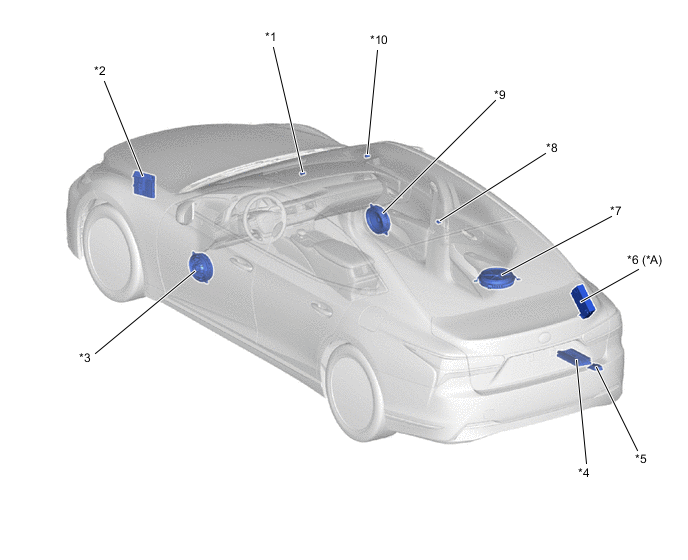

| *A | Models with Rear Seat Entertainment System | - | - |
| *1 | Active Noise Control Microphone (Front LH) | *2 | ECM |
| *3 | Front No. 1 Speaker Assembly (LH) | *4 | Stereo Component Amplifier Assembly |
| *5 | Stereo Component Equalizer Assembly | *6 | Multi-display Controller Sub-assembly |
| *7 | Rear No. 3 Speaker Assembly | *8 | Active Noise Control Microphone (Rear) |
| *9 | Front No. 1 Speaker Assembly (RH) | *10 | Active Noise Control Microphone (Front RH) |

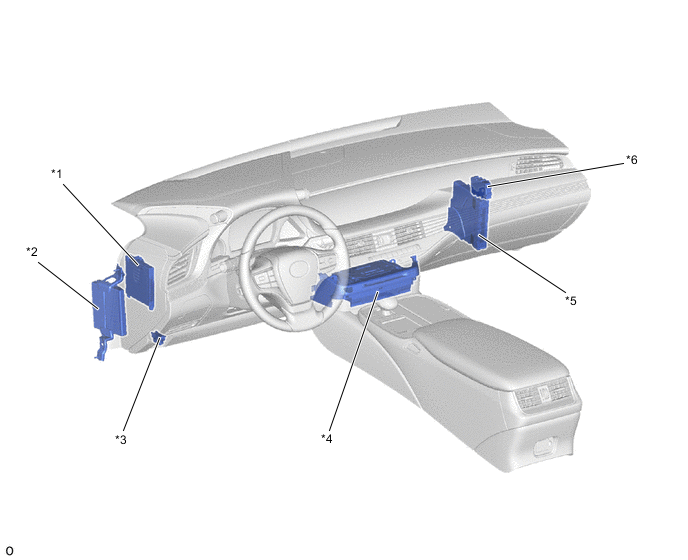

| *1 | Main Body ECU (Multiplex Network Body ECU) | *2 | Skid Control ECU Assembly |
| *3 | DLC3 | *4 | Radio Receiver Assembly |
| *5 | Hybrid Vehicle Control ECU Assembly | *6 | Central Gateway ECU (Network Gateway ECU) |
