REAR SEAT ENTERTAINMENT SYSTEM


  1. CONSTRUCTION


    1. Audio source selection, song/station selection, display setting and television display assembly angle adjustment can be performed on the audio operation screen of the rear multi operation panel.

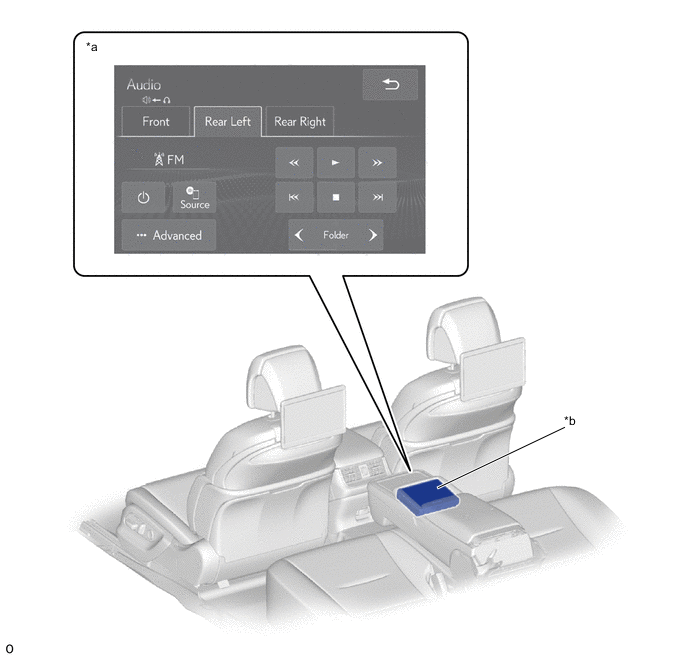

      B003H1KC02
      *a Rear Multi Operation Panel Display *b Rear Multi Operation Panel (Rear Power Seat Switch)

    2. "Font", "Rear Left" and "Rear Right" operation switches are located on the audio operation screen of the rear multi operation panel. The user can operate the front seat audio system by selecting "Front", the rear left display by selecting "Rear Left" and the rear right display by selecting "Rear Right".

    3. A television display assembly angle adjustment switch is positioned to allow the user to manually adjust the angle of the television display assemblies by operating the switch.
