LANE TRACING ASSIST SYSTEM

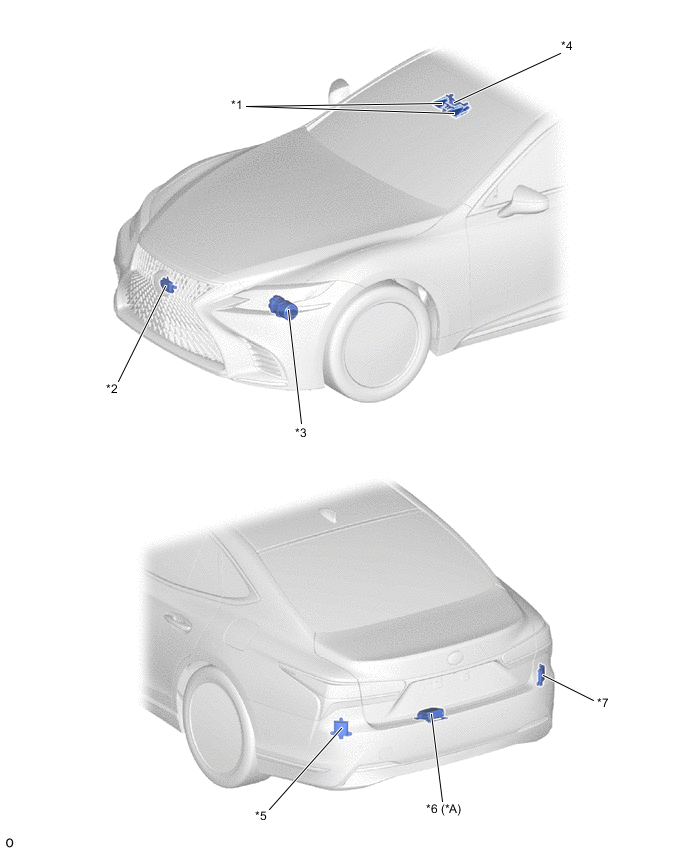

| *A | Models with DRS system | - | - |
| *1 | Camera Heater (Forward Recognition Hood with Heater Sub-assembly) | *2 | Millimeter Wave Radar Sensor Assembly |
| *3 | Power Steering ECU Assembly | *4 | Camera Sensor (Object Recognition Camera) |
| *5 | Blind Spot Monitor Sensor LH | *6 | RR Steering Control ECU |
| *7 | Blind Spot Monitor Sensor RH | - | - |

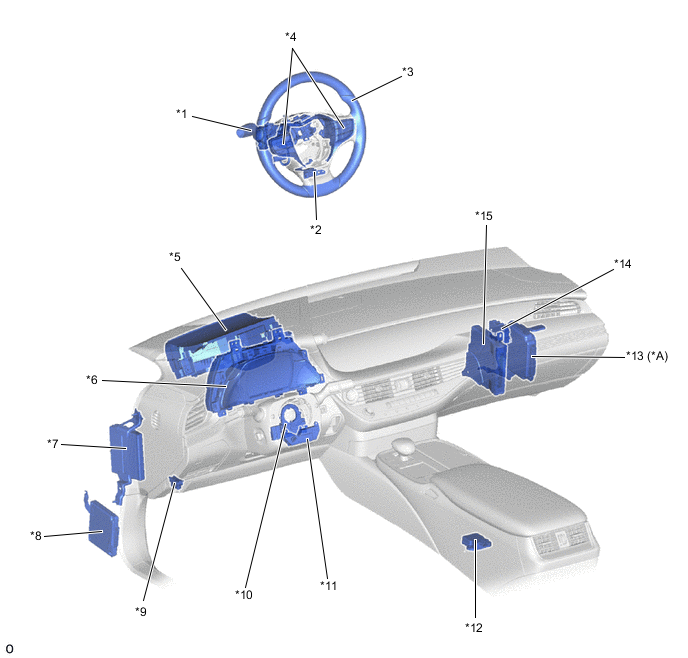

| *A | Models with VGRS system | - | - |
| *1 | Turn Signal Switch | *2 | Steering Wheel Motor |
| *3 | Steering Heater Wire | *4 | Steering Pad Switch Assembly
|
| *5 | Headup Display (Meter Mirror Sub-assembly) | *6 | Combination Meter Assembly
|
| *7 | Skid Control ECU Assembly | *8 | Driving Support ECU |
| *9 | DLC3 | *10 | Steering Sensor |
| *11 | Steering Vibration and Heater ECU | *12 | Yawrate Sensor |
| *13 | FR Steering Control ECU | *14 | Central Gateway ECU (Network Gateway ECU) |
| *15 | Hybrid Vehicle Control ECU Assembly | - | - |
