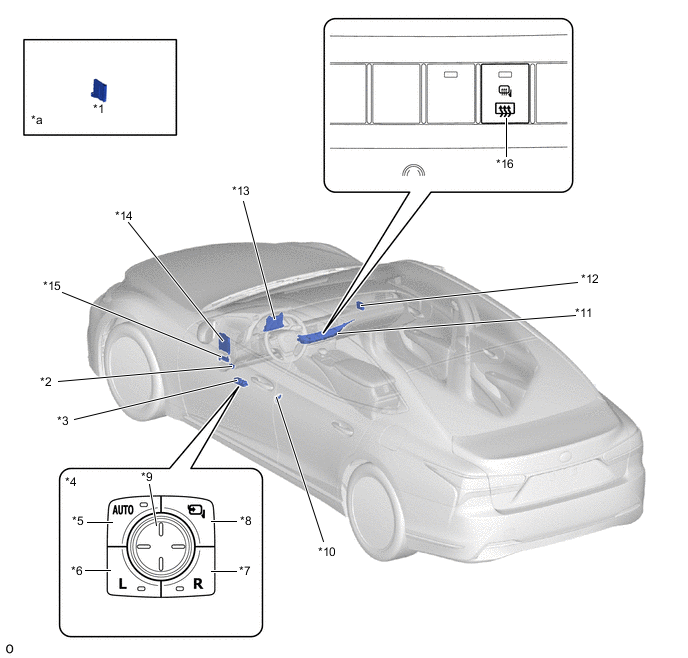

| *1 |
Certification ECU (Smart Key ECU Assembly) |
*2 |
DLC3 |
| *3 |
Multiplex Network Master Switch Assembly |
*4 |
Door Mirror Switch |
| *5 |
Auto Retract/Return Switch |
*6 |
Right/Left Selector Switch (Left) |
| *7 |
Right/Left Selector Switch (Right) |
*8 |
Retract/Return Switch |
| *9 |
Mirror Surface Angle Adjustment Switch |
*10 |
Front Door Courtesy Light Switch Assembly (LH) |
| *11 |
Air Conditioning Control Assembly |
*12 |
Central Gateway ECU (Network Gateway ECU) |
| *13 |
Air Conditioning Amplifier Assembly |
*14 |
Main Body ECU (Multiplex Network Body ECU) |
| *15 |
Seat Memory Switch |
*16 |
Rear Window Defogger and Mirror Heater Switch |
| *a |
Refer to the Service Bulletin for the installation position of the parts. |
- |
- |
