POWER WINDOW CONTROL SYSTEM

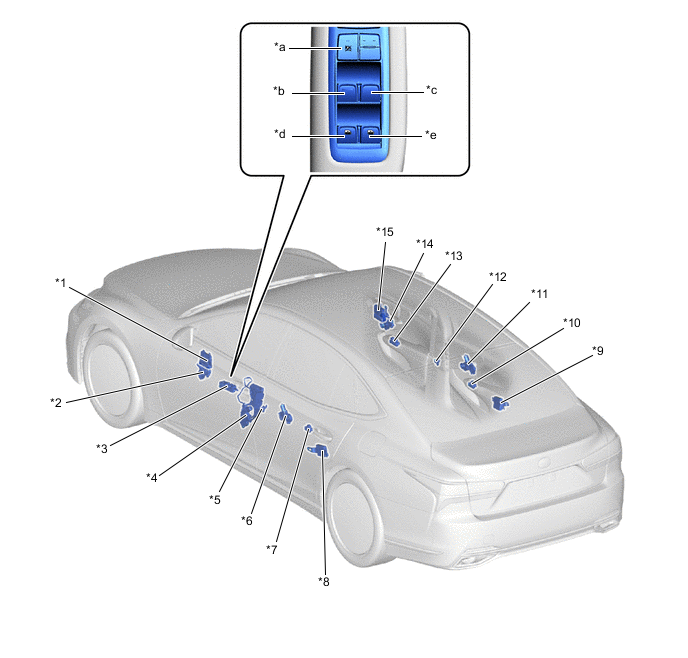

B0056GVC01
*1 Front Multiplex Network Door ECU LH *2

Power Window Regulator Motor Assembly LH


  • Power Window ECU

  • Power Window Motor
*3 Multiplex Network Master Switch Assembly *4

Front Door Lock with Motor Assembly LH


  • Door Lock Control Switch
*5 Front Door Courtesy Light Switch Assembly LH *6

Rear Power Window Regulator Motor Assembly LH


  • Power Window ECU

  • Power Window Motor
*7 Rear Power Window Regulator Switch Assembly LH *8 Rear Multiplex Network Door ECU LH
*9 Rear Multiplex Network Door ECU RH *10 Rear Power Window Regulator Switch Assembly RH
*11

Rear Power Window Regulator Motor Assembly RH


  • Power Window ECU

  • Power Window Motor

 *12 Front Door Courtesy Light Switch Assembly RH
*13 Front Power Window Regulator Switch Assembly RH *14

Front Power Window Regulator Motor Assembly RH


  • Power Window ECU

  • Power Window Motor
*15 Front Multiplex Network Door ECU RH - -
*a Window Lock Switch *b Power Window Switch (LH)
*c Remote Switch (RH) *d Remote Switch (Rear RH)
*e Remote Switch (Rear LH) - -

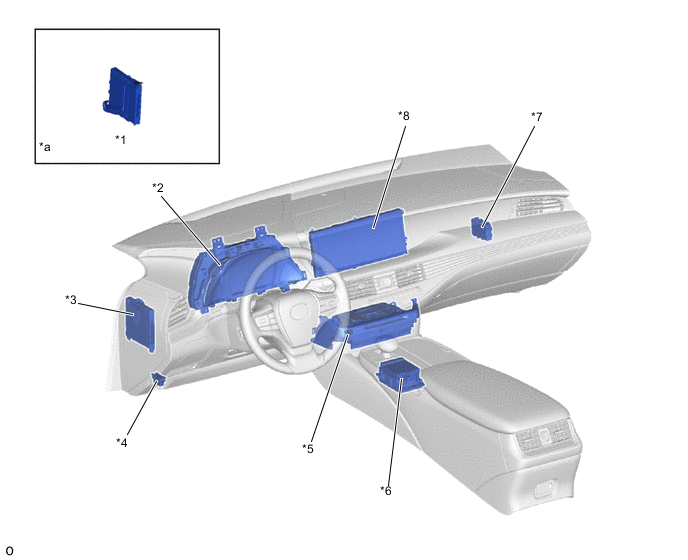

B00569KC01
*1 Certification ECU (Smart Key ECU Assembly) *2 Combination Meter Assembly
*3 Main Body ECU (Multiplex Network Body ECU) *4 DLC3
*5 Radio Receiver Assembly *6 Remote Touch (Remote Operation Controller Assembly)
*7 Central Gateway ECU (Network Gateway ECU) *8 Multi-display
*a Refer to the Service Bulletin for the installation of the part. - -
