SLIDING ROOF SYSTEM


  1. CONSTRUCTION


    1. The sliding roof drive gear sub-assembly is composed of a sliding roof motor, drive gear, sliding roof control ECU, etc.

    2. A resin belt is used for the drive cable to improve sliding performance, reducing sliding resistance and operation sounds. Also, torque transmission efficiency is improved, making it possible to reduce the motor torque and the size of the motor.

    3. The gear cover is combined with the rear housing and the drive gear is also combined with the worm wheel, achieving a simple structure.

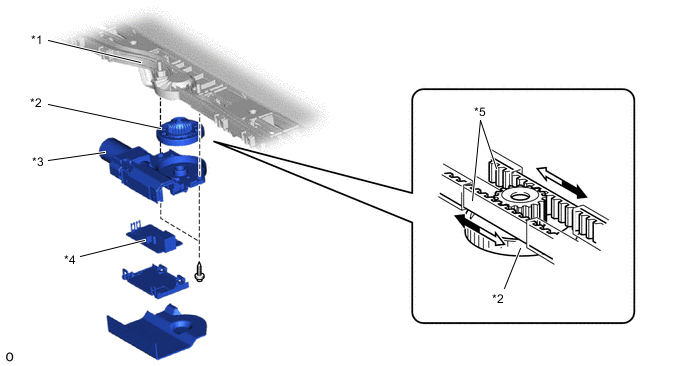

      B003IK4C01
      *1 Sliding Roof Housing *2 Drive Gear
      *3 Sliding Roof Motor *4 Sliding Roof Control ECU
      *5 Drive Cable - -
