SLIDING ROOF SYSTEM

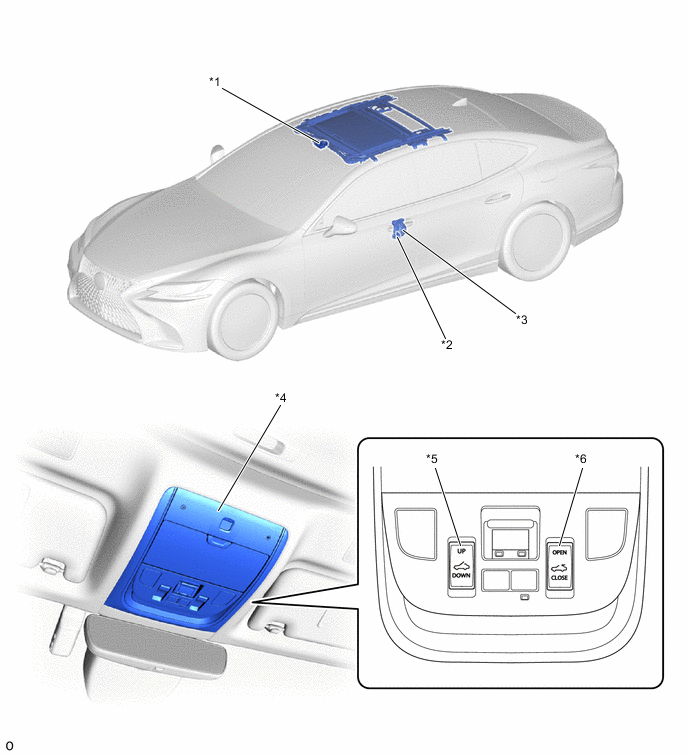

| *1 | Sliding Roof Drive Gear Sub-assembly
|
*2 | Front Door Courtesy Light Switch Assembly (LH) |
| *3 | Front Door Lock with Motor Assembly LH | *4 | Map Light Assembly |
| *5 | Tilt UP/DOWN Switch | *6 | Slide OPEN/CLOSE Switch |
| *A | Models with transmitter-linked operation | - | - |
| *1 | Combination Meter Assembly | *2 | Main Body ECU (Multiplex Network Body ECU) |
| *3 | Certification ECU (Smart Key ECU Assembly) | - | - |
| *a | Refer to the Service Bulletin for the installation position of the parts. | *b | The illustrations shown are examples only. |
