METER / GAUGE SYSTEM

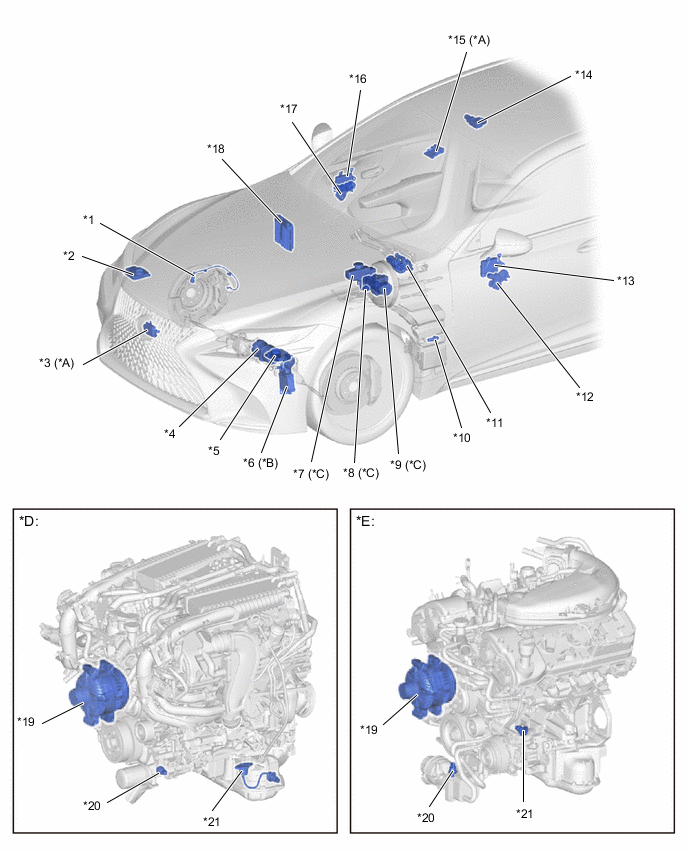

| *A | Models with Lexus Safety System + | *B | Models with Active Stabilizer Suspension System |
| *C | Models with Vacuum Brake Booster | *D | Models with V35A-FTS Engine |
| *E | Models with 8GR-FKS Engine | - | - |
| *1 | Front Pad Wear Indicator Wire Assembly RH | *2 | Headlight Light ECU Sub-assembly RH |
| *3 | Millimeter Wave Radar Sensor Assembly | *4 | Power Steering ECU |
| *5 | Headlight Light ECU Sub-assembly LH | *6 | Active Stabilizer Control ECU Assembly |
| *7 | Brake Master Cylinder Reservoir Assembly
|
*8 | Vacuum Warning Switch Assembly |
| *9 | Brake Actuator Assembly
|
*10 | Windshield Washer Jar Assembly
|
| *11 | Windshield Wiper ECU | *12 | Power Window Regulator Motor Assembly LH
|
| *13 | Front Multiplex Network Door ECU LH | *14 | Sliding Roof Drive Gear Sub-assembly
|
| *15 | Forward Recognition Camera | *16 | Front Multiplex Network Door ECU RH |
| *17 | Power Window Regulator Motor Assembly RH
|
*18 | ECM |
| *19 | Generator Assembly | *20 | Engine Oil Pressure Switch Assembly |
| *21 | Engine Oil Level Sensor | - | - |
| *A | Models for Europe, Australia, New Zealand and South Africa | - | - |
| *1 | No. 2 Fuel Sender Gauge Assembly | *2 | Rear Occupant Detection Sensor Center |
| *3 | Rear Door Window Regulator Assembly RH
|
*4 | Fuel Sender Gauge Assembly |
| *5 | Rear Occupant Detection Sensor LH | *6 | Rear Multiplex Network Door ECU LH |
| *7 | Rear Seat Belt Assembly Inner LH | *8 | Rear Seat Lap Type Belt Assembly Center RH |
| *9 | Rear Seat Belt Assembly Inner | *10 | Pad Wear Indicator Wire Assembly RH |
| *11 | Rear Occupant Detection Sensor RH | *12 | Rear Multiplex Network Door ECU RH |
| *13 | Rear Door Window Regulator Assembly RH
|
- | - |

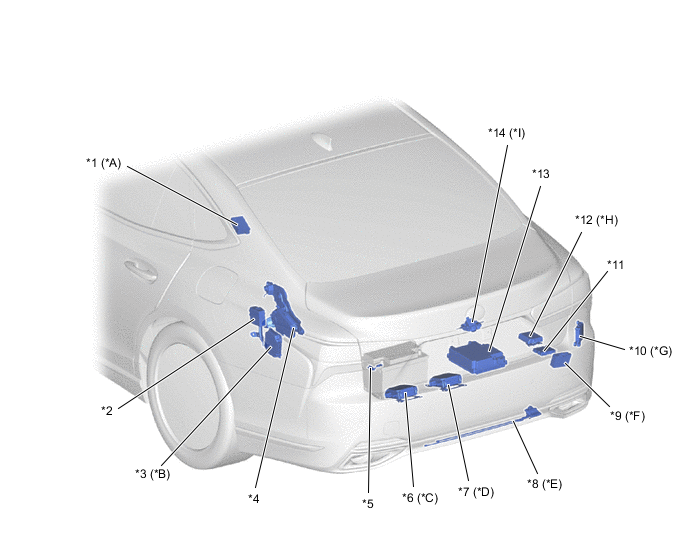

| *A | Models with Separated Type Door Control Receiver | *B | Models with Adaptive Variable Suspension System (AVS) |
| *C | Models with Active Stabilizer Suspension System | *D | Models with Dynamic Rear Steering (DRS) System |
| *E | Models with Hands Free Power Trunk Lid | *F | Models with Integrated Type Door Control Receiver |
| *G | Models with Blind Spot Monitor System | *H | Models with Air Suspension System |
| *I | Models with Panoramic View Monitor System | - | - |
| *1 | Tire Pressure Warning ECU and Receiver (Tire Pressure Monitor Receiver Assembly) | *2 | Parking Brake ECU Assembly |
| *3 | Absorber Control ECU | *4 | Luggage Closer Motor Assembly
|
| *5 | Battery State Sensor Assembly | *6 | Rear Active Stabilizer Control ECU Assembly |
| *7 | RR Steering Control ECU | *8 | Kick Door Control Sensor |
| *9 | Tire Pressure Warning ECU and Receiver (Electrical Key and TPMS Receiver Assembly) | *10 | Blind Spot Monitor Sensor RH |
| *11 | Clearance Warning ECU Assembly | *12 | Suspension Control ECU |
| *13 | Sub-battery Module Assembly
|
*14 | Television Camera Assembly |

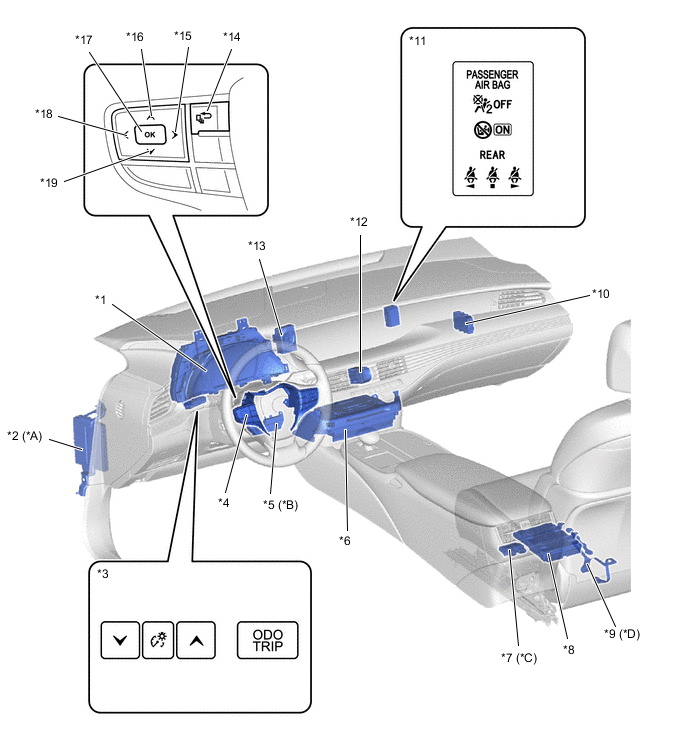

| *A | Models with Electronically Controlled Brake System | *B | Models with Lexus Safety System + |
| *C | Models for Korea | *D | Except models for Korea |
| *1 | Combination Meter Assembly | *2 | Skid Control ECU Assembly |
| *3 | Trip Switch
|
*4 | Steering Pad Switch Assembly |
| *5 | Steering Vibration and Heater ECU | *6 | Radio Receiver Assembly |
| *7 | Occupant Detection ECU | *8 | No. 2 Position Control ECU Assembly |
| *9 | Occupant Detection Sensor | *10 | Central Gateway ECU (Network Gateway ECU) |
| *11 | Telltale Light Assembly
|
*12 | Hazard Warning Signal Switch Assembly |
| *13 | Clock Assembly | *14 | Back Switch |
| *15 | Right Switch | *16 | Up Switch |
| *17 | Enter Switch | *18 | Left Switch |
| *19 | Down Switch | - | - |

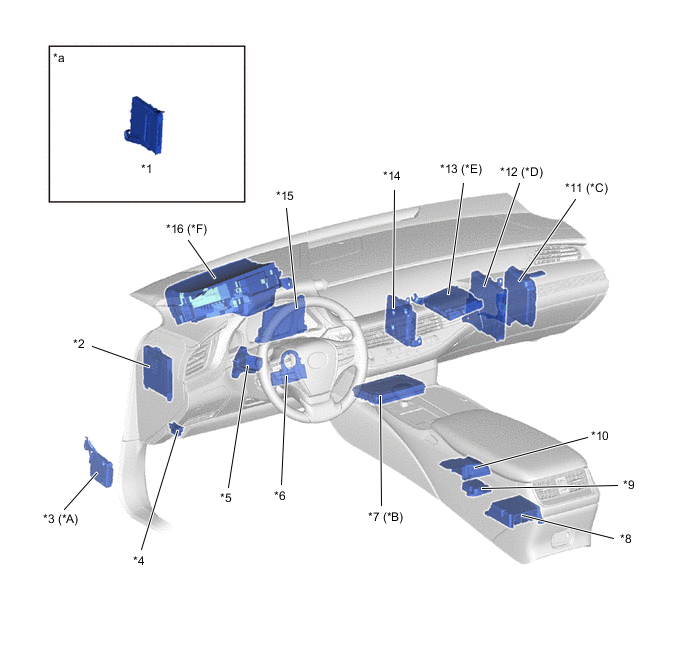

| *A | Models with Lexus Safety System + | *B | Models with Navigation System |
| *C | Models with Variable Gear Ratio Steering (VGRS) System | *D | Models with Stop and Start System |
| *E | Models for China | *F | Models with Headup Display |
| *1 | Certification ECU (Smart Key ECU Assembly) | *2 | Main Body ECU (Multiplex Network Body ECU) |
| *3 | Driving Support ECU Assembly | *4 | DLC3 |
| *5 | Steering Lock Actuator Assembly
|
*6 | Steering Sensor |
| *7 | Navigation ECU | *8 | Airbag ECU Assembly |
| *9 | Yawrate Sensor | *10 | Pedestrian Detection ECU Assembly |
| *11 | FR Steering Control ECU | *12 | Engine Stop and Start ECU |
| *13 | DCM (Telematics Transceiver) | *14 | Shift Control ECU |
| *15 | Air Conditioning Amplifier Assembly | *16 | Headup Display (Meter Mirror Sub-assembly) |
| *a | Refer to the Service Bulletin for the installation position of the parts. | - | - |
