METER / GAUGE SYSTEM

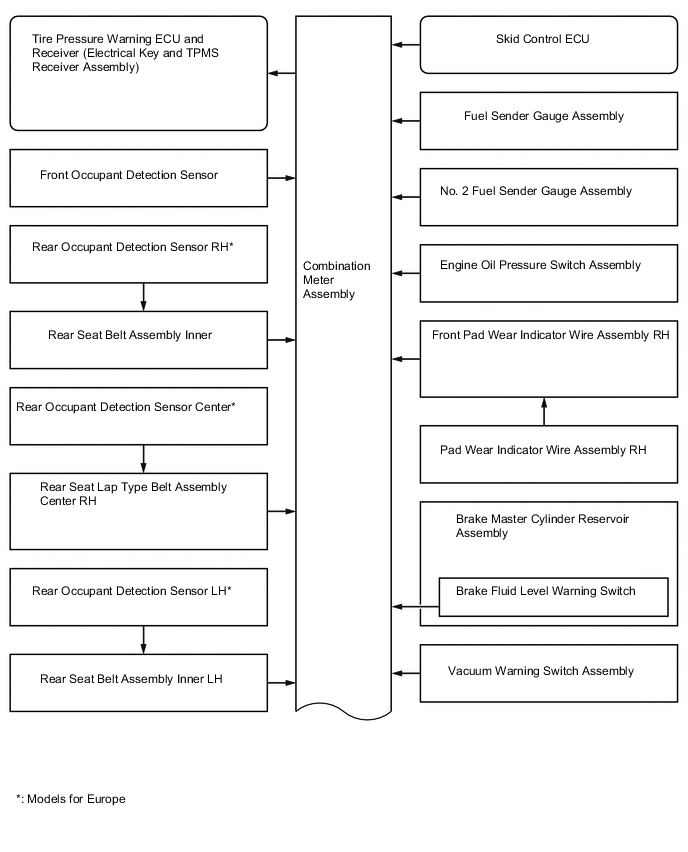

Figure 1. Direct Line Signal 1
Figure 2. Direct Line Signal 2

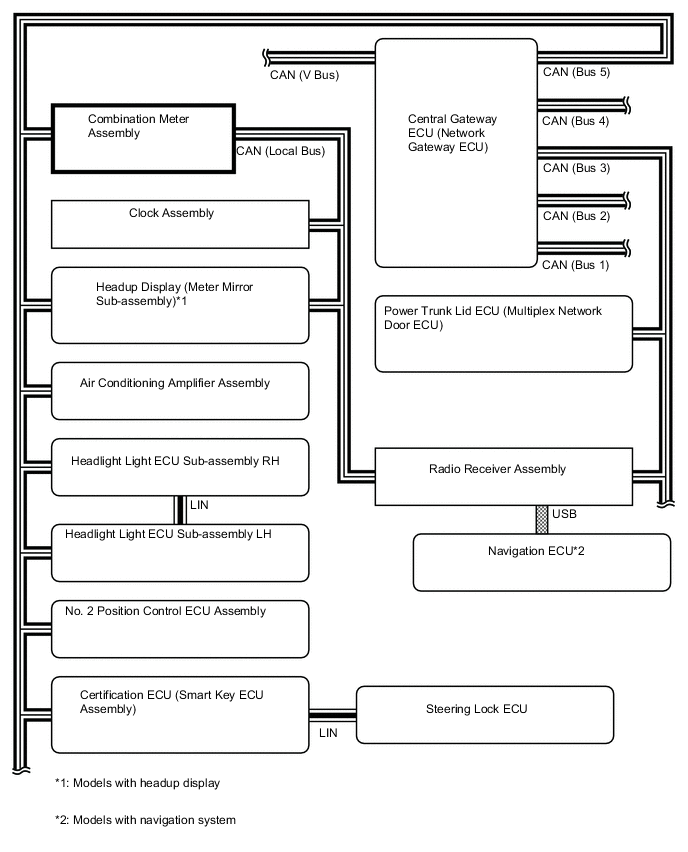

Figure 3. CAN Communication Signal 1

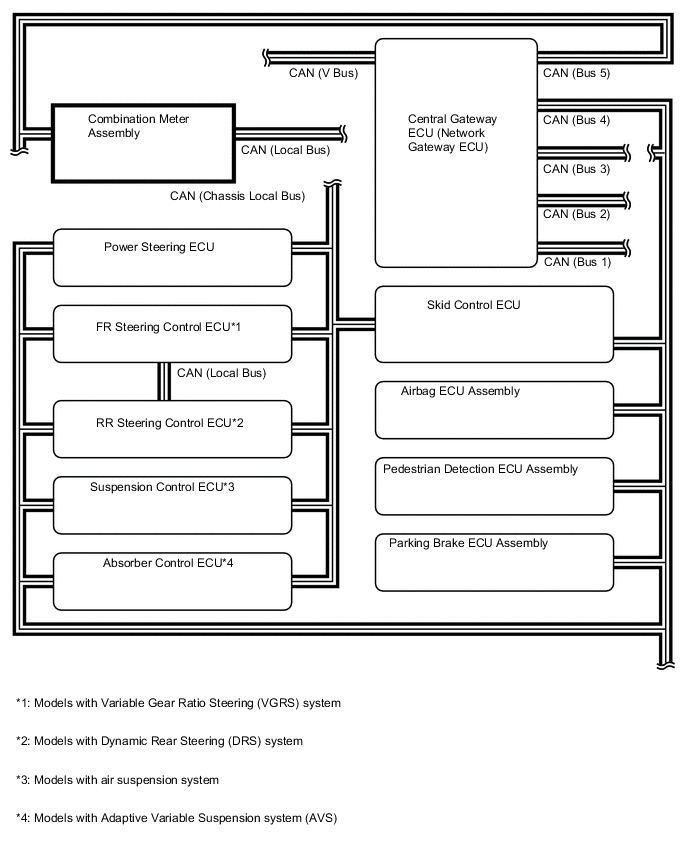

Figure 4. CAN Communication Signal 2

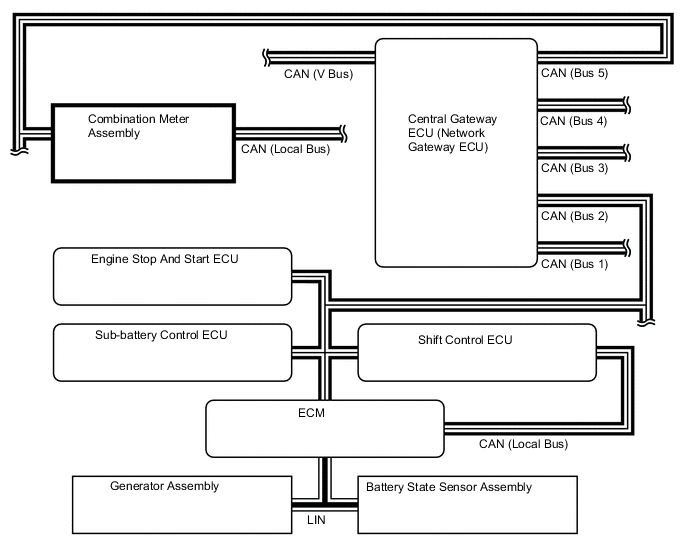

Figure 5. CAN Communication Signal 3-1
Figure 6. CAN Communication Signal 3-2

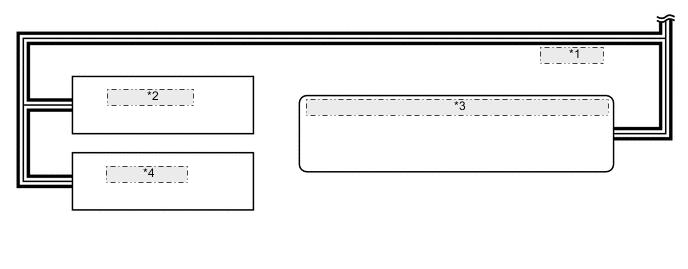

| *1 | CAN (Bus 4) |
| *2 | Steering Sensor |
| *3 | Tire Pressure Warning ECU and Receiver (Electrical Key and TPMS Receiver Assembly) |
| *4 | Yawrate Sensor |
Figure 7. CAN Communication Signal 4-1
Figure 8. CAN Communication Signal 4-2
